Vehicle Access Controlled Automatic Parking Lot Gates With Boom
Length 6m
Function and features:
1) Manual release
2) Machine core with compression spring, effectively avoids the
accidents caused by spring breaking
3) Die-casting aluminum alloy motor, precision and good at thermal
radiating
4) Motor cooling fan, solving the problem of heat-protection
5) Double safety limit switches (photocell electrical limit
switch/motor memory sensor)
6) Reversing on obstacle
7) Auto-closing
8) Support the INFRARER PHTOCELL for anti-bumping function
(optional)
9) Support the external and internal VEHICLE LOOP DETECTOR
(optional)
10) Traffic light interface
11) Wire control (switch signal)/ Remote control (418MHZ)
12) RS485 communication module (optional)
Product parameters:
| Modle number | DZ-132 |
| Size | 1000*352*302mm |
| Remote control distance | ≥30m |
| Motor Rational Speed | 1400rmp |
| Boom Length (Max) | 6M |
| Relative humidity | ≥90% |
| Protection grade | IP44 |
| Operating Temperature | -45°C to 75°C |
| Boom Type | Straight arm: Mar 1- 6 meters optional, size 45×100mm aluminum
alloy. Folding arm: 90°folding arm / 180°folding arm, aluminum alloy Fence arm: Two or three fence arm, Mar1- 6 meters, aluminum alloy |
| Advantages | 1. quick delivery time, 3-5 days for 50 sets after received advance
deposite 2. 7 years OEM/ODM experience 3. quick response for handling problems |
Product photograph:

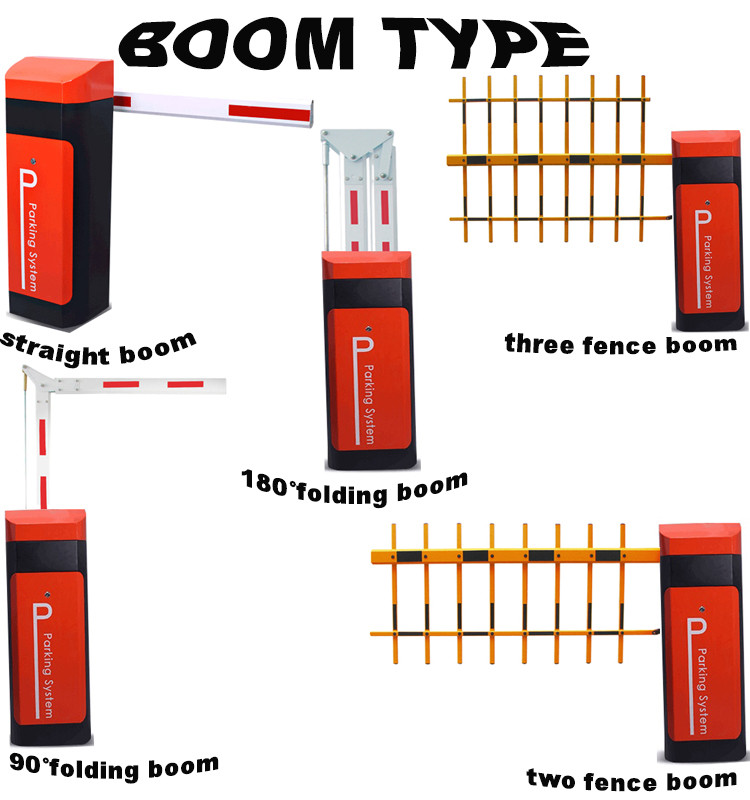

Boom you can choose:
Service item:
1.One year's free servicing is supplied(not including the arm);
2.Lifetime charged servicing is offered;
3.Technology servicing is supplied;
The following situations are charged for servicing(or changing);
1. Broken by wrong installation
2. Broken by improper voltage
3. The surfaces of the system destroyed by wrong installation or
use
4. Broken by natural disaster
5. Overdue
6. Servicing items out of our promises
