PD -132 Black Smart Parking Vehicle Loop Detector 100ms Reaction time

Ask Lasest Price
Brand Name :	WONSUN
Model Number :	PD-132 Vehicle Loop Detector
Certification :	CE, ISO, SGS
Price :	negotiation
Payment Terms :	T/T,Western Union,Money Gram, Trade Assurance,Paypal etc.,
Supply Ability :	1000 Sets/Month
Delivery Time :	3-7 working days after received your payment

Add to Cart

Product Details
Company Profile

PD -132 Black Smart Parking Vehicle Loop Detector 100ms Reaction time

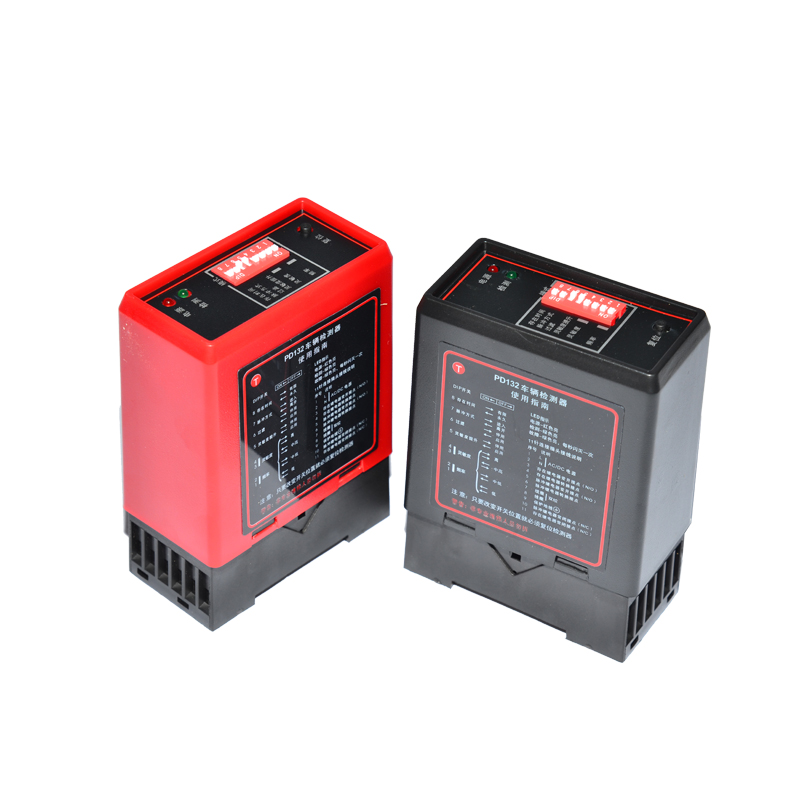

Smart Parking Vehicle Loop Detector PD-132 Black Loop Detector

Application Scope:

♦ Parking lot entrances vehicle detection
♦ Parking lot space information acquisition system
♦ Electronic police traffic lights snap shot system
♦ Traffic monitoring system

Main Features:

♦ Industrial engineering design concept
♦ Standard industrial guide installation
♦ Strong anti-jamming ability and stability
♦ Variety of output interface adapted to different scene
♦ Variety of shape choice meet differentiation demand
♦ High temperature stability
♦ Environment drift automatic compensation function
♦ Coil automatic fault detection function

♦ When the DIP switch is on position or changing the presence output time, Self-detection would be done

♦ ABS align to the pillar which can combine with each other compactly
♦ Presence output time can be adjustable
♦ Work mode can be set by the DIP switch
♦ Pulse output or permanent output can be adjustable

Work Indicator

Detector will enter into the self-calibration condition with the green LED flash, red LED extinguish once on power, this procession will last 1 second. .the vehicle should not on the loops within the self-calibration. The green LED will not flash, he red LED extinguish after self-calibration. When the vehicle past over the loop ,the red LED on.

DIP SWITCH and Wire Jumper

DIP1, 2 setting the sensitivity;set the presence output time of relay 1 by DIP3;set the relay2 as presence/pulse output by DIP4; the output time of presence signal set by DIP5;DIP6set the frequency; jumper wire connect to the open end, PIN16 connect to the NO of relay 1. Jumper wire connect to the close end, PIN16 connect to the NC of relay 1.

Work Frequency

User can change the loop's work frequency which can avoid the cross talk by the adjacent loop or environment frequency. It offers two styles frequency, set by DIP6

Sensitivity Adjustable

The DIP1,DIP2 on the front panel can adjust the sensitivity. If the vehicle has not any response when test it, the sensitivity should be improved

Technical Data

Supply voltage AC	220V, 110V, 24V, 12V
Supply voltage DC	24V, 12V
Sensitivity	Adjustable in 3 Increments (high .medium. low)
Operating Temperature	-20°C to +65°C
Storage temperature	-40°C to +85°C
Frequency Range	20 kHz to 170 kHz
Reaction Time	100ms
Loop inductance	Ideal: 80μH to 300μH (incl. conn. wiring): max: 50μH to500μH
Loop connection	<5m optimal
Loop connection wiring	Maximum length 200 meters Twisted at least 20 times per meter
Dimensions	35x74x85 mm (WxHxL)
Net Weight	300g
