Bluetooth RFID Car Parking Barriers Roadway Barrier Gate System
Keywords: barrier gate, barrier gates, barrier gate price, parking barrier
gate,automatic barrier gate,automatic barrier gate with single
bar,automatic barrier price,barrier gate remote control,boom
barrier, boom arm gate barrier, boom barrier gate,parking barrier
automatic, barrier road gate, barrier arm.traffic barrier gate,
barrier system,fence barrier gate.
Technical Specifications:
| Product Name | bluetooth RFID car parking barriers roadway barrier agte system |
| Voltage | AC220V/110V,50/60HZ |
| Power Supply | 100W |
| Operation Time | 1.8s/3s/6s |
| Arm Type | sraight arm,fence arm,folding arm |
| Arm length | 1m to 6m |
| Remote Control Distance | ≥30m |
| Relative Humidity | ≥90% |
| Working Temperature | -40℃～+75℃ |
| Net Weight | 56kgs |
| MCBF | ≥5000000times |

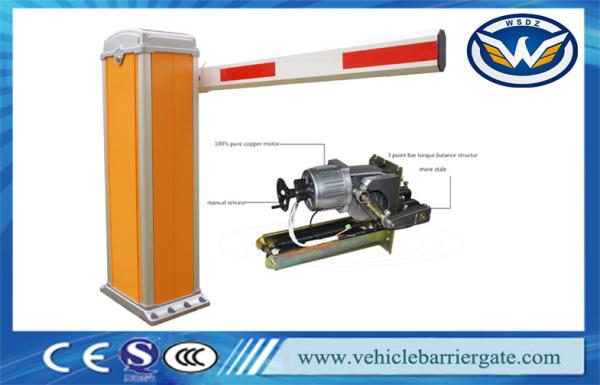

Car Parking Barrier Features:
1.Manual release available if meet power failure
2.Machine core with compression spring, effectively avoids the
accidents caused by spring breaking
3.Die-casting aluminum alloy motor, precision and good for thermal
radiating
4.Motor cooling fan, solving the problem of heat-protection
5.Double safety limit switches (photoelectricity limit switch/motor
memory sensor)
6.Reversing on obstacle
7.Traffic light interface
8.Wire control (switch signal) / Remote control
9.RS485 communication module (optional)
10.Support the Infrared Photocell for anti-bumping function
(optional)
11.Support the Loop Detector for auto-closing & anti-bumping
(optional)
Parking List:
| No. | Name | Quantity |
| 1 | Car Parking Barriers | 1 |
| 2 | Barrier Arm | 1 |
| 3 | Arm Splint | 1 |
| 4 | Arm Fixing Bolts | 4 |
| 5 | Controller | 1 |
| 6 | Remote Controller | 2 |
| 7 | Hilti Bolt | 4 |
| 8 | Key | 2 |
| 9 | Specification | 1 |
Shipment&Payment:
FAQ:
1) Connected power and press open/close button but barrier no
action?
| No. | Reason | Solution |
| 1 | Fuse blown | Check fuse and power in controller |
| 2 | Battery of remote control powered off | Change a new one |
| 3 | External protection circuit break or at protecting status | Open the barrier door and click OPEN/CLOSE button on control box |
| 4 | Same frequency interference | Check photocell and loop detector
|
2) Connected power and press open/close button, barrier will move
but even when it is at right position, the motor still running and
not stop?
| No. | Reason | Solution |
| 1 | Limit switch | Adjust the horizontal/vertical limit switch to correct position |
| 2 | Main controller failure | Change a new one |
3) Motor running but barrier arm no action?
| No. | Reason | Solution |
| 1 | Barrier arm at 45° position where is hard to move | Unlock clutch and manually rotate arm to horizontal or vertical
position then try again |
| 2 | Tension of balancing spring not suitable | Adjust spring exactly |
| 3 | Low working voltage | Check the voltage and power
|
4) When opening/closing, barrier arm cannot reach right position
(90° vertical & 180° horizontal)?
| No. | Reason | Solution |
| 1 | Length adjustment of connecting rod not correct | Open barrier door and unlock clutch to check when arm at 90°
vertical position if the master rod covers slave one; when arm at
180° horizontal position if master rod and slave one are in the
same straight line |
| 2 | Nuts on the limit switch loose | Tighten the nuts when arm at 90° vertical and 180° horizontal
position
|
