| Name | 6S High Speed Barrier Automatic Boom Barrier For Parking Lot System |
| Model | WSTP-115 |
| Size | 350*280*920mm |
| Rating Voltage | AC 220/110V ±10%, 50/60Hz |
| Color | yellow,orange,blue,red,black,customized |
| Motor Power | 80w |
| Speed Option | 0.6s,1s1.8s; 3s; 6s |
| Material | 2.0mm galvanized plate or cold roll plate with epoxy paint |
| Weight | 55 KG |
| Operation Testing | More than 5 million times |

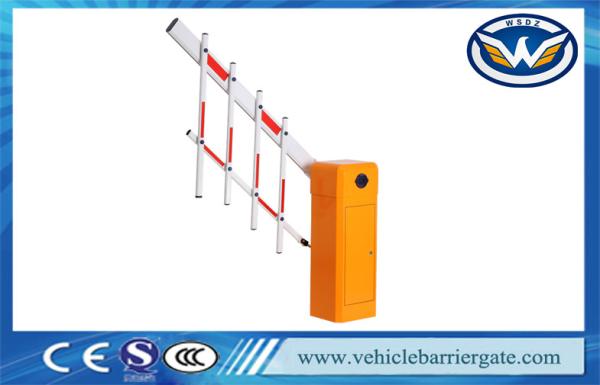

| Arm Option | Straight arm, 1-6 m for option, 45*80mm or 45*100mm Folding arm, 1-4.5 m for option, 90 degree or 180 degree Fence arm, 1-5m for option, two fence or three fence |
| Working Temperature | -45°C — +75°C |
| Remote Control Distance | Less than 30m |
| Application | Suitable for Highway, toll station, open-parking ground,
underground parking, community,shopping center |
Functions&Features
1. Manual release device to operate the barrier when power failure
2. Barrier motor with die-casting aluminum alloy is high-hermetic
and easy for heat dissipation
3. Motor cooling fan to avoid the over-heating possibility
4. Automatic reversing when the barrier boom meets the obstruction
5. Auto closing realization through menu setting on the control
panel
6. The barrier works well with infrared photocells, loop detectors,
card readers, ticket dispensers, manual switch (wire control), and
traffic light
7. RS485 Communication Module is compatible
8. Traffic light interface
9. Infrared Photocells (optional)
10. Support the external and internal Vehicle Loop Detector
(optional)
Packing&Shiping
use strong carton case with air bubble filled inside to protect
products and save your cost.
shipped in 3-7days after payment
Packing List
| Items | quantity | items | quantity |
| Paint-coated case | 1 | motor | 1 |
| Transmission | 1 | limit switch | 1 |
| Barrier arm | 1 | capacitor | 1 |
| Spring | 1 | circuit board | 1 |
| Remote control device | 2 | console control device | 1 |
| Installation kit | 1 | | |
FAQ
Q: What's the order process?
A: Follow the steps on below to complete your order.
- 1. Inquiry
Provide us detailed information about your requirement, and we'll
recommend the suitable products according to your request
-2. Quotation
Official quotation form with all clear specifications according to
the order
-3. Invoice
Invoice will be issued once the quotation is confirmed.
-4. Payment
Payment shall be issued once the invoice issued. Full payment is
acquired.
-5. Production
Bulk production shall be taking 15-25 working days.
-6. Delivery
by sea, air or courier. Detailed picture of package will be
provided upon the service you've chosen. Packaging info will be
sent upon confirmation.
Q: Do you provide samples ?
A: Yes, we could offer quoted price sample for you within 1-2
working days after payment confirmed.
Q: What is your terms of payment ?
T/T,Payapl, Western union
Our Service
1. One year free service is supplied(not including the arm)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customized machine case, color, logo for you, which
accroding to your detailed requirements.
5. Technical support and aftersales service, it is a long term
relatioship between us.
6. Price can be negotiable when you have big order quantity.
