Single Fence Parking Boom Barriers Intelligent Barrier Car Parking
System
Why WONSUN Intelligent Barrier?
1. Lifetime warranty motor, other parts are one year warranty.
2. Lifetime charged service.
3. OEM/ODM: Customized service accroding to your requirements.
4. Technical support and nice after-sales service.
5. Provide one-stop solution.
6. provides timely email, phone and onsite support.
Technical details:
| PARTICULARS | DESCRIPTION |
| Application | Outdoor |
| Drive | Block continues torque motor |
| Version | Left handed or Right Handed |
| Logic Control | Included |
| Intelligence | The use of block able torque motor drive with continue torque
output and the microprocessor based controller eliminates the need
of friction clutches to continue maintenance free operation. |
| Power Supply | 2 2 0/1 1 0 + /- 1 0 % V A C , 5 0 /60 H z |
| Colour | Different & Distinct colour pattern as decided by owner. |
| Boom Specification | Length (3, 4, 5, 6 Mtrs) straight or articulated extruded aluminum
alloy. |
| Housing Dimension | W330mm, D300mm, H950mm |
| Protection | All housing and internal parts will be rust & corrosion free metals
or alloys of high strength. |
| Opening & closing time | 0.6s sec ,0.8 sec , 1 sec , 1.8 sec , 3 sec, 6 sec. |
| Power off | Manual opening possible |
| Safety | Loop detectors /infrared sensors to be used to prevent barriers
from closing on the vehicle. |
| Duty cycle | 100% |
| Integration | Capable of integration with all the surveillance and access control
systems. |
| MTBF | 5 million cycle |
| Certification | CE Confirm |
| Material of construction | Carbon Steel with power coated finish and the housing top cover is
made out of high impact engg. Plastic with customizable SS Sheet. |
| Operating temperature | - 25 ºC to + 7 5 |
Functions&Features:

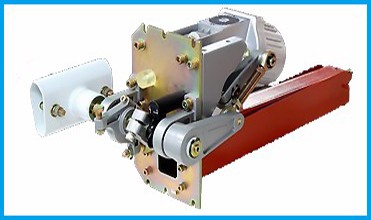

AC MOTOR-The Drive Unit1 For alternating current, does not require limit switches nor a
friction clutch, and maintenance-free
2 Machine core can automatically warming when the outside
temperature is below 0
3 Die-casting aluminum alloy machine core and advanced double-stage
driving motor, solve the problem of block up
4 Motor cooling: Forced ventilation with fan  |

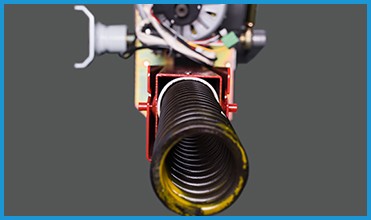

Compressed Balance Spring Barrier gate arm weight is counter-balanced via a adjusted
compression spring, avoid accidents caused by tension spring
|

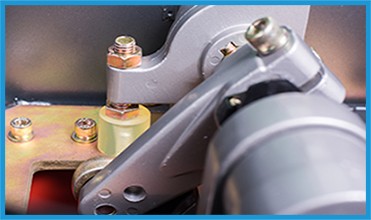

Liberate Cushion Absorb vibration during the beam rises and falls, which keeps
barrier run smoothly and reduce the impact on mechanism core  |

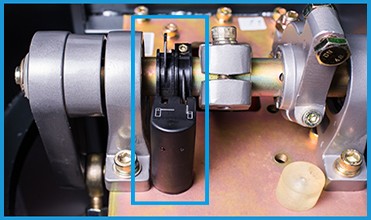

Photoelectronic Limit Switch Multiple protection mechanism: photoelectric limit, motor sensor
memory limit, loop detector, air pressure wave switch, infrared
photocell ensure the barrier gate operate accurately and safely
|
 |
