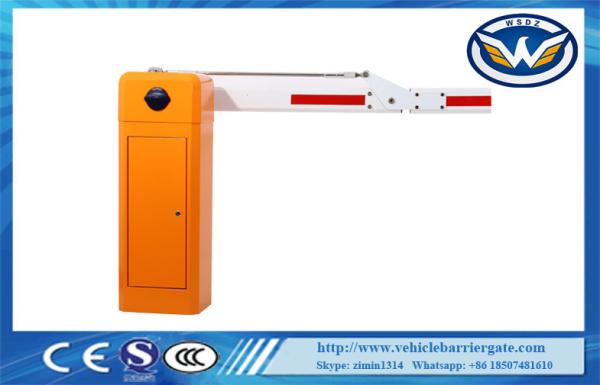

Factory OEM Parking Boom Gate Swing Out Arm Toll Barrier Gate
Quick Details:
1. Lifetime warranty motor, other parts are one year warranty.
2. Lifetime charged service.
3. OEM/ODM: Customized service accroding to your requirements.
4. Technical support and nice after-sales service.
5. Provide one-stop solution.
6. provides timely email, phone and onsite support.
Technical details:
| PARTICULARS | DESCRIPTION |
| Version | Left handed or Right Handed |
| Logic Control | Included |
| Power Supply | 2 2 0/1 1 0 + /- 1 0 % V A C , 5 0 /60 H z |
| Housing Dimension | W380mm, D290mm, H1020mm |
| Opening & closing time | 0.6s sec ,0.8 sec , 1 sec , 1.8 sec , 3 sec, 6 sec. |
| Power off | Manual opening possible |
| Safety | Loop detectors /infrared sensors to be used to prevent barriers
from closing on the vehicle. |
| Duty cycle | 100% |
| Integration | Capable of integration with all the surveillance and access control
systems. |
| MTBF | 5 million cycle |
| Certification | CE Confirm |
| Material of construction | Carbon Steel with power coated finish and the housing top cover is
made out of high impact engg. Plastic with customizable SS Sheet. |
| Operating temperature | - 25 ºC to + 7 5 |
Toll Barrier Gate Advantages:
1) Manual release
2) Machine core with compression spring, effectively avoids the
accidents caused by spring breaking
3) Die-casting aluminum alloy motor, precision and good at thermal
radiating
4) Motor cooling fan, solving the problem of heat-protection
5) Double safety limit switches (photocell electrical limit
switch/motor memory sensor)
6) Reversing on obstacle
7) Auto-closing
8) Support the INFRARER PHTOCELL for anti-bumping function
(optional)
9) Support the external and internal VEHICLE LOOP DETECTOR
(optional)
10) Traffic light interface
11) Wire control (switch signal)/ Remote control (418MHZ)
12) RS485 communication module (optional)

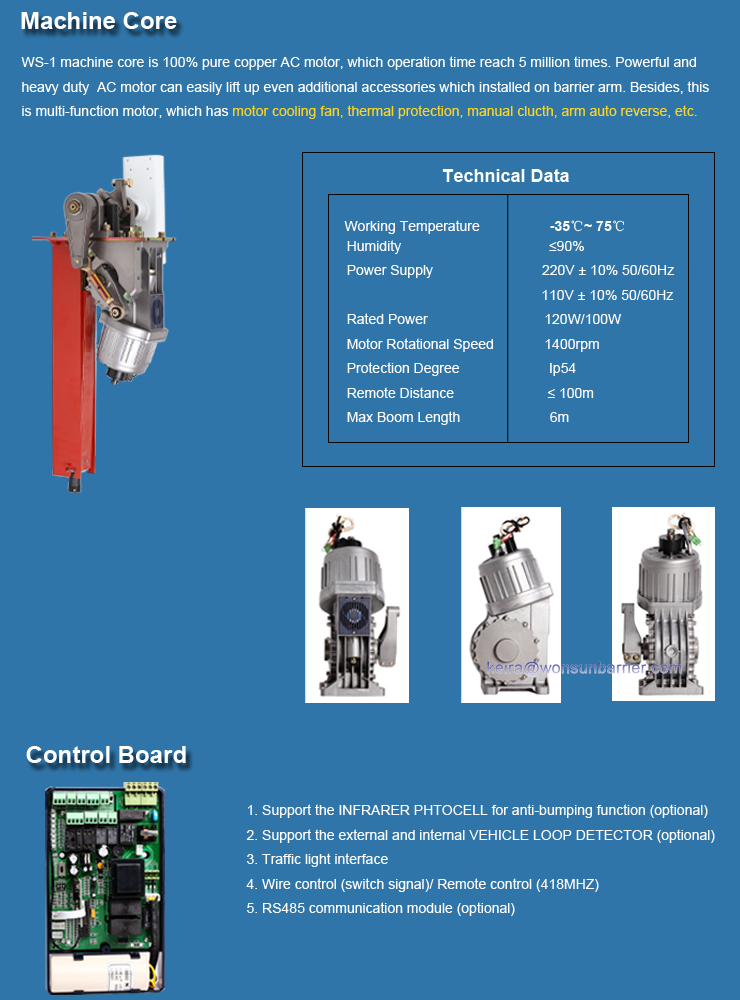

Toll Barrier Gate Machine Core & Control Panel Specifications:
Related Products: Click below picture
FAQ:
1. Are you manufacturer or trade company?
We're professional manufacturer who has our own factory in Shenzhen
Pingshan since 2007.
2. What is your MOQ?
As for usual order, there is no MOQ; For OEM order, at least 30
sets.
3. What is your delivery time?
As for usual order, it is 3-5 days after received your payment with
50 sets order quantity.
For OEM order, it is 7-15 days after receieved your payment with 30
sets order quantity.
4. What is the terms of payment?
30%-40% advance deposite, 60%-70% balance before shipment for large
quantity.
5. Contact information:
If any question, please contact Keira freely!
Email: keira@wonsunbarroer.com
Skype: zimin1314
Whatsapp: +86 18507481610
