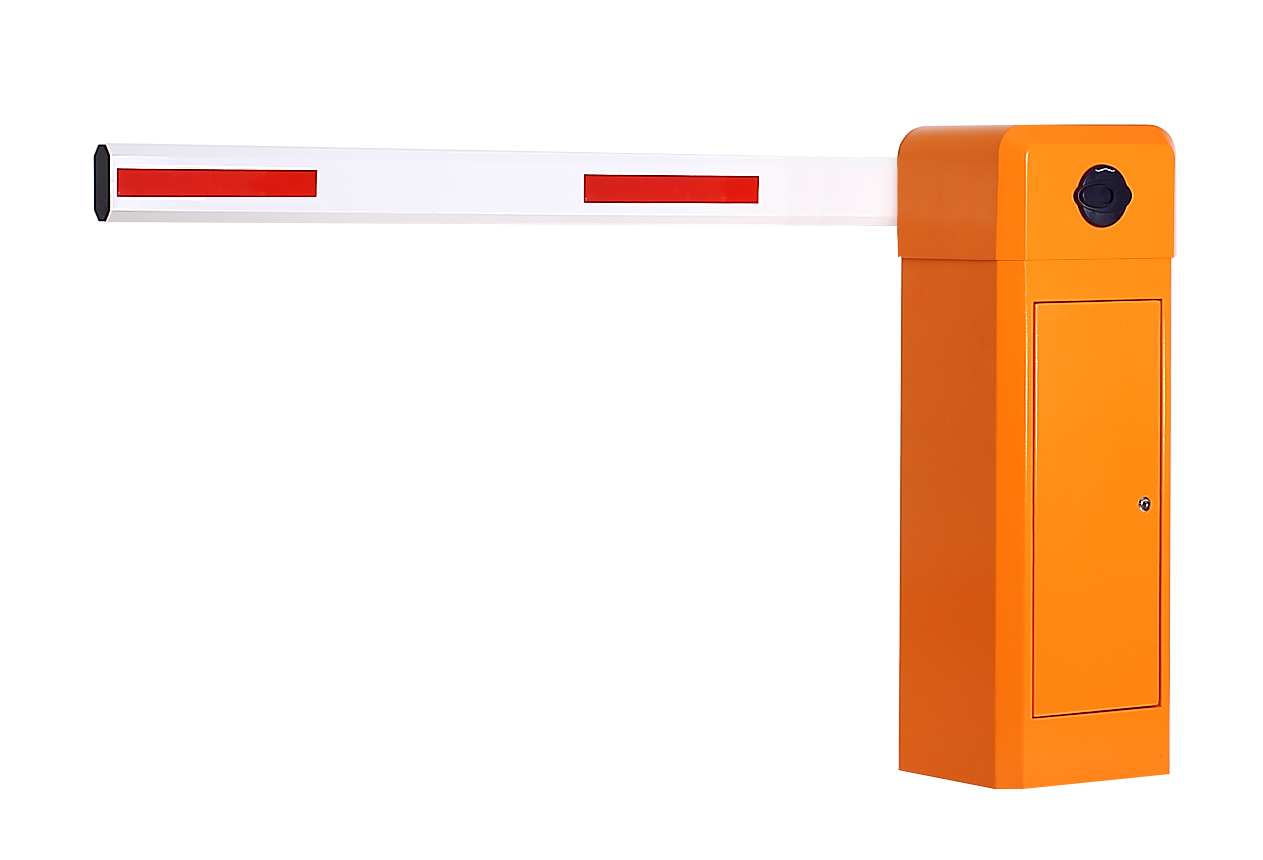

Cold Rolled Steel 2mm Traffic Barrier Gate With LED Rubber Boom
Quick Detail:
| Name | Cold Rolled Steel 2mm Traffic Barrier Gate With LED Rubber Boom | Application | Highway toll,Parking lot, |
| Speed | 0.6s,0.8s,1s,1.8s,3s,6s | Feature | Manual release |
| Rated Power | 80W | Certificate | CE, ISO, SGS |
| Net Weight | 60KG | Voltage | AC220V, AC110V |
Functions And Features
A.The barrier works well with infrared photocells, loop detectors,
card readers, ticket dispensers, manual switch (wire control), and
traffic light
B.Barrier motor with die-casting aluminum alloy is high-hermetic
and easy for heat dissipation
C.Motor cooling fan to avoid the over-heating possibility
D.Automatic reversing when the barrier boom meets the obstruction
E.Auto closing realization through menu setting on the control
panel
F.RS485 Communication Module is compatible
G.Manual release device to operate the barrier when power failure
Specifications:
| Model |
WSTP-115 (WONSUN 1st generation machine core) |
| Power |
120w/80w |
| Material |
Cold roll plate, Galvanized plate or stainless steel varnish baking, 3 years without fading |
| Running Time |
0.6s, 1s, 1.8s, 3s, 6s |
| Operating Temperature |
-45°C to 75°C |
| Voltage: |
220V ± 10%, 110V ± 10% |
| Relative Humidity |
<90% coagulation free |
| Motor speed |
30r/min |
| Boom length |
Max 6 meters |
| Net weight: |
50Kg |
| MCBF |
≥5, 000, 000 times |
| Housing Size |
320*280*935mm |
| Traffic light |
Optional |
| Rail material |
Aluminum Alloy |
| Boom Type |
Straight arm: Mar 1- 6 meters optional, size 45×100mm aluminum alloy. Folding arm: 90°folding arm / 180°folding arm, aluminum alloy Fence arm: Two or three fence arm, Mar1- 6 meters, aluminum alloy |
| Related accessories |
infrared sensors, loop detectors,traffic light, UHF readers |
| Application |
Parking Lots, Toll Gates, Goods Yards, Railway Crossings,
Commercial Premises, Aparment Block |
| Advantages |
1. quick delivery time, 3-5 days for 50 sets after received advance
deposite 2. 7 years OEM/ODM experience 3. quick response for handling problems |
| Our other products |
WONSUN has other products: tripod turnstiles, sliding gate motor, flap barrier,swing gate motor, pedestrian access control turnstiles and barriers,
and other related accessories. |
Parking & Shipping:
1. Strong carton case with cushion for safety, air bubble film
inside for protect ing the apperance from damaging.
2. As for wooden crate packing, it is USD$ 10/ps; for wooden case
packing, it is USD$ 32/ps.
3. As for shipping, we can send you the goods by air, sea and
express, which according to your detail requirements.
Each barrier gate will include:
| 1 pcs Gate Barrier |
| 1 pcs arm boom (from 1m to 6m can customised) |
| 1 pcs control panel(built inside) |
| 2 pcs remote controllers |
| 1 pcs manual book |
Warranty:
1. Drive Motor is warranted against manufacturer’s defect for
lifetime
2. Standard warranty for all components is valid for12 months from
the date of delivery
3. This warranty does not include damages caused by:
a. Wear and Tear
b. Theft
c. Accidents
d. Act of God & Natural Disaster
e. Unstable power supply (i.e. inconsistent voltage or lightning)
FAQ:
1-Can you install using loop detector or pressure sensor on it?
Yes, the barrier gate have loop detector and pressure sensor.
2-How about the guarantee and after sale service?
We have LIFETIME guarantee for our machine core, Wehave our
technical team & after- sale
services who can speak fluent Engligh.
3-How long is the leading time?
For standard item
10-50 sets: 3 working days
50-100 sets:5-8 working days
200-500 sets:7-10 working days
For special item, or need custom design package or logo, need 3-7
working days longer
4-How about the payment terms?
TT,western union,paypal, L/C
5-How do you send the products to me,how long?
As our products are big volume,and heavy duty, we suggest you to
ship by sea. You can
also choose your own shipping forwarder. it normally takes 7-60
days depend on different
countries.
6-What is the package of the barrier gate?
Inside with a carton package.Then outside,according to the
different shipping method, they
will be packaged wooden crate
7-Can you do OEM service?
We offer below OEM services:
1)we can make custom design turnstile,or you tell us your
requirements,we can make a
design for you.
2)Can print your logo on turnstiles, can customize the retail box
packing and other things.
8-Our services:
1. For all your inquires about us or our products, we will reply
you in detail within 24 hours
2. We own techinical team & after- sale services who can speak
fluent Engligh.
3. We offer OEM services. Can print your own logo on the products ,
can customize the retail
box packing and other things.
4. We have very experienced engineers ,can help you better use it.
