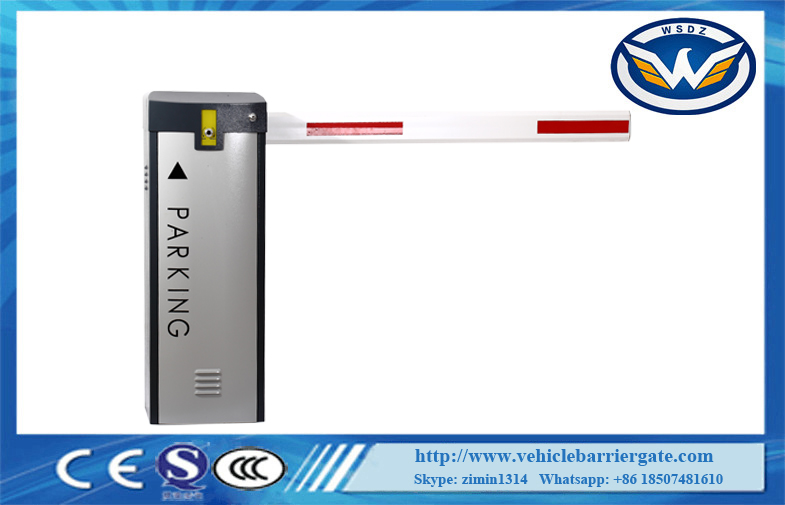

IP65 PMSM Motor Servo Drive Control System Parking Barrier Gate

PMSM motor barrier description:

The new gate uses international leading mechanical and electrical integration design, the new arc-shaped sway crank and connecting rod design, no need to install anti-overshoot device. Mechanical clutch device achieve arm up& down by manual operation when power off, and also can be self-locking when arm up and down. It is more simple and reliable. Running in place to form a sight alignment, so called as three-dimensional structure, so that the lever permanently keeps fast and smooth operation in 90 degrees. No need mechanical shock absorber. Drive input: Adopt DC 24V permanent magnet synchronous motor (PMSM motor) With such characteristics that self-locking when power on, unlock when power off.

Technical data:

Functions introduction:

1.When Power off, gate automatically open, no clutch design, no human intervention. When power on,

gate automatically reset, restore to the gate closing state, truly unattended, fire safety standards. If

special requirement, manual operation is required when power off . Operating arm open and close by

hand also can be realized by setting up control board DIP switch, which ensure that the system can be

used at any time.

2. The use of Single Balance Spring device, good regulation, no noise, indefatigable, not easy to break,

safe and reliable.

3. A variety of input and output modes can be selected, normally open normally closed optional.

4. Arm opening angle can be adjusted from 60 to 90 degrees, 10 degrees resolution, suitable for eaves

prominent place to install.

5. Closing speed can be adjusted, 0.9S, 1.3S.

6. Barrier gate up&down signal relay switch output.

7. Barrier gate running state: OK signal output indicating that the gate is working properly.

8. Barrier gate operation abnormal alarm signal output.

9. Traffic light relay switch signal output.

10. External loop detector signal anti-smashing interface, infrared sensor signals anti-smashing interface.

11. Count mode interface.

12. Arm Open priority anti-smashing function, regardless of the current gate in what state, the operator

through the triple push button, software or remote control to issue a gate arm up, the gate will give priority

to the implementation of the opening action.

13. Barrier with anti-collision protection function, when the vehicle hits the gate arm, arm can be swing

out to avoid damage to the vehicle and barrier gate machine.

14. Delay down selection function.

15. high sensitivity arm auto reverse function (intensity can be adjusted)

16. Parking system interface

17.RS485 or RS232 network communication control up&down interface (no need to install communication

module)

18. Anti-collision alarm signal interface.

19. Arm direction change is simple.

20. Adjustable speed port (S curve adjustment)

21. High-strength precision cast steel, industry moving parts beyond the industry quality
