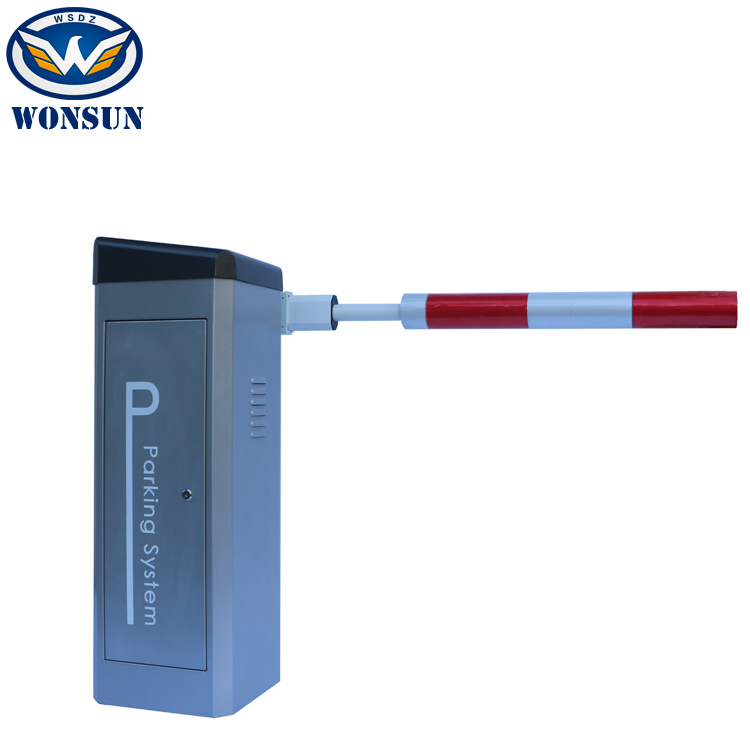

IP65 24V DC PMSM Motor Servo Motor Barrier Automatic Barrier Gate
Servo motor barrier overall description:
The new gate uses international leading mechanical and electrical
integration design, the new arc-shaped sway crank and connecting
rod design, no need to install anti-overshoot device. Mechanical
clutch device achieve arm up& down by manual operation when power
off, and also can be self-locking when arm up and down. It is more
simple and reliable. Running in place to form a sight alignment, so
called as three-dimensional structure, so that the lever
permanently keeps fast and smooth operation in 90 degrees. No need
mechanical shock absorber. Drive input: Adopt DC 24V permanent
magnet synchronous motor (PMSM motor) With such characteristics
that self-locking when power on, unlock when power off.

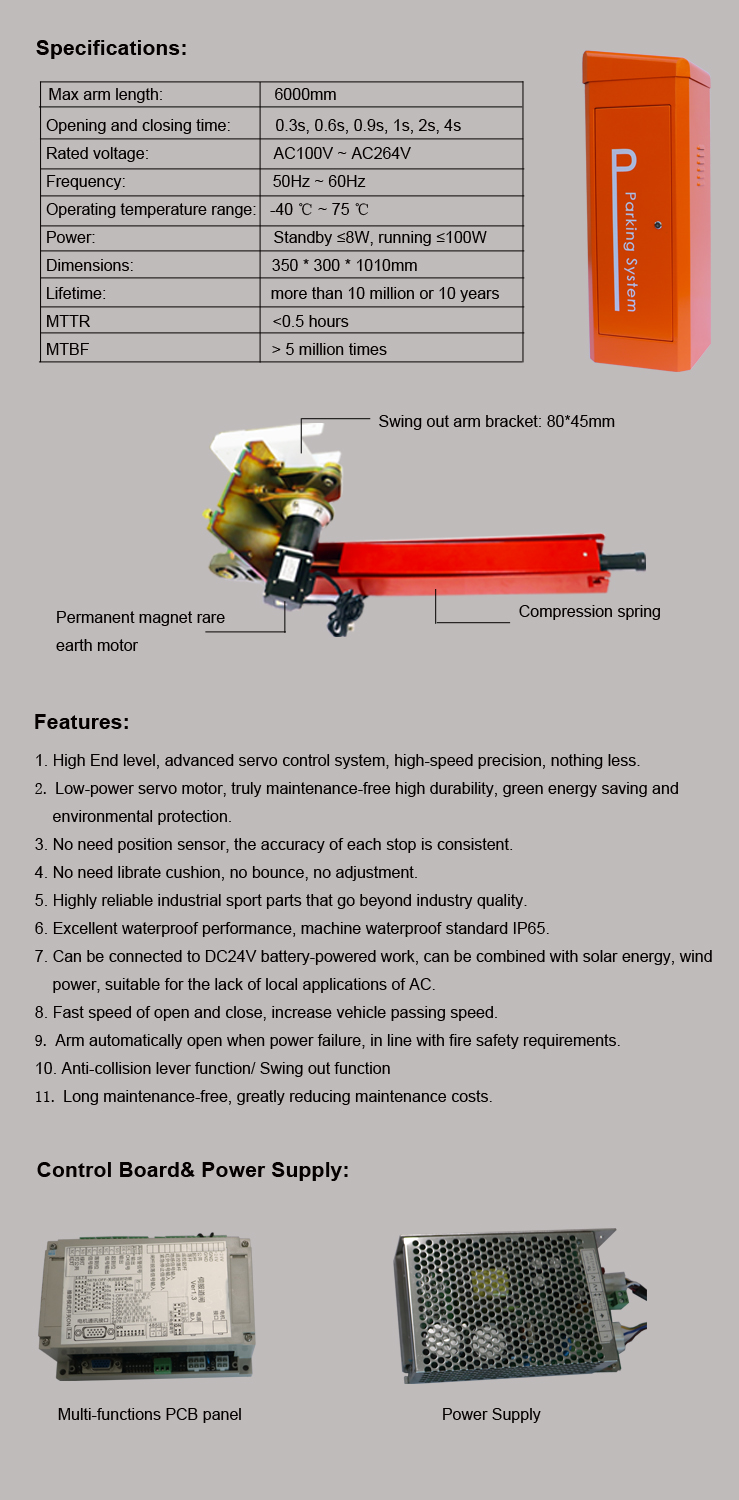

Technical specifications:
| Model | DZ-138 automatic barrier gate |
| arm length: | 2000mm-6000mm |
| opening and closing time: | ≤ 0.6s, 0.9s, 2s, 4s |
| Rated voltage: | AC100V ~ AC264V, DC24V |
| Frequency: | 50Hz ~ 60Hz |
| Motor rated power: | 50W, the maximum power of 100W |
| Working environment temperature: | -40 ℃ ~ 75 ℃ |
| Power: | standby ≤ 8W, run ≤ 100W |
| Dimensions (W * D * H): | 342 * 312 * 959mm |
| Lifetime: | more than 10 million or 10 years |
| MTTR: | <0.5 hours |
| MTBF: | > 5 million times |
| Protection degree: | IP65 |
| Relative humidity: | ≤ 90% |
| Motor no-load speed: | 3000 r / min |
| Remote control distance: | ≤ 100 meters |
| Longest ARM length: | 6 meters |
| Output torque: | 0.86N.M * 140 = 120N.M. |
| running noise: | < 50dB |
| Barrier N.W | 42.6kg |
| Machine core N.W | 22.1kg |
| Surface treatment | Outdoor metal powder, electrostatic spraying |
Our service:
Service for free:
1. One year free service is supplied(not including the arm)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customized machine case, color, logo for you, which
accroding to your detailed requirements.
5. Technical support and aftersales service, it is a long term
relatioship between us.
6. Price can be negotiable when you have big order quantity.
Service for charging:
1. Broken by wrong installation
2. Broken by improper voltage
3. The surfaces of the barrier destroyed by wrong installation and
usage
4. Overdue service items are out of our promise.
