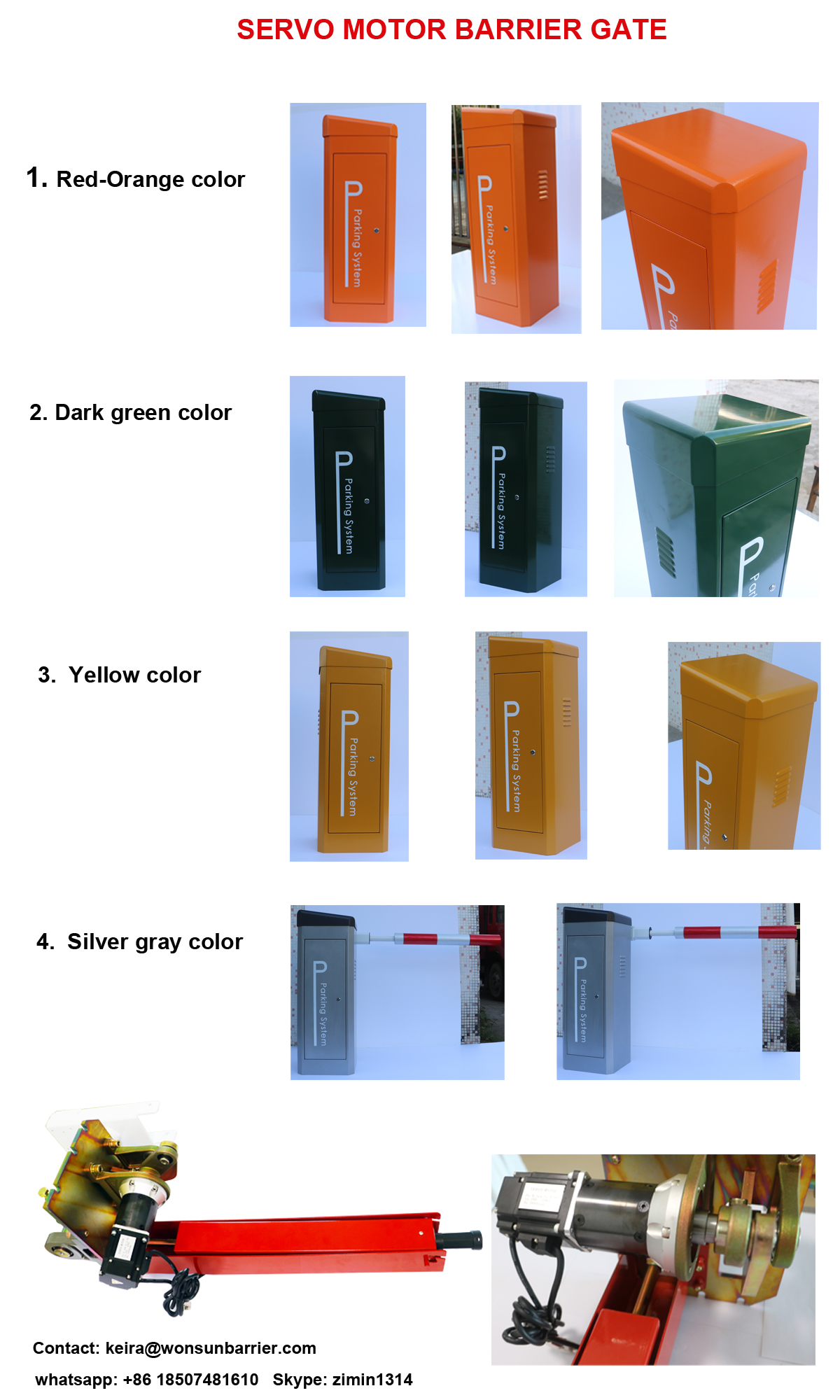

Low Noise High Speed Servo Motor Barrier Automatic Boom Barrier For Toll Gate Station

Quick Details:

Model: DZ-138 automatic boom barrier

arm length:2000mm-6000mm

opening and closing time:≤ 0.6s, 0.9s, 2s, 4s

Rated voltage:AC100V ~ AC264V, DC24V

Frequency:50Hz ~ 60Hz

Motor rated power:50W, the maximum power of 100W

Working environment temperature:-40 ℃ ~ 75 ℃

Power:standby ≤ 8W, run ≤ 100W

Dimensions (W * D * H):342 * 312 * 959mm

Lifetime:more than 10 million or 10 years

MTTR:<0.5 hours

MTBF:> 5 million times

Protection degree:IP65

Relative humidity:≤ 90%

Motor no-load speed:3000 r / min

Remote control distance:≤ 100 meters

Longest ARM length:6 meters

Output torque:0.86N.M * 140 = 120N.M.

running noise:< 50dB

Barrier N.W42.6kg

Surface treatment: Outdoor metal powder, electrostatic spraying

Functions introduction:

1.When Power off, gate automatically open, no clutch design, no human intervention. When power on,

gate automatically reset, restore to the gate closing state, truly unattended, fire safety standards. If

special requirement, manual operation is required when power off . Operating arm open and close by

hand also can be realized by setting up control board DIP switch, which ensure that the system can be

used at any time.

2. The use of Single Balance Spring device, good regulation, no noise, indefatigable, not easy to break,

safe and reliable.

3. A variety of input and output modes can be selected, normally open normally closed optional.

4. Arm opening angle can be adjusted from 60 to 90 degrees, 10 degrees resolution, suitable for eaves

prominent place to install.

5. Closing speed can be adjusted, 0.9S, 1.3S.

6. Barrier gate up&down signal relay switch output.

7. Barrier gate running state: OK signal output indicating that the gate is working properly.

8. Barrier gate operation abnormal alarm signal output.

9. Traffic light relay switch signal output.

10. External loop detector signal anti-smashing interface, infrared sensor signals anti-smashing interface.

11. Count mode interface.

12. Arm Open priority anti-smashing function, regardless of the current gate in what state, the operator

through the triple push button, software or remote control to issue a gate arm up, the gate will give priority

to the implementation of the opening action.

13. Barrier with anti-collision protection function, when the vehicle hits the gate arm, arm can be swing

out to avoid damage to the vehicle and barrier gate machine.

14. Delay down selection function.

15. high sensitivity arm auto reverse function (intensity can be adjusted)

16. Parking system interface

17.RS485 or RS232 network communication control up&down interface (no need to install communication

module)

18. Anti-collision alarm signal interface.

19. Arm direction change is simple.

20. Adjustable speed port (S curve adjustment)
