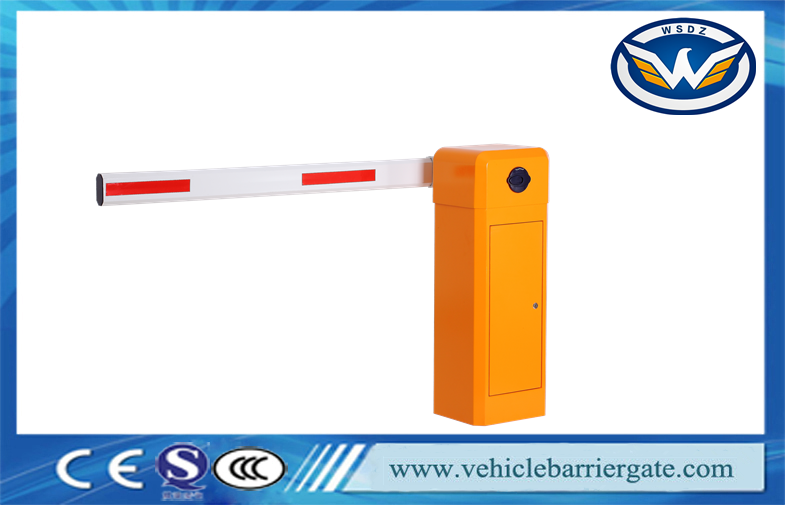

Serve Motor Intelligent Barrier , Electric Highway Barrier Gate
System With 3 Fence
Simply Description For Serve Motor Barrier Gate:
Wonusn patented 138 series serve motor barrier gate,combining
permanent-magnet synchrounous serve motor(PMSM motor) with high
quality aluminum alloy press forming housing & well-designed gear
reducer,the motor features high power density,low noise,small
vibration,high efficiency and fast response as special drive
applied.Compared with traditional asynchronous motor,the serve
motor has such advantages as higher efficiency,higher power
factor,lighter,low temprerature rise,better power-saving,by which
it improves power grid quality factor,and brings current power grid
capacity into full play,thus save investment on power grid.The
motor drive employees serve motion control algorithm to accurately
position open/colse position and motion curve track through
encoder,able to be widely use for expressway toll station,bus
station,shopping mail,airport,hospital.,etc
Specifications:
| Model | DZ-138 intelligent barrier |
| arm length: | 2000mm-6000mm |
| opening and closing time: | ≤ 0.6s, 0.9s, 2s, 4s |
| Rated voltage: | AC100V ~ AC264V, DC24V |
| Frequency: | 50Hz ~ 60Hz |
| Motor rated power: | 50W, the maximum power of 100W |
| Working environment temperature: | -40 ℃ ~ 75 ℃ |
| Power: | standby ≤ 8W, run ≤ 100W |
| Dimensions (W * D * H): | 342 * 312 * 959mm |
| Lifetime: | more than 10 million or 10 years |
| MTTR: | <0.5 hours |
| MTBF: | > 5 million times |
| Protection degree: | IP65 |
| Relative humidity: | ≤ 90% |
| Motor no-load speed: | 3000 r / min |
| Remote control distance: | ≤ 100 meters |
| Longest ARM length: | 6 meters |
| Output torque: | 0.86N.M * 140 = 120N.M. |
| running noise: | < 50dB |
| Barrier N.W | 42.6kg |
| Machine core N.W | 22.1kg |
| Surface treatment | Outdoor metal powder, electrostatic spraying |
Product Details:

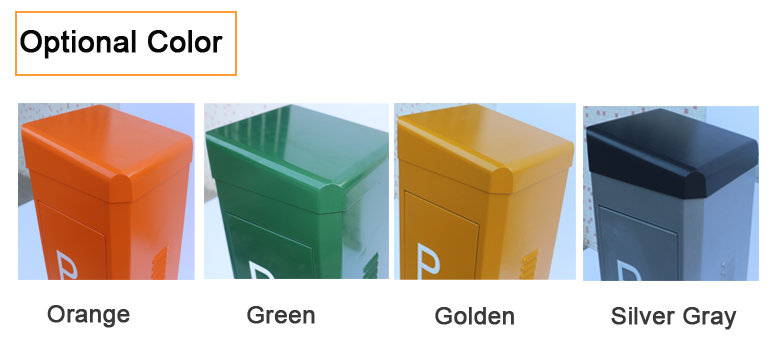

Optional Color:
Features&Functions:
1.When Power off, gate automatically open, no clutch design, no
human intervention. When power on,
gate automatically reset, restore to the gate closing state, truly
unattended, fire safety standards. If
special requirement, manual operation is required when power off .
Operating arm open and close by
hand also can be realized by setting up control board DIP switch,
which ensure that the system can be
used at any time.
2. The use of Single Balance Spring device, good regulation, no
noise, indefatigable, not easy to break,
safe and reliable.
3. A variety of input and output modes can be selected, normally
open normally closed optional.
4. Arm opening angle can be adjusted from 60 to 90 degrees, 10
degrees resolution, suitable for eaves
prominent place to install.
5. Closing speed can be adjusted, 0.9S, 1.3S.
6. Barrier gate up&down signal relay switch output.
7. Barrier gate running state: OK signal output indicating that the
gate is working properly.
8. Barrier gate operation abnormal alarm signal output.
9. Traffic light relay switch signal output.
10. External loop detector signal anti-smashing interface, infrared
sensor signals anti-smashing interface.
11. Count mode interface.
12. Arm Open priority anti-smashing function, regardless of the
current gate in what state, the operator
through the triple push button, software or remote control to issue
a gate arm up, the gate will give priority
to the implementation of the opening action.
13. Barrier with anti-collision protection function, when the
vehicle hits the gate arm, arm can be swing
out to avoid damage to the vehicle and barrier gate machine.
14. Delay down selection function.
15. high sensitivity arm auto reverse function (intensity can be
adjusted)
16. Parking system interface
17.RS485 or RS232 network communication control up&down
interface (no need to install communication
module)
18. Anti-collision alarm signal interface.
19. Arm direction change is simple.
20. Adjustable speed port (S curve adjustment)
