IP65 Brushless Motor Automatic Car Barrier Gate Access With Fence
Boom
Wonusn patented 138 series servo motor barrier gate,combining
permanent-magnet synchrounous servo motor(PMSM motor) with high
quality aluminum alloy press forming housing & well-designed gear
reducer,the motor features high power density,low noise,small
vibration,high efficiency and fast response as special drive
applied.Compared with traditional asynchronous motor,the serve
motor has such advantages as higher efficiency,higher power
factor,lighter,low temprerature rise,better power-saving,by which
it improves power grid quality factor,and brings current power grid
capacity into full play,thus save investment on power grid.The
motor drive employees serve motion control algorithm to accurately
position open/colse position and motion curve track through
encoder,able to be widely use for expressway toll station,bus
station,shopping mail,airport,hospital.,etc
Product Pictures:
Details Information:
| 1 | Product Name | Brushless Motor Barrier Gate Automatic Access Boom Barrier With
Fence Boom |
| 2 | Rated Volatge | AC90V~AC264V,DC24V,50/60HZ |
| 3 | Speed Time | 0.3s,0.6s,0.9s,2s,4s,6s |
| 4 | Motor Power | 50W,max 100W |
| 5 | Boom Length | 2meter to 6meter(max) |
| 6 | Working Temperature | -40℃~85℃ |
| 7 | Housing Size | 342*312*959*2mm(L*W*H*TH) |
| 8 | Lifetime | >10 million times or 10 years |
| 9 | MTTR | <0.5hour |
| 10 | MTBF | >5 million times |
| 11 | Protection Grade | IP68 |
| 12 | Remote Controll Distance | ≤100 meter |
| 13 | Motor Speed | 3000 r/min |
| 14 | Relative Humidity | ≤90% |
| 15 | Running Noise | <50dB |
| 16 | Net Weight | 42.6KG |
| 17 | Application | Parking Lots, Toll Gates, Goods Yards, Railway Crossings,Commercial Premises, Apartment Block Access |
Optional Color:

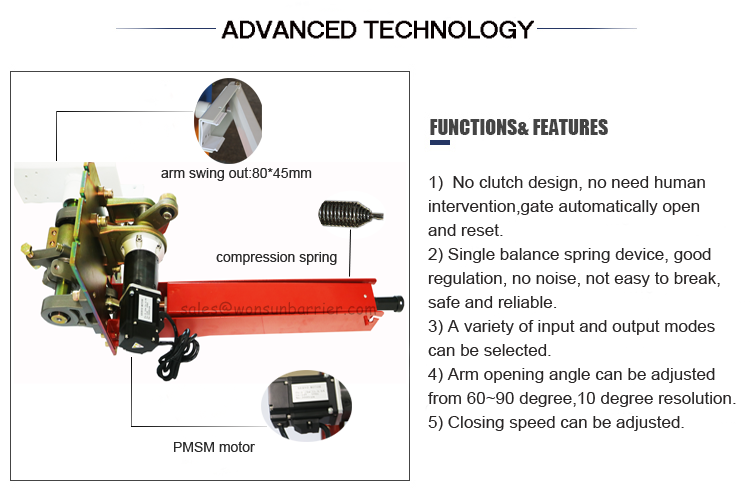

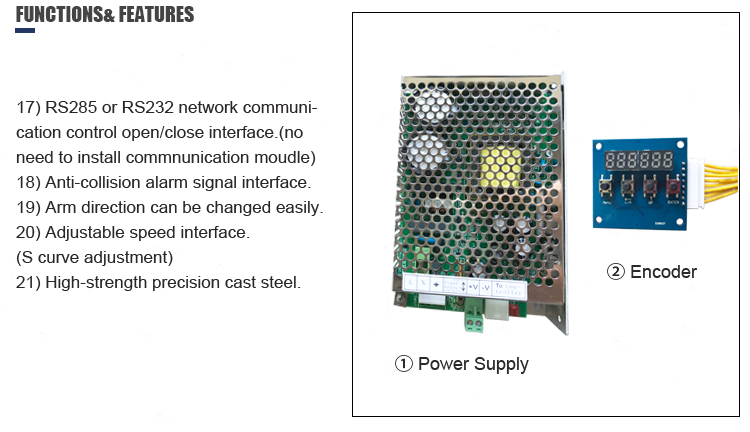

Functions&Features:
Company Information:
FAQ:
1.Are you the manufacturer or trade company?
-------We're professional manufacturer who has our own factory in Shenzhen
since 2007.
2.What is your biggest sadvantage?
----------Serve motor,support for AC and DC power,only us use this
motor for barrier gate in China,rod and operation time can be
adjusted,no limit switch,free-debbugging.
3.Why the price is higher than others?
-------This barrier gate combining permanent-magnet synchrous serve
motor(PMSM motor),the technology is the mostt anvanced in China.At
the same time,we can supply the more cheaper price barrier gate to
meet different clients.
4.What's the MOQ?
-------Sample order for 1 set is supported.
5.What is your delivery time?
---------As for usual order,it is 3-5 days after received your payment with
50 sets order quanlity.
--------For OED order,it is 7-15 days after received your payment
with 30 sets order quality.
6.What is thr terms of payment?
--------30%-40% advance deposite,60%-70% balance beforefor shipment for
large quantity.
7.What is your Warranty?
--------Our Warranty is 2 year.
