More than 10 Million Operation Times Vehicle Barrier Gate
Maintenance-Free
Functions and Features
1. The gate automatically open when the power is off, no clutch
design, no need human intervention. When the power is on, the gate
automatically reset, and the gate returns to being closed, truly
unattended, fire safety standards. If there is special need, manual
operation is required when the power if off, the operating arm can
open and close manually. Can also set up the control board DIP switch, which will ensure the system can be used at any time
2. The use of Single Compression Balance Spring device, good
regulation, no noise, indefatigable, not easily broken, safe and
reliable.
3. A variety of input and output modes can be selected, normally
open normally closed are optional.
4. Arm opening angle can be adjusted from 60 to 90 degrees, 10
degrees resolution, suitable for eaves prominent place to install.

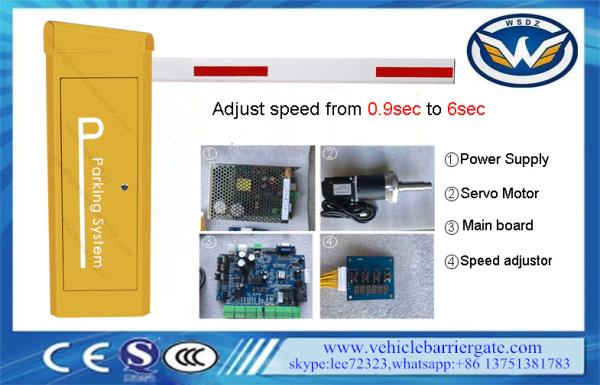

5. Speed can be adjusted.
The motor uses the DC 24V permanent magnet synchronous motor (PMSM
motor), adjust to the global voltage, high-speed operation and
rapid response, it will not overheat after 24 hours, frequent
operation, speed time can be adjusted based on the vehicle flow and
arm length, safe and reliable. The series servo barrier gate is
free-debugging and free-maintenance, achieve the fully automated
and intelligent, and the barrier arm open/close is fast and smooth,
easy to use and safe.
|
Technical Data
DZ Controller |
| Voltage(±10%) | 100-240 volt |
| Frequency(Hz) | 50-60 |
| Max Power Consumption(watt) | 8 |
| Fuse | F5AH |
| Control Voltage | 24V DC/max.3000mA |
| Input-end Number | 8 |
| Open Collector Output Number | 2 |
| Zero Level Reversal Relay Number | 3 |
| Operating Temperature Range℃ | -45℃~+85℃ |
| Protection System(IP) | 20 |
| Weight(gram) | 450gram |
| Dimension | mm(L-W-H) |
| DZ-138 barrier gate |
| Max Boom Length and Diameter | 2.5mts |
| Open/Close Time | 0.6sec |
| Power Supply | 24/100/240VAC,50/60Hz |
| Power Consumption | max.150W |
| Machine Case | Varnished 2.0mm steel plate |
| Machine Case Size(W*D*H) | 342*312*959mm |
| Net Weight | 43kg |
| Operating Temperature Range℃ | -45℃~+85℃ |
| Driving Method | Servo motor |
| Protection System(IP) | 54 |
| Insulation Class | F |
| Relative Humidity | ≤90% |
| Motor No-load Speed | 3000r/min |
| Remote Control Distance | ≤100m (open, sunny weather) |
| Output Torque | 1.2N.M*140=160N.M |
| Running Noise＜ | 45dB |
| Surface Treatment | Outdoor metal powder electrostatic spraying |
 |
Packing list:
Title | Specification | Qty | Unit | Note |
| Barrier gate boom | | 1 | Piece | |
| Machine case press board | | 2 | piece | For fixing case |
| Expansion bolt | M16X150 | 4 | set | For fixing case |
| Supporting pole | | 1 | piece | Optional part |
| Expansion bolt | M8 | 4 | unit | For fixing boom |
| Boom fixed screws | M12*70 | 2 | unit | |
| Case Key | | 2 | unit | |
| Balance spring | | 1 | unit | For spare usage |
| Remote controller | | 2 | unit | |
| Machine control | | 1 | unit | Optional |
| Instruction | | 1 | piece | |
RFQ:
1.How about the after-sales service, how long the warranty? How to
warranty?
The core part of the retractable door is motor, we are committed
the motor's warranty is 2 years, other electronic parts is 1 year,
we are specialized in manufacturing electric retractable gate and
we have the strength to solve all your problems (In fact,quality of
our products is quite stable, there is almost no rework problems
within a few years)
2.How about the terms of payment?
Paid 30% of the sales proceeds as the advance payment,and the
balance paid by T/T or L/C.
3. First time import, how can i believe that you would send
product?
A: We are verified company by Everychina, to make transaction
success .
4.How to import your machines?
1. We will prepare barrier and shipment for you after payment;
2. We will give you bill of loading after barrier depart our
shipping port;
3. Our shipping agent will contact you when barrier arrival ;
4. You can pick up barrier by bill of loading .
