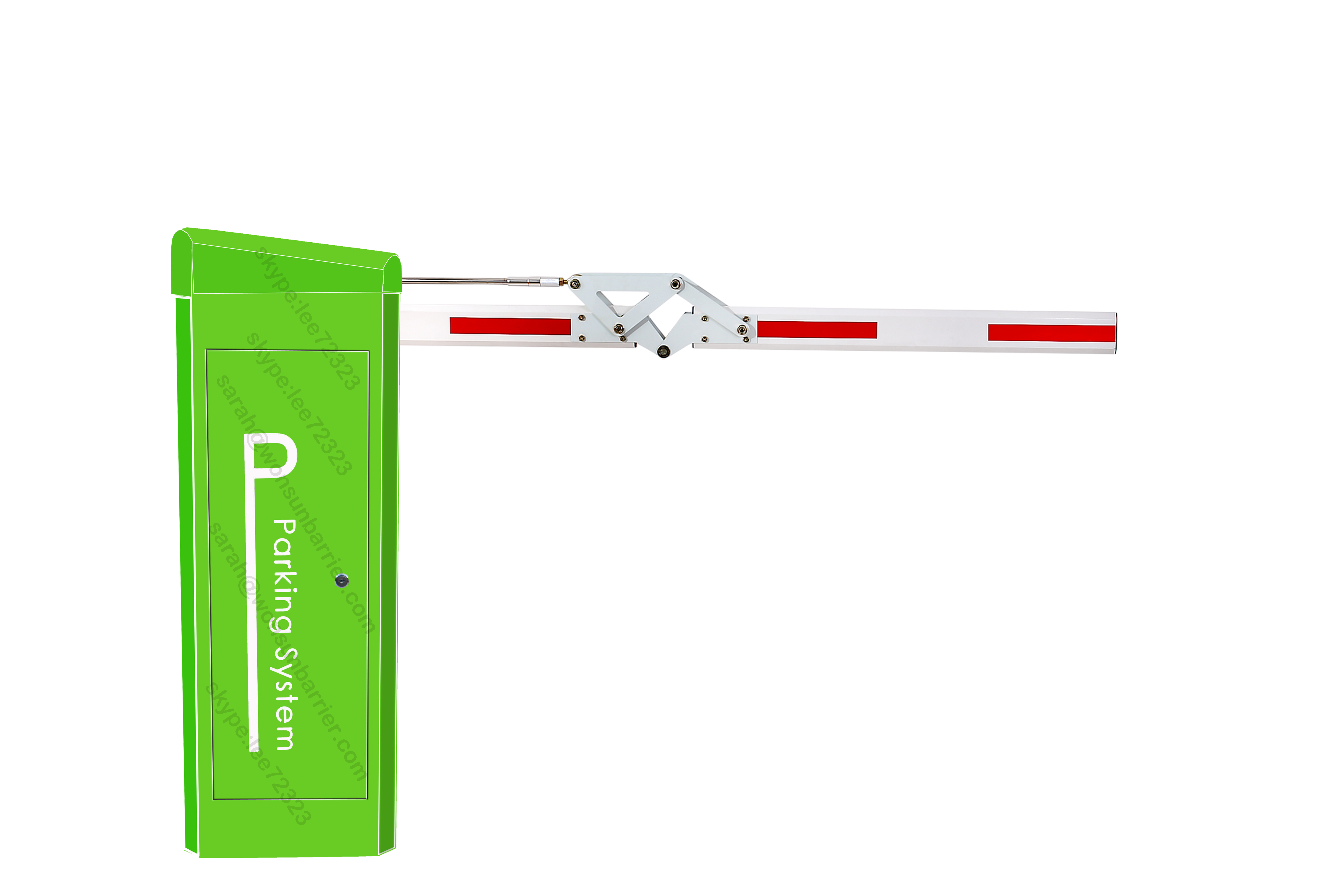

Auto Closing Parking Barrier Gate DC Backup Battery For Parking Lot
Quick Introduction
The DZ-138 servo barrier gate series, which researched developed
and manufactured by our company, adopts international advanced
technology, mechanical and electrical integrated design. Planetary
gear drive, high torque, un-blocked, oil tight, no noise,
automatically unlocked when the power is off, with 10 million
operation times.
Features
1. The gate automatically open when the power is off, no clutch
design, no need human intervention. When the power is on, the gate
automatically reset, and the gate returns to being closed, truly
unattended, fire safety standards. If there is special need, manual
operation is required when the power if off, the operating arm can
open and close manually. Can also set up the control board DIP
switch, which will ensure the system can be used at any time
2. The use of Single Compression Balance Spring device, good
regulation, no noise, indefatigable, not easily broken, safe and
reliable.
3. A variety of input and output modes can be selected, normally
open normally closed are optional.
4. Arm opening angle can be adjusted from 60 to 90 degrees, 10
degrees resolution, suitable for eaves prominent place to install.
5. Speed can be adjusted.
Controller Data
| Voltage(±10%) | 100-240 volt | 100-240 volt |
| Frequency(Hz) | 50-60 | 50-60 |
| Max Power Consumption(watt) | 8 | 8 |
| Fuse | F5AH | F5AH |
| Control Voltage | 24V DC/max.3000mA | 24V DC/max.3000mA |
| Input-end Number | 8 | 8 |
| Open Collector Output Number | 2 | 2 |
| Zero Level Reversal Relay Number | 3 | 3 |
| Operating Temperature Range℃ | -45℃~+85℃ | -45℃~+85℃ |
| Protection System(IP) | 20 | 20 |
| Weight(gram) | 450gram | 450gram |
| Dimension | mm(L-W-H) | 158*126*55 |
Parameter of barrier gate
| DZ-138 barrier gate | V06T | V09T |
| Max Boom Length and Diameter | 2500mm, Ф75mm | 3000mm, Ф75mm |
| Open/Close Time | 0.6sec | 0.9sec,2.5sec,4.5sec |
| Power Supply | 24/100/240VAC,50/60Hz | 24/100/240VAC,50/60Hz |
| Power Consumption | max.150W | 100w |
| Machine Case | Varnished 2.0mm steel plate | Varnished 2.0mm steel plate |
| Machine Case Size(W*D*H) | 342*312*959mm | 342*312*959mm |
| Net Weight | 43kg | 42.6kg |
| Operating Temperature Range℃ | -45℃~+85℃ | -45℃~+85℃ |
| Driving Method | Servo motor | Servo motor |
| Protection System(IP) | 54 | 54 |
Program 1
The barrier gate can be controlled by two-key push button and an
impulse will trigger the operation relay.
Connecting GND and COM, 24V with UP is for machine opening, 24V
with Down is for machine closing. Other accessories interface input
available, like IR sensor and loop detector signal.
Program 2
The barrier gate can be controlled by remote controller or GSM gate
opener.
Connecting the antenna receiver GND to COM on the board, Remote-up
is for opening and Remote-down is for closing.
If the remote control receiver is non-electric relay signal,
connecting GND and COM first, the 24V connecting with Remote-up is
for opening and 24V connecting with Remote-down is for closing.
Program 3
The barrier gate can be controlled by gate photocell(IR sensor) or
loop detector for automatic opening and closing. There are other
signal input as emergency stop and alarm signal. The connection is
as program 1 mentioned.
Program 4
Boom-drop signal input: when the boom is crashed by passing
vehicle, the barrier gate will stop to run with a warning output.
Operation Time and Boom Length Configuration Parameter
| Boom Type(meter) | Operation Time(seconds) | Boom Height(meter) |
| Fast speed boom≤2.5 | 0.6 | 0.83 |
| Fast speed boom≤3 | 0.9 | 0.83 |
| Common straight boom≤4.5 | 2.5 | 0.83 |
| Common straight boom≤6 | 4.5 | 0.83 |
| 80*45mm 90°folding boom≤3 | 1 | 0.83 |
| 80*45mm 90°folding boom≤3.5 | 2.5 | 0.83 |
| 80*45mm 90°folding boom≤5 | 5 | 0.83 |
| 80*45mm 180°folding boom≤3 | 1 | 0.83 |
| 80*45mm 180°folding boom≤4 | 2.5 | 0.83 |
| 80*45mm 180°folding boom≤5 | 4.5 | 0.83 |
| 100*45mm 2 fence boom≤3.5 | 2.5 | 0.83m, small vertical boom is 0.8m, landing boom is 0.9m |
| 100*45mm 2 fence boom≤5 | 6 | 0.83m, small vertical boom is 0.8m, landing boom is 0.9m |
| 100*45mm 3 fence boom≤3 | 3 | 0.83m, small vertical boom is 1.5m, landing boom is 1.6m |
| 100*45mm 3 fence boom≤4 | 6 | 0.83m, small vertical boom is 1.5m, landing boom is 1.6m |
