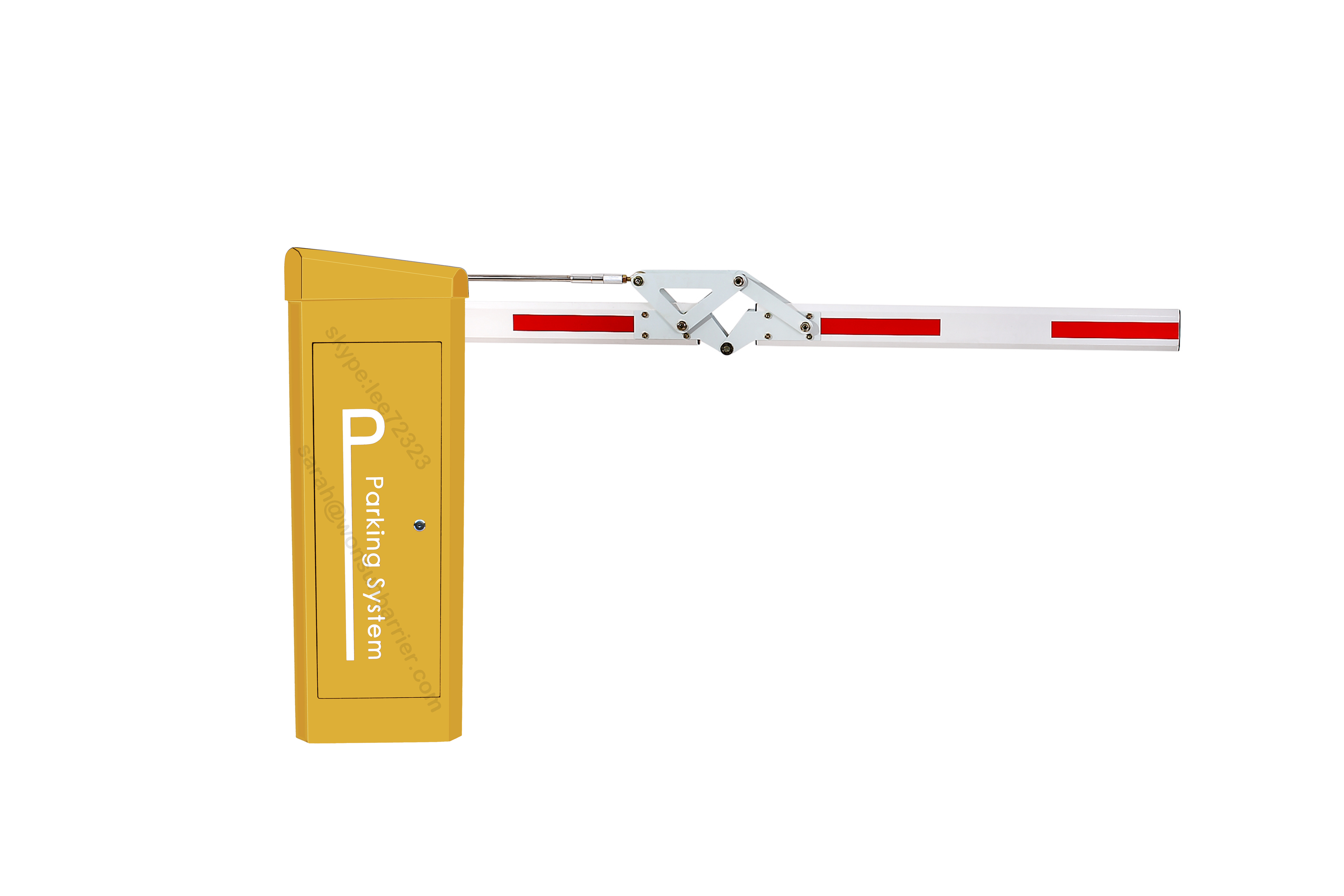

RS485 Computer Control Parking Barrier Gate CE Approved DC Motor
Quick Introdcution:
The DZ-138 servo barrier gate series, which researched developed and manufactured by our
company, adopts international advanced technology, mechanical and
electrical integrated design. Planetary gear drive, high torque,
un-blocked, oil tight, no noise, automatically unlocked when the
power is off, with 10 million operation times. |
Technical Parameter
| Open/Close Time | 0.9sec,2.5sec,4.5sec |
| Max length of arm | 6mts |
| Power Supply | 24/100/240VAC,50/60Hz |
| Power Consumption | 100w |
| Machine Case | Varnished 2.0mm steel plate |
| Machine Case Size(W*D*H) | 342*312*959mm |
| Net Weight | 42.6kg |
| Operating Temperature Range℃ | -45℃~+85℃ |
| Driving Method | Servo motor |
| Protection System(IP) | 54 |
| Insulation Class | F |
| Relative Humidity | ≤90% |
| Motor No-load Speed | 3000r/min |
| Remote Control Distance | ≤100m (open, sunny weather) |
| Output Torque | 0.86N.M*140=120N.M |
| Running Noise＜ | 45dB |
| Surface Treatment | Outdoor metal powder electrostatic spraying |
Advanced Functions:
- Advanced servo control system, high speed and precise.
- Low-power servo motor, truly maintenance-free, high durability and
energy saving.
- Zero speed (0 rpm) constant torque output, no need worry about
external force to lever the boom.
- No position sensor, each stop with the same accuracy. Pair using
is fully synchronized.
- No anti-shock rubber, no impact, no bounce, free adjustment.
- No clutch device, boom will auto rise when power off (or unlock
when power off, only use hand to lift the boom gently).
- No key-way design, no longer to worry about the gap between the
key-way and the key, which is a hidden danger.
- No brake design, no longer to worry about the troubles from the
wear of the brake pads and a series of reliability problems.
| DZ Controller |
| Voltage(±10%) | 100-240 volt | 100-240 volt |
| Frequency(Hz) | 50-60 | 50-60 |
| Max Power Consumption(watt) | 8 | 8 |
| Fuse | F5AH | F5AH |
| Control Voltage | 24V DC/max.3000mA | 24V DC/max.3000mA |
| Input-end Number | 8 | 8 |
| Open Collector Output Number | 2 | 2 |
| Zero Level Reversal Relay Number | 3 | 3 |
| Operating Temperature Range℃ | -45℃~+85℃ | -45℃~+85℃ |
| Protection System(IP) | 20 | 20 |
| Weight(gram) | 450gram | 450gram |
| Dimension | mm(L-W-H) | 158*126*55 |
Packing list:
Title | Specification | Qty | Unit | Note |
| Barrier gate boom | | 1 | Piece | |
| Machine case press board | | 2 | piece | For fixing case |
| Expansion bolt | M16X150 | 4 | set | For fixing case |
| Supporting pole | | 1 | piece | Optional part |
| Expansion bolt | M8 | 4 | unit | For fixing boom |
| Boom fixed screws | M12*70 | 2 | unit | |
| Case Key | | 2 | unit | |
| Balance spring | | 1 | unit | For spare usage |
| Remote controller | | 2 | unit | |
| Machine control | | 1 | unit | Optional |
| Instruction | | 1 | piece | |
RFQ:
1.How about the after-sales service, how long the warranty? How to
warranty?
The core part of the retractable door is motor, we are committed
the motor's warranty is 2 years, other electronic parts is 1 year,
we are specialized in manufacturing electric retractable gate and
we have the strength to solve all your problems (In fact,quality of
our products is quite stable, there is almost no rework problems
within a few years)
2.How about the terms of payment?
Paid 30% of the sales proceeds as the advance payment,and the
balance paid by T/T or L/C.
3. First time import, how can i believe that you would send
product?
A: We are verified company by Everychina, to make transaction
success .
4.How to import your machines?
1. We will prepare barrier and shipment for you after payment;
2. We will give you bill of loading after barrier depart our
shipping port;
3. Our shipping agent will contact you when barrier arrival ;
4. You can pick up barrier by bill of loading .
