Smart Barrier Gate DC Servo Motor Intelligent Parking Barrier Boom
Gate
CE Certificate
Technical Parameter List
| DZ-138 barrier gate | V06T | V09T |
| Max Boom Length and Diameter | 2500mm, Ф75mm | 3000mm, Ф75mm |
| Open/Close Time | 0.6sec | 0.9sec,2.5sec,4.5sec |
| Power Supply | 24/100/240VAC,50/60Hz | 24/100/240VAC,50/60Hz |
| Power Consumption | max.150W | 100w |
| Machine Case | Varnished 2.0mm steel plate | Varnished 2.0mm steel plate |
| Machine Case Size(W*D*H) | 342*312*959mm | 342*312*959mm |
| Net Weight | 43kg | 42.6kg |
| Operating Temperature Range℃ | -45℃~+85℃ | -45℃~+85℃ |
| Driving Method | Servo motor | Servo motor |
| Protection System(IP) | 65 | 65 |
| Insulation Class | F | F |
| Relative Humidity | ≤90% | ≤90% |
| Motor Speed | 3000r/min | 3000r/min |
| Remote Control Distance | ≤100m (open, sunny weather) | ≤100m (open, sunny weather) |
| Output Torque | 1.2N.M*140=160N.M | 0.86N.M*140=120N.M |
| Running Noise＜ | 45dB | 45dB |
| Surface Treatment | Outdoor metal powder electrostatic spraying | Outdoor metal powder electrostatic spraying |
| DZ Controller | | |
| Voltage(±10%) | 100-240 volt | 100-240 volt |
| Frequency(Hz) | 50-60 | 50-60 |
| Max Power Consumption(watt) | 8 | 8 |
| Fuse | F5AH | F5AH |
| Control Voltage | 24V DC/max.3000mA | 24V DC/max.3000mA |
| Input-end Number | 8 | 8 |
| Open Collector Output Number | 2 | 2 |
| Zero Level Reversal Relay Number | 3 | 3 |
| Operating Temperature Range℃ | -45℃~+85℃ | -45℃~+85℃ |
| Protection System(IP) | 20 | 20 |
| Weight(gram) | 450gram | 450gram |
| Dimension | mm(L-W-H) | 158*126*55 |
Features& Functions:
1. Gate automatically open when power off, no clutch design, no need human intervention. When power on,
gate automatically reset, restore to the gate closing state, truly
unattended, fire safety standards. If special
requirement, manual operation is required when power off, operating
arm open and close manually also can
be realized by setting up control board DIP switch, which ensure
that the system can be used at any time.
2. The use of Single Compression Balance Spring device, good
regulation, no noise, indefatigable, not easy
to break, safe and reliable.
3. A variety of input and output modes can be selected, normally
open normally closed are optional.
4. Arm opening angle can be adjusted from 60 to 90 degrees, 10
degrees resolution, suitable for eaves prominent
place to install.
5. Closing speed can be adjusted.
6. Barrier gate up &down signal relay switch output.
7. Barrier gate running state: OK signal output indicating that the
gate is working properly.
8. Barrier gate operation abnormal alarm signal output.
9. R&G Traffic light relay switch signal output.
10. External loop detector signal anti-smashing interface, infrared
sensor signal anti-smashing interface.
11. Count mode interface.
12. Arm Open priority anti-smashing function. No matter the current
gate in what state, the operator through the
triple push button, software or remote control to issue an open
command, the gate will give priority to the implementation of the
opening action.
13. Barrier with anti-collision protection function, when the vehicle hits the gate arm, arm can be swing out to
avoid damage to the vehicle, and barrier gate machine.
14. Delay closed selection function.
15. High-sensitivity arm auto reverse function (intensity can be
adjusted).
16. Parking system interface.
17.RS485 or RS232 network communication control up &down
interface (no need to install communication module)
18. Anti-collision alarm signal interface.
19. Adjustable speed port (from 0.9s to 10 s)

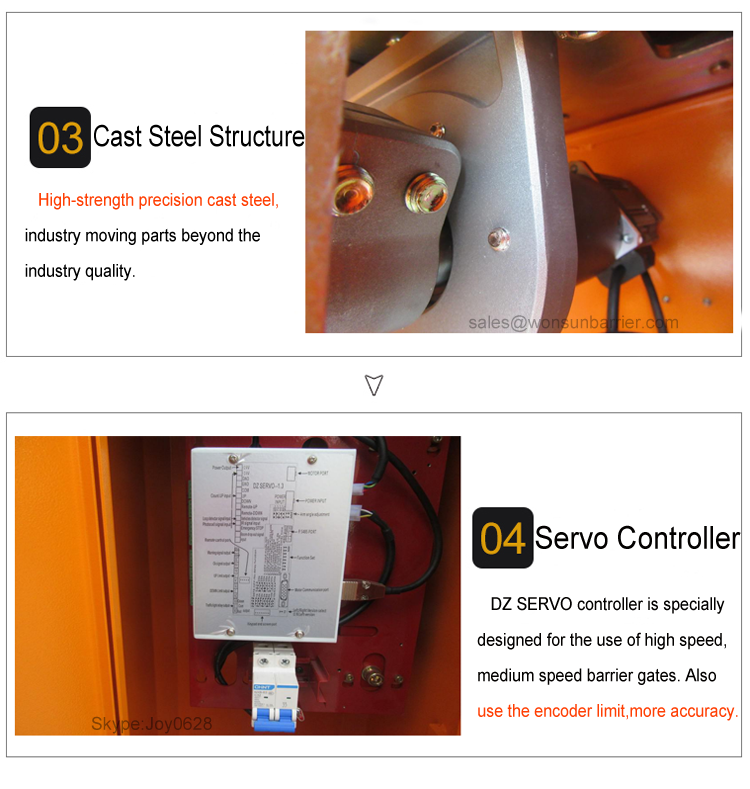

Traffic Barrier Details
Packing List:
| Title | Specification | Qty | Unit | Note |
| Barrier gate boom | | 1 | Piece | |
| Machine case press board | | 2 | piece | For fixing case |
| Expansion bolt | M16X150 | 4 | set | For fixing case |
| Supporting pole | | 1 | piece | Optional part |
| Expansion bolt | M8 | 4 | unit | For fixing boom |
| Boom fixed screws | M12*70 | 2 | unit | |
| Case Key | | 2 | unit | |
| Balance spring | | 1 | unit | For spare usage |
| Remote controller | | 2 | unit | |
| Machine control | | 1 | unit | Optional |
| Instruction | | 1 | piece | |
RFQ:
Q: What's the order process?
A: Follow the steps on below to complete your order.
- 1. Inquiry
Provide us detailed information about your requirement, and we'll
recommend the suitable products according to your request
-2. Quotation
Official quotation form with all clear specifications according to
the order
-3. Invoice
Invoice will be issued once the quotation is confirmed.
-4. Payment
Payment shall be issued once the invoice issued. Full payment is
acquired.
-5. Production
Bulk production shall be taking 15-25 working days.
-6. Delivery
by sea, air or courier. Detailed picture of package will be
provided upon the service you've chosen. Packaging info will be
sent upon confirmation.
Service Items
1 2 year’s free servicing is supplied(not including the arm);
9.2 Lifetime charged servicing is offered;
9.3 Technology servicing is supplied.
The following situations are charged for servicing(or changing):
1) Broken by the wrong installation.
2) Broken by improper voltage.
3) The surfaces of the system destroyed by wrong installation or
use.
4) Broken by natural disaster.
5) Overdue.
6) Servicing items out of our promises.
