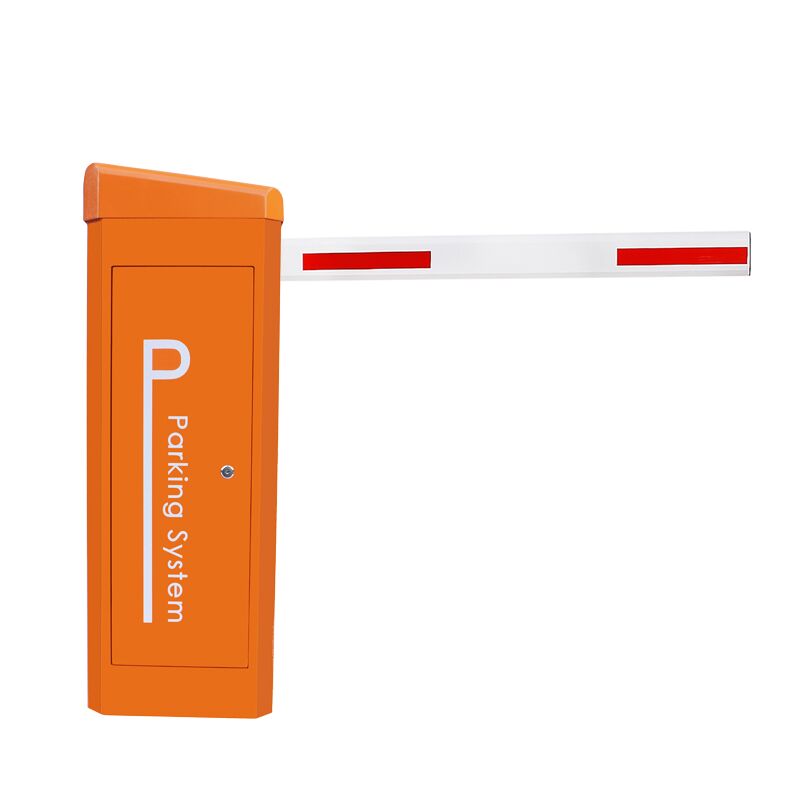

Slolar Powered Automatic Barrier Booms Gate Vehicle Barrier Gate With Fence Arm

Product Details:

Servo Motor Details:

The barrier gate motor uses the DC 24V permanent magnet synchronous motor (PMSM motor), adjust to the global voltage, high-speed operation and rapid response, it will not overheat after 24 hours, frequent operation, speed time can be adjusted based on the vehicle flow and arm length, safe and reliable. The series servo barrier gate is free-debugging and free-maintenance, achieve the fully automated and intelligent, and the barrier arm open/close is fast and smooth, easy to use and safe.

Technical Specification

Barrier Gate Controller

DZ Controller
Voltage(±10%)	100-240 volt	100-240 volt
Frequency(Hz)	50-60	50-60
Max Power Consumption(watt)	8	8
Fuse	F5AH	F5AH
Control Voltage	24V DC/max.3000mA	24V DC/max.3000mA
Input-end Number	8	8
Open Collector Output Number	2	2
Zero Level Reversal Relay Number	3	3
Operating Temperature Range℃	-45℃~+85℃	-45℃~+85℃
Protection System(IP)	20	20
Weight(gram)	450gram	450gram
Dimension	mm(L-W-H)	158*126*55

Advanced Functions:

1. Advanced servo control system, high speed and precise.
2. Low-power servo motor, truly maintenance-free, high durability and energy saving.
3. Zero speed (0 rpm) constant torque output, no need worry about external force to lever the boom.
4. ​No position sensor, each stop with the same accuracy. Pair using is fully synchronized.
5. ​No anti-shock rubber, no impact, no bounce, free adjustment.
6. ​No clutch device, boom will auto rise when power off (or unlock when power off, only use hand to lift the boom gently).
7. ​No key-way design, no longer to worry about the gap between the key-way and the key, which is a hidden danger.
8. ​No brake design, no longer to worry about the troubles from the wear of the brake pads and a series of reliability problems.
