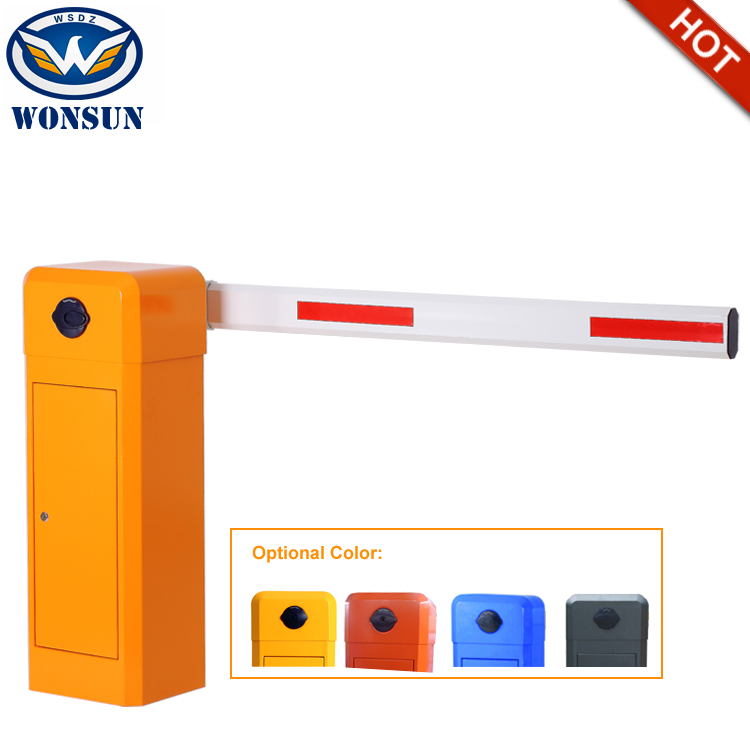

Low Cost Economic Heavy Duty Traffic Barrier Gate With Swing Out
Arm
Quick details:
1 Working temperature(motor): -35℃~+85℃
2 Working temperature(control panel): -35℃~+85℃
3 Voltage:220V±10%,50HZ or 110V±10%,60HZ
4 Rated Power:80W,capacitor:9+uF/450W
5 Humidity:≤90%RH
6 Distance of remote control:100M＞L≥30M in the open place
Technical specifications:
| Model | DZ-130 Intelligent barrier |
| Size | 350*270*935mm |
| Rating Voltage | AC 220/110V ±10%, 50/60Hz |
| Motor Power | 80W/100W |
| Speed Option | 1.8s; 3s; 6s |
| Material | 1.5mm galvanized plate or cold roll plate with epoxy paint |
| Weight | 50KG |
| Operation Testing | More than 3 million times |
| Arm Option | Straight arm, 1-6 m for option, 45*80mm or 45*100mm
Folding arm, 1-4.5 m for option, 90 degree or 180 degree
Fence arm, 1-5m for option, two fence or three fence |
| Working Temperature | -40°C — +75°C |
Features:
1) Machine core with tension spring, effectively avoids the
accidents caused by spring breaking
2) Die-casting aluminum alloy motor, precision and good at thermal
radiating
3) Double safety limit switches (photocell electrical limit
switch/motor memory sensor)
4) Arm swing out
5) Support the INFRARER PHTOCELL for anti-bumping function
(optional)
6) Support the external and internal VEHICLE LOOP DETECTOR
(optional)
7) Traffic light interface
8) Wire control (switch signal)/ Remote control (418MHZ)
9) RS485 communication module (optional)
RFQ:
Q: Are you trading company or manufacturer ?
A: We are a professional barrier gate manufacturer.
Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock. or it is 5-7
days if the goods are not in stock, it is
according to quantity.We can send it for you by
DHL/Fedex/TNT/SEA/AIR or your requirments.
Q: How about payment terms our company provide?
A: T/T or Western Union.
Q: Do you provide samples ?
A:No,we don't provide samples. The MOQ of our products is 1pcs.
Product Maintenance:
1 Keep the barrier gate clean
2 Check the joints ever month in case of any loose parts.
3 Check the spring elasticity after the barrier gate running 3000
times.
4 Check the easily worn-out parts(like the spring,limit
switch),every half year and renew it.
5 Remote control distance will be shortened or not work in case
like big object screening,battery exhausting,extreme weathers.
Service for free:
1. One year free service is supplied(not including the arm)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customized machine case, color, logo for you, which
accroding to your detailed requirements.
5. Technical support and aftersales service, it is a long term
relatioship between us.
6. Price can be negotiable when you have big order quantity.
Service for charging:
1. Broken by wrong installation
2. Broken by improper voltage
3. The surfaces of the barrier destroyed by wrong installation and
usage
4. Overdue service items are out of our promise.
Packing List
| Name | Specification | Qty | Unit | Note |
| Hexagon screw | M12*70 | 2 | Piece | Fixing the boom |
| Boom press board | | 1 | piece | |
| Mounting batten | | 2 | piece | Fixing the case |
| Expansion bolt | M16*150 | 4 | unit | Fixing the case |
| Case Key | | 2 | unit | |
| Remote controller | | 2 | unit | |
| Instruction | | 1 | piece |
|
