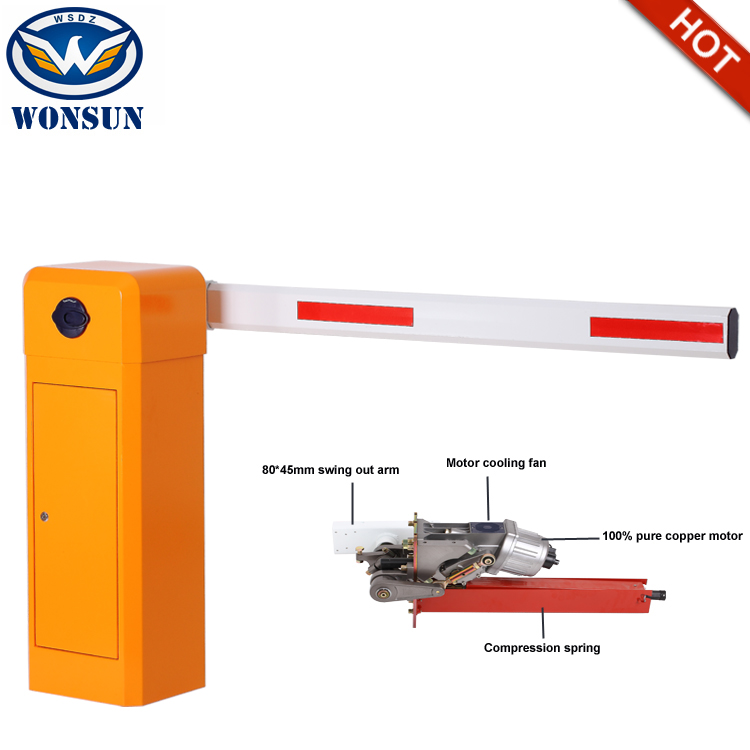

1.8sec High Speed Heavy Duty Pure Copper Motor Toll Barrier Gate
Quick Detail:
| Name | WSTP-115B Toll Barrier Gate | Application | Parking Lot System |
| Speed | 1.8/3/6 second | Feature | Manual release, swing out, arm auto reverse |
| Rated Power | 120W | Certificate | CE, ISO |
| Net Weight | 50KG | Voltage | AC220V, AC110V |
Specifications:
| PARTICULARS | AUTOMATIC PARKING LOT BARRIER DESCRIPTION |
| Model | WSTP-115,WSTP-11B, WSTP-116, WSTP-116B, WSTP-119, WSTP-120,
WSTP-124, WSTP-125,WSTP-126 |
| Application | Outdoor |
| Drive | Block continues torque motor |
| Version | Left handed or Right Handed |
| Logic Control | Included |
| Intelligence | The use of block able torque motor drive with continue torque
output and the microprocessor based controller eliminates the need
of friction clutches to continue maintenance free operation. |
| Power Supply | 2 2 0/1 1 0 + /- 1 0 % V A C , 5 0 /60 H z |
| Colour | Different & Distinct colour pattern as decided by owner. |
| Boom Specification | Length (3, 4, 5, 6 Mtrs) straight or articulated extruded aluminum
alloy. |
| Housing Dimension | W330mm, D300mm, H950mm |
| Protection | All housing and internal parts will be rust & corrosion free metals
or alloys of high strength. |
| Opening & closing time | 1.8 sec , 3 sec, 6 sec. |
| Power off | Manual opening possible |
| Safety | Loop detectors /infrared sensors to be used to prevent barriers
from closing on the vehicle. |
| Duty cycle | 100% |
| Integration | Capable of integration with all the surveillance and access control
systems. |
| MTBF | 5 million cycle |
| Certification | CE Confirm |
| Material of construction | Carbon Steel with power coated finish and the housing top cover is
made out of high impact engg. Plastic with customizable SS Sheet. |
| Operating temperature | - 25 ºC to + 7 5 ºC |
Functions & Features
1) Manual release
2) Machine core with compression spring, effectively avoids the
accidents caused by spring breaking
3) Die-casting aluminum alloy motor, precision and good at thermal
radiating
4) Motor cooling fan, solving the problem of heat-protection
5) Double safety limit switches (photoelectricity limit
switch/motor memory sensor)
6) Reversing on obstacle
7) Auto-closing
8) Support the INFRARER PHTOCELL for anti-bumping function
(optional)
9) Support the external and internal VEHICLE LOOP DETECTOR
(optional)
10) Traffic light interface
11) Wire control (switch signal)/ Remote control (418MHZ)
12) RS485 communication module (optional)
Our service:
Service for free:
1. One year free service is supplied(not including the arm)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customized machine case, color, logo for you, which
accroding to your detailed requirements.
5. Technical support and aftersales service, it is a long term
relatioship between us.
6. Price can be negotiable when you have big order quantity.
Service for charging:
1. Broken by wrong installation
2. Broken by improper voltage
3. The surfaces of the barrier destroyed by wrong installation and
usage
4. Overdue service items are out of our promise.
Communication with customers:
Q: Are you a manufacturer?
A: Yes, WONSUN is a professional manufacturer of barrier gate in
China for over 9 years.
Q: What's WONSUN monthly production capacity for barrier gate?
A: 1500 units.
Q: Sometimes, Why the barrier boom would open automatically?
A: Please check if the limit switch is on the right position; if
not, please adjust the Limit Switch. Please refer to
last page of Barrier Gate Manual. Or you can adjust the adjusting
screw. And the last step is to check the intensity of the spring.
Q: What’s the remote control distance?
A: In general, most of WONSUN 418 remote control can cover 100
meters, but it is not safe and stable to control the barrier gate
from 100 meters away. WONSUN recommends using the remote control
within 30 meters or 50 meters.
