DC Servo Vehicle Barrier Gate Parking Barrier With Bi-direction Main Shaft Factory Price

Vehicle Barrier Gate Overview:

The DZ-138 servo vehicle barrier gate series, which is manufactured by our company, adopts international advanced technology, and mechanical and electrical integrated design. Planet gear drive, high torque, un-blocked, oil-tight, no noise, automatically Self-locked when powered off, with 10 million operation times. The motor uses the DC 24V permanent magnet synchronous motor (PMSM motor), applied to the global voltage, high-speed operation, and rapid response, frequent positive &negative operation in 24 hours does not heat, and speed time can be adjusted based on the vehicle flow and arm length, safe and reliable. The series servo barrier gate is free-debugging and free-maintenance achieves full automation and intelligence, and the vehicle barrier arm open/close is fast and smooth, easy to use, and safe.

Vehicle Barrier Gate Functions and Features

1. When Power is off, the vehicle barrier gate automatically opens, with no clutch design, and no need for human intervention. When power is on, the gate automatically reset, and restored to the gate closing state, truly unattended, according to fire safety standards. If special requirement, manual operation is required when power off. Operating arm open and close by hand also can be realized by setting up a control board DIP switch, which ensures that the system can be used at any time.

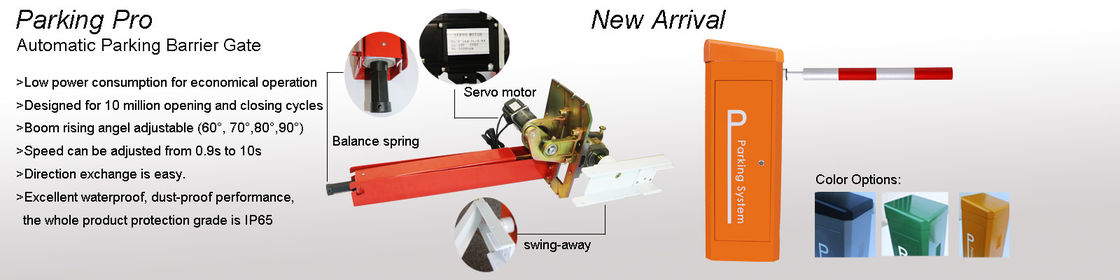

2. The use of a Single Balance Spring device, good regulation, no noise, indefatigable, not easy to break, safe, and reliable.

3. A variety of input and output modes can be selected, normally open closed optional.

4. The vehicle barrier arm opening angle can be adjusted from 60 to 90 degrees, 10 degrees resolution, suitable for eaves prominent place to install.

5. Closing speed can be adjusted, 0.9S, 1.3S.

6. Vehicle barrier gate up down signal relay switch output.

7. Vehicle barrier gate running state: OK signal output indicating that the gate is working properly.

8. Vehicle barrier gate operation abnormal alarm signal output.

9. Traffic light relay switch signal output.

10. External loop detector signals anti-smashing interface, infrared sensor signals anti-smashing interface.

11. Count mode interface.

12. Vehicle barrier arm Open priority anti-smashing function, regardless of the current gate in what state, the operator through the triple push button,

software or remote control to issue a gate arm up, the gate will give priority to the implementation of the opening action.

13. Vehicle barrier with anti-collision protection function, when the vehicle hits the gate arm, the arm can be swung out to avoid damage to the vehicle

and barrier gate machine.

14. Delay down selection function.

15. high sensitivity arm auto reverse function (intensity can be adjusted)

16. Parking system interface

17.RS485 or RS232 network communication control down interface (no need to install communication module)

18. Anti-collision alarm signal interface.

19. Arm direction can be changed easily

20. Adjustable speed port (S curve adjustment)

21. High-strength precision cast steel, industry moving parts beyond the industry quality
