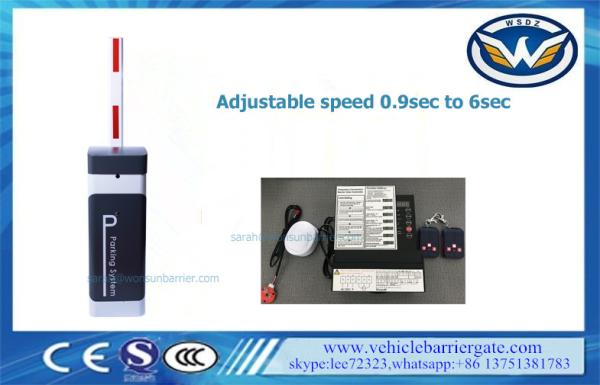

Variable Frequency Automatic Boom Barrier Weather-Resistant Coating
Quick Details
1 Working temperature: - 35 ℃ ~ + 75 ℃
2. Working humidity:≤90%.
3. Input power supply: AC 220V±10% 50Hz.
4. Control output power: ≤500W.
5. Remote control frequency: 433.92mhz.
Technical Data:
| Model No. | DZ-132 |
| Framework Material | Cold-roll sheet |
| Beam | Aluminum alloy |
| Dimension | 352 * 302 * 1120mm |
| Net Weight | 45KG |
| Input Interface | Photo cell, loop detector, parking system,wire control |
| Input | 12V relay signal or Pulse Wide>100MS |
| Power Supply | AC220V/110V, 50/60Hz |
| Motor Consumption | 80W |
| Working Temperature | -35°C to +85°C |
| Relative Humidity | ≥90% |
| MCBF | 3 million time |
| Push Button | Support |
| Remote Control | Two button remote transmitter, Distance≤100m |
| Optional Accessories | Loop detector; IR photo cell |
| Beam Length | 1M - 6M |
| Opening/Close Time | 0.9sec-6sec
|

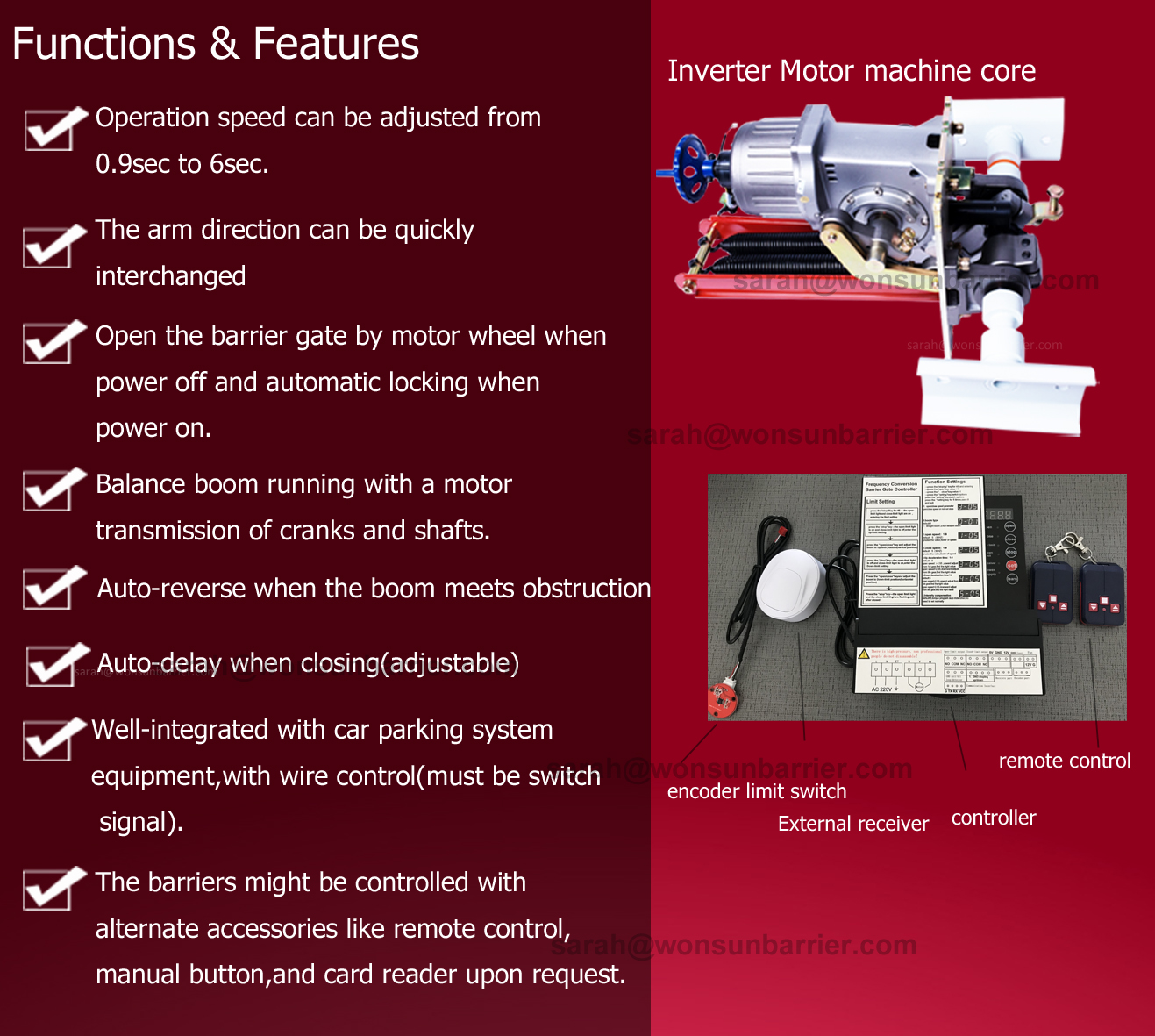

Functions
1 Remote control or wire control control the arm open/stop/close;
2. Open/close limit switch
3. Infrared photocell anti-hit loop detector interface;
4 Counting function;
5. Auto-reverse function;
6. Wire control open/close/stop interface.
Analysis of the fault
| Item | Fault | Fault reason | Fault removal |
| 1 | The power indicator is not on. | 1. The power supply is not connected; 2. Fuse blown.
| 1. Connect the power supply; 2. Replace the fuse.
|
| 2 | The power indicator is on,but remote control have no reaction. | 1.Remote control is wrong; 2. Bad receiver module; 3. Interference from the same frequency.
|
1. Relearn the remote control; 2. Replace remote control receiver; 3.Replace other frequencies.
|
| 3 | The power button is on, the barrier indicator light is normal,but
the motor is not running. | 1. Open or wrong motor line; 2. Motor blocked
| 1. Connect the motor line; 2. Manually release the motor.
|
| 4 | Unable to up and down limit. | 1. Wrong encoder connections; 2. damaged encoder |
1. Check if encoder is installed correctly; 2. Replace the encoder.
|
| 5 | Remote control has no reaction. | 1. Insufficient battery power of the control; 2. Bad control. | 1. Replace the battery; 2. Replace the control. |
| 6 |
"E-0 1" appears on the display
| Overtime protection is running on the motor | 1. Check if the encoder is installed correctly. 2. Replace the encoder |
1.Q: How long will your barrier working?
A:barrier life span more than 10 years.
2.Q: What should we do if there have problems during using?
A: We have 2 years guarantee. Any barrier problems you have,
Welcome email or call me! We will provide our best professional
service for you.
3.Q: First time import, how can i believe that you would send
product?
A: We are verified company by Everychina, to make transaction
success .
4.Q:How to import your machines?
1. We will prepare barrier and shipment for you after payment;
2. We will give you bill of loading after barrier depart our
shipping port;
3. Our shipping agent will contact you when barrier arrival ;
4. You can pick up barrier by bill of loading .
