New Model Adjutable Speed Automatic Boom Barrier Parking Traffic
Barrier Gate
Technical Data:
1. Rating voltage:AC220V
2. Frequency:50HZ
3. Input power:210W
4. Grade:8P
5. Rotational speed:720r/min(-50)
6. Start torque:3.2N/m(-10%)
7. Max torque:3.2N/m(-10%)
8. Working temperature:- 35 ℃ ~ + 75 ℃
9. Working humidity:≤90%.
10. Input power supply:AC 220V±10% 50Hz.
11. Control output power: ≤500W.
Functions&Features:
1. Arm direction can be quickly interchanged
2. Running speed can adjust from 0.9sec to 6sec, 4sec lift max 6m arm.
3. Arm automaticlly locking when power off, then open the barrier
gate by motor wheel
4. Remote control to operate the barrier gate.
5. Auto-reverse when the boom meets obstruction.
6. Infrared photocells connector is available.
7. Loop detector connector is available.
8. Well-intergrated with car parking system equipment,with wire
control(must be switch signal).
9. Connector for traffic light(AC220V,power less than 40W)
10. Offering dry contact signal for car parking system(COM,NC,NO)
11. Auto-delay when closing(adjustable)

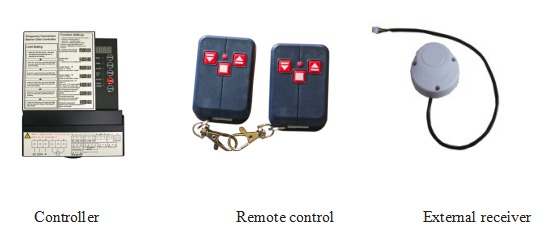

Product Accessories:
Shipment
| Sea | As for shipment by Sea, we can provide FOB, C&F, CIF, DDP and
DDU, which can satisfy all your requirements by Sea |
|---|
| Air | As for shipment by Air, if you really need the product for
installation, and for airplane, there is length limitation, can not
over 3m, so we suggest u not shipping with arm |
| Express | For Express, there is less customer choose it for shipment, because
for its price, it is high, but not quicker than Airplane, and also
there is limitation of length, but if you want to shipment by
Express, we also can provide you this service. |
Packing List:
| Title | Specification | Qty | Note |
| Boom Press Board | | 1 | For fixing the boom |
| Machine Case Press Board | | 2 | For fixing the case |
| Expansion Bolt | M12*150 | 4 | For fixing the case |
| Clutch Key | | 1 | For clutch device |
| Case Key | | 2 | For barrier gate case and cover locking |
| Balance Spring | According to length of the arm | 1 | For spare usage |
| Remote Controller | Less than 30M is available | 2 | For remote controlling |
| Instruction | | 1 | For reference |
