DC 24V Brushless Motor Parking Lot Arm Gate , Parking Gate Barrier IP54 Adjustable Speed

Shenzhen Wonsun Machinery & Electrical Technology Co. Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap DC 24V Brushless Motor Parking Lot Arm Gate , Parking Gate Barrier IP54 Adjustable Speed from wholesalers

    Buy cheap DC 24V Brushless Motor Parking Lot Arm Gate , Parking Gate Barrier IP54 Adjustable Speed from wholesalers
    • Buy cheap DC 24V Brushless Motor Parking Lot Arm Gate , Parking Gate Barrier IP54 Adjustable Speed from wholesalers
    • Buy cheap DC 24V Brushless Motor Parking Lot Arm Gate , Parking Gate Barrier IP54 Adjustable Speed from wholesalers
    • Buy cheap DC 24V Brushless Motor Parking Lot Arm Gate , Parking Gate Barrier IP54 Adjustable Speed from wholesalers
    • Buy cheap DC 24V Brushless Motor Parking Lot Arm Gate , Parking Gate Barrier IP54 Adjustable Speed from wholesalers

    DC 24V Brushless Motor Parking Lot Arm Gate , Parking Gate Barrier IP54 Adjustable Speed

    Ask Lasest Price
    Brand Name : WONSUN
    Model Number : DZ-138
    Certification : CE/SGS
    Price : USD225
    Payment Terms : T/T,Western Union,Money Gram, Trade Assurance,Paypal etc.,
    Supply Ability : 1000 Sets/Month
    Delivery Time : 3-7 working days after received your payment
    • Product Details
    • Company Profile

    DC 24V Brushless Motor Parking Lot Arm Gate , Parking Gate Barrier IP54 Adjustable Speed

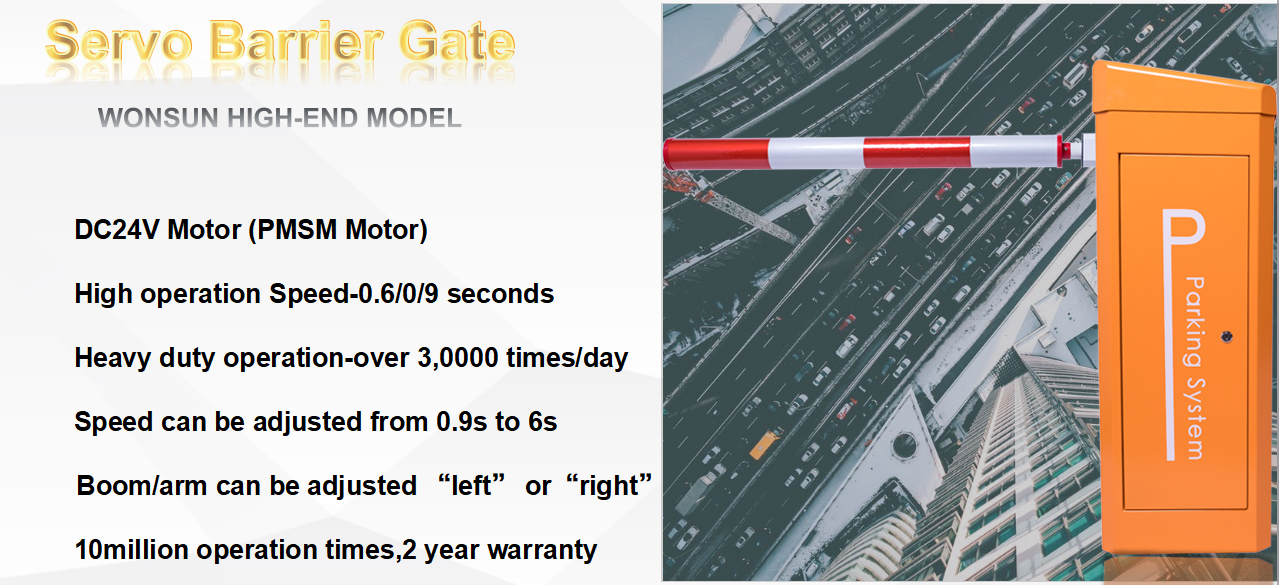

    DC 24V Brushless Motor Parking Barrier Gate Car Parking Barrier With LED Arm
    Technical Specifications
    Name
    DC 24V Brushless Motor Parking Lot Arm Gate , Parking Gate Barrier IP54 Adjustable SpeedDC 24V Brushless Motor Parking Lot Arm Gate , Parking Gate Barrier IP54 Adjustable SpeedDC 24V Brushless Motor Parking Lot Arm Gate , Parking Gate Barrier IP54 Adjustable SpeedDC 24V Brushless Motor Parking Barrier Gate Car Parking Barrier With LED Arm
    ModelDZ-138
    Size352*312*959mm
    Rating VoltageAC90V~AC264V,DC24V,solar power,wind power
    Coloryellow,orange,blue,red,black,customized
    Motor Power100W
    Speed Option0.6S,0.9S,4S,adjustable
    Material2.0mm galvanized plate or cold roll plate with epoxy paint
    Weight55 KG
    Operation TestingMore than 10 million times
    Arm Option

    Straight arm, 1-6 m for option, 45*80mm or 45*100mm

    Folding arm, 1-4.5 m for option, 90 degree or 180 degree

    Fence arm, 1-5m for option, two fence or three fence

    Working Temperature-45°C — +85°C
    Remote Control Distance100meters
    ApplicationSuitable for Highway, toll station, open-parking ground, underground parking, community,shopping center

    Functions&Features


    1. power off automatic gate, no clutch design, without human intervention.

    2. use the single compression spring balance device,no noise,not easy to fatigue and break ,easy to adjust,safe and reliable.

    3. a variety of input and output modes can be selected, often open and close can be selected.

    4. rod angle can be adjusted from 60~90 degrees, 10 degree resolution.

    5. closing speed can be adjusted, 0.9s, 1.3s.

    6. open/close signal relay switch output.

    7. barrier gate running state signal OK output.

    8. alarm signal output.

    9. R&G traffic light relay signal outpue.

    10. external vehicle detection anti-hit interface,infrared sensor anti-hit interface.

    11. counting mode interface.

    12. preferential anti-hit function.

    No matter the barrier gate is in which state, when the operator gives a opening boom command through the triple key, software or remote control button, the barrier gate will give priority to the implementation of the opening operation.

    13. anti-hit and rod droped protection function.When the car hits boom,the boom will be droped automatical to avoid the damege on the car and barrier gate.

    14. delay rod closing optional function.

    15. high sensitive auto-reverse function.

    16. parking lot system interface.

    17. RS285 or RS232 network communication control open/close interface.(no need to install commnunication moudle)

    18. anti-crash alarm signal interface.

    19. direction exchange is easy.

    20. adjustable speed port.

    21. high strength precision cast steel parts



    Packing List


    TitleSpecificationQtyUnitNote
    Barrier gate boom1Piece
    Machine case press board2pieceFor fixing case
    Expansion boltM16X1504setFor fixing case
    Supporting pole1pieceOptional part
    Expansion boltM84unitFor fixing boom
    Boom fixed screwsM12*702unit
    Case Key2unit
    Balance spring1unitFor spare usage
    Remote controller2unit
    Machine control1unit
    Instruction1piece

    Service Items

    1. Two year’s free servicing is supplied (not including the arm and remote controller). In the condition
    of complying with the operating instruction, without the unauthorized maintenance of the parts and the
    machine have no obvious mechanical damage, we will provide a quality assurance for the barrier gate
    product from the date of use for a period of two years or from the date of shipment up to three years
    including all mechanical and electronic components other than special consumables.
    2. Lifetime charged servicing is offered.
    3. Technology servicing is supplied.
    * The following situations are charged for servicing (or replacement):
    1. Broken by wrong installation;
    2. Broken by improper voltage;
    3. The surfaces of the system destroyed by wrong installation or use.
    4. Broken by natural disaster.
    5. Overdue.
    6. Servicing items out of the promises.
