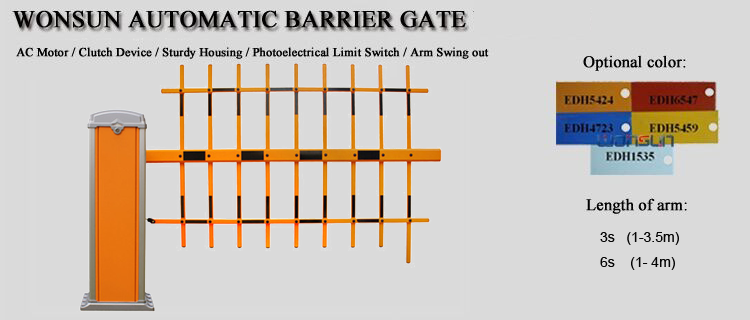

Automatic Entrance Car Park Barriers For Intelligen Parking Barrier
System
| Model | WSTP-121 |
| Size | 335*335*935 mm |
| Voltage | AC 220V/110V±10%, 50/60HZ |
| Rated Power | 120W |
| Operation time | 3s,6s. Customized |
| Working Temperature | -40℃~+75℃ |
| Material | Galvanized plate or Cold roll plate, 2.0mm thickness sheet 3 years without rust, shedding and fading |
| Spring And Bearing | Heat Treatment: more durable, more than 5 million times through
operation testing |
Remote Control Distance | Usually more than 30 meters, if there is less obstacles, even 50
meters or more |
| Packing Size | 1020*375*467mm , with seven layers carton case inside with air bubble film for protection |
| Delivery | By Sea: big order(more than 100 sets), Cheap, suggested By Air: small order(1-15 sets), quick and cheap, suggested |
Advanced Features
1) Manual release
2) Machine core with compression spring, effectively avoids the
accidents caused by spring breaking
3) Die-casting aluminum alloy motor, precision and good at thermal
radiating
4) Motor cooling fan, solving the problem of heat-protection
5) Double safety limit switches (photocell electrical limit
switch/motor memory sensor)
6) Reversing on obstacle
7) Auto-closing
8) Support the INFRARER PHTOCELL for anti-bumping function
(optional)
9) Support the external and internal VEHICLE LOOP DETECTOR
(optional)
10) Traffic light interface
11) Wire control (switch signal)/ Remote control (418MHZ)
12) RS485 communication module (optional)
Each barrier gate will include:
| 1 pcs Gate Barrier |
| 1 pcs arm boom (from 1m to 6m can customised) |
| 1 pcs control panel(built inside) |
| 2 pcs remote controllers |
| 1 pcs manual book |
Packaging & Shipping
1. Strong carton case with cushion for safety, air bubble film
inside for protect ing the apperance
from damaging.
2. As for wooden crate packing, it is USD$ 10/ps; for wooden case
packing, it is USD$ 32/ps.
3. As for shipping, we can send you the goods by air, sea and
express, which according to your
detail requirements.
Company information:
With WONSUN, your job gets easier.
Our factory are professional in making automatic barrier gate,
swing barrier,flap barrier, sliding
barrier, tripod turnstile, full height turnstile and so on.
We keep on creating high quality and advanced technology
products.We have the actual strength
and confident to provide excellent products and service for our
customers
FAQ:
1-Can you install using loop detector or pressure sensor on it?
Yes, the barrier gate have loop detector and pressure sensor.
2-How about the guarantee and after sale service?
We have LIFETIME guarantee for our machine core, Wehave our
technical team & after- sale
services who can speak fluent Engligh.
3-How long is the leading time?
For standard item
10-50 sets: 3 working days
50-100 sets:5-8 working days
200-500 sets:7-10 working days
For special item, or need custom design package or logo, need 3-7
working days longer
4-How about the payment terms?
TT,western union,paypal, L/C
5-How do you send the products to me,how long?
As our products are big volume,and heavy duty, we suggest you to
ship by sea. You can
also choose your own shipping forwarder. it normally takes 7-60 days
depend on different
countries.
6-What is the package of the barrier gate?
Inside with a carton package.Then outside,according to the
different shipping method, they
will be packaged wooden crate
7-Can you do OEM service?
We offer below OEM services:
1)we can make custom design turnstile,or you tell us your
requirements,we can make a
design for you.
2)Can print your logo on turnstiles, can customize the retail box
packing and other things.
8-Our services:
1. For all your inquires about us or our products, we will reply
you in detail within 24 hours
2. We own techinical team & after- sale services who can speak
fluent Engligh.
3. We offer OEM services. Can print your own logo on the products ,
can customize the retail
box packing and other things.
4. We have very experienced engineers ,can help you better use it.
