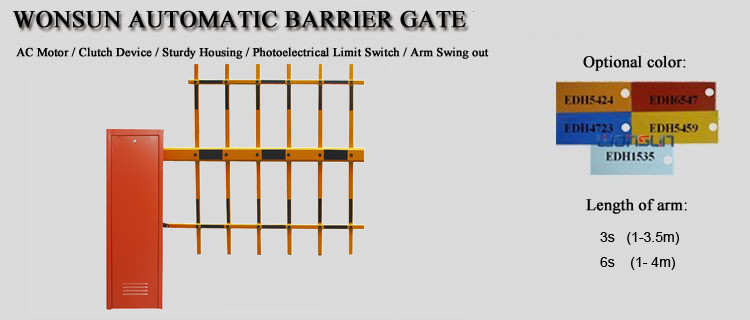

RFID System Automatic Boom Barrier Infrared Sensor Electric Barrier
Gate
| Automatic Boom Barrier Name | RFID System Automatic Boom Barrier Infrared Sensor Electric Barrier
Gate |
| Automatic Boom Barrier Size | 335*335*935 mm |
| Automatic Boom Barrier Voltage | AC 220V/110V±10%, 50/60HZ |
| Automatic Boom Barrier Rated Power | 120W |
| Automatic Boom Barrier Operation time | 3s,6s. Customized |
| Automatic Boom Barrier Working Temperature | -40℃~+75℃ |
| Automatic Boom Barrier Material | Galvanized plate or Cold roll plate, 2.0mm thickness sheet 3 years without rust, shedding and fading |
| Automatic Boom Barrier Spring And Bearing | Heat Treatment: more durable, more than 5 million times through
operation testing |
Automatic Boom Barrier Remote Control Distance | Usually, more than 30 meters, if there are fewer obstacles, even 50
meters or more |
Automatic Boom Barrier Advanced Features
1) Automatic Boom Barrier Manual release
2) Automatic Boom Barrier Machine core with compression spring, effectively avoids the
accidents caused by spring breaking
3) Die-casting aluminum alloy motor, precision and good at thermal
radiating
4) Automatic Boom Barrier Motor cooling fan, solving the problem of heat-protection
5) Double safety limit switches (photocell electrical limit
switch/motor memory sensor)
6) Reversing on obstacle
7) Auto-closing
8) Support the INFRARER PHTOCELL for anti-bumping function
(optional)
9) Support the external and internal VEHICLE LOOP DETECTOR
(optional)
10) Traffic light interface
11) Wire control (switch signal)/ Remote control (418MHZ)
12) RS485 communication module (optional)
Each Automatic Boom Barrier will include:
| Automatic Boom Barrier Items | quantity | items | quantity |
| Paint-coated case | 1 | motor | 1 |
| Transmission | 1 | limit switch | 1 |
| Barrier arm | 1 | capacitor | 1 |
| Spring | 1 | circuit board | 1 |
| Remote control device | 2 | console control device | 1 |
| Installation kit | 1 | | |
Automatic Boom Barrier Packaging & Shipping
1. Strong carton case with cushion for safety, air bubble film
inside for protecting the appearance
from damage.
2. As for wooden crate packing, it is USD$ 10/ps; for wooden case
packing, it is USD$ 32/ps.
3. As for shipping, we can send you the goods by air, sea, and
express, which is according to your
detailed requirements.
Company information:
With WONSUN, your job gets easier.
Our factory is professional in making automatic barrier gates,
swing barriers, flap barriers, sliding
barrier, tripod turnstile, full height turnstile, and so on.
We keep on creating high-quality and advanced technology products.
We have the actual strength
and confident to provide excellent products and service for our
customers
Communication with customers
1. The Automatic Boom Barrier motor works but there is no reaction on the arm.
a. Please check whether the clutch device is locked or not.
2. There is too much vibrant when the boom is rising or falling.
a. Please check whether the shock absorption rubber is broken or
not, if yes, change a new one.
b. Please check whether the balance spring is overused and
distorted. If yes, change a new one.
b. Please check whether the balance spring is overused and
distorted. If yes, change a new one, or spin
the bottom adjust nut.
3. The Automatic Boom Barrier boom could not rise or fall to the end.
a. When changing a long boom to a short one, please readjust it.
b. The sensor does not plug well, please check it.
c. The " Speed adjust switch" is wrong adjust, please readjust it.
4. The distance of the remote control decreases.
a. Check whether the charge capacity of the remote controller is
enough or not.
5. There is no reaction when pressing the remote controller
buttons.
A, Please check whether the power is supplied to the barrier gate
or not.
b. Please check whether the fuse is burnt out or not.
c. Please check whether the code both in the remote controller and
the control board are accordant or not.
6 There is no reaction on the motor when the user changes a control
board.
a. Please check whether the capacitance is correctly fixed or not.
b. Please check whether the sensor is right inserted or not.
