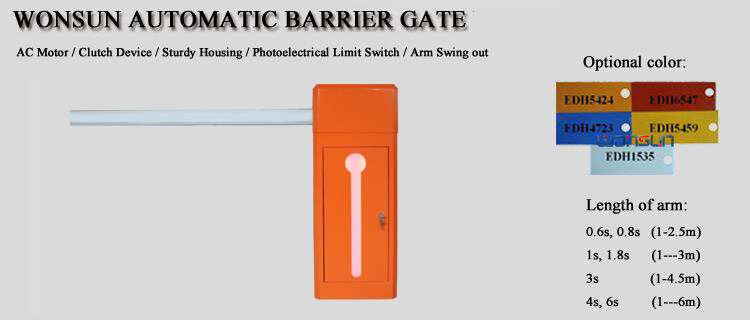

Automated Motorised Boom Gate Vehicle Barrier Gate Parking Barrier
Specifications:
- 0.6 second fastest action and 100% duty cycle operation with 5 million MTBF
- Easy installation and maintenance reduces your labor cost
- Heavy-duty and simple-design housing
- System automatically self-checks operation status and reports
errors
- Sine lever drive mechanism ensures smooth landing of boom without
shaking
- Anti-collision protects boom arm and vehicle (optional)
- Safety--- Anti-hit by pressure resistance bounce
- Safety--- Anti-hit by Loop Detector (Optional)
- Safety--- Anti-hit by IR photocell (Optional)
- Safety--- Anti-hit by “Opening Priority”
- Closing Priority
- Automatically close after the given time
- Automatically close or open by loop detector (Optional)
- Manually control in case of no power
- Boom open up fully or close down in case of power failure
- Anti-condensation in cold climate
- Transparent plastic covers on Control Board
Technical Data:
| Model | WSTP-127 |
| Size | 320*280*935 mm |
| Voltage | AC 220V/110V±10%, 50/60HZ |
| Rated Power | 120W |
| Operation time | 0.6s, 1s, 1.8s, 3s,4s,6s. Customized |
| Working Temperature | -40℃~+75℃ |
| Material | Galvanized plate or Cold roll plate, 2.0mm thickness sheet 3 years without rust, shedding and fading |
| Spring And Bearing | Heat Treatment: more durable, more than 5 million times through
operation testing |
Remote Control Distance | Usually more than 30 meters, if there is less obstacles, even 50
meters or more |
| Packing Size | 1020*375*467mm , with seven layers carton case inside with air bubble film for protection |
| Delivery | By Sea: big order(more than 100 sets), Cheap, suggested By Air: small order(1-15 sets), quick and cheap, suggested |
Functions & Features
1. Manual release
2. Machine core with compression spring, effectively avoids the
accidents caused by spring breaking
3. Die-casting aluminum alloy motor, precision and good at thermal
radiating
4. Motor cooling fan, solving the problem of heat-protection
5. Double safety limit switches (photoelectricity limit
switch/motor memory sensor)
6. Reversing on obstacle
7. Auto-closing
8. Support the INFRARER PHTOCELL for anti-bumping function
(optional)
9. Support the external and internal VEHICLE LOOP DETECTOR
(optional)
10. Traffic light interface
11. Wire control (switch signal)/ Remote control (418MHZ)
12. RS485 communication module (optional)
Gate Arm Length Optional:
Gate Arm Type:
1. Straight arm lengt size : 100*45mm. 80*45mm
2.Retractable arm size: 86*45mm
Parking & Shipping:
| Packing list |
| Name | Specifications | Quantity | Remarks |
| Machine core | Good in working | 1 | Main part |
| Barrier arm | Straight, folding or fence arm | 1 | Optional |
| Boom press board | | 1 | Fixing the boom |
| Self-tapoing screw | ST4*16 | Fixing the boom |
| Self-tapoing screw | st3*10 | 4 | Fixing the boom |
| Supporting pole | | 1 | Fupporting the boom |
| Expanion bolt | M16*150 | 4 | Fixing the case |
| Hexagonal Inner Screw | M8*35 | 4 | fixing the case |
| Clutch key | | 1 | clutch device |
| Case Key | | 2 | for case and cover locking |
| Balance spring | According to length of barrier arm | 1 | for sapre usage |
| Remote emitter | less than 30m is available | 1 | For remote control |
| Remote conrol handles | less than 30m is available | 2 | For remote control |
| Instruction | in English | 1 | For reference |
| RS485 interface | | 1 | Optional |
| Disc | | 1 | Optional |
| Communication Mould | | 1 | Optional |
| Cover head | | 1 | 3 years without fading |
| Expanion nut | M8 | 4 | Fixing the supporting pole
|
FAQ:
1. Are you manufacturer or trade company?
We're professional manufacturer who has our own factory in Shenzhen
Pingshan since 2007.
2. What is your MOQ?
As for usual order, there is no MOQ; For OEM order, at least 30
sets.
3. What is your delivery time?
As for usual order, it is 3-5 days after received your payment with
50 sets order quantity.
For OEM order, it is 7-15 days after receieved your payment with 30
sets order quantity.
4. What is the terms of payment?
30%-40% advance deposite, 60%-70% balance before shipment for large
quantity.
5. How long will your gate barrier working?
Gate barrier life span is 5-10 years.
6. What should we do if there have problems during using?
My dear friend, We have 1 year guarantee. Any gate barrier problems
you have, Welcome email or
call me! We will provide our best professional service for you.
7.How to import your machines?
* We will prepare gate barrier and shipment for you after payment;
* We will give you bill of loading after gate barrier depart our
shipping port;
* Our shipping agent will contact you when gate barrier arrival
