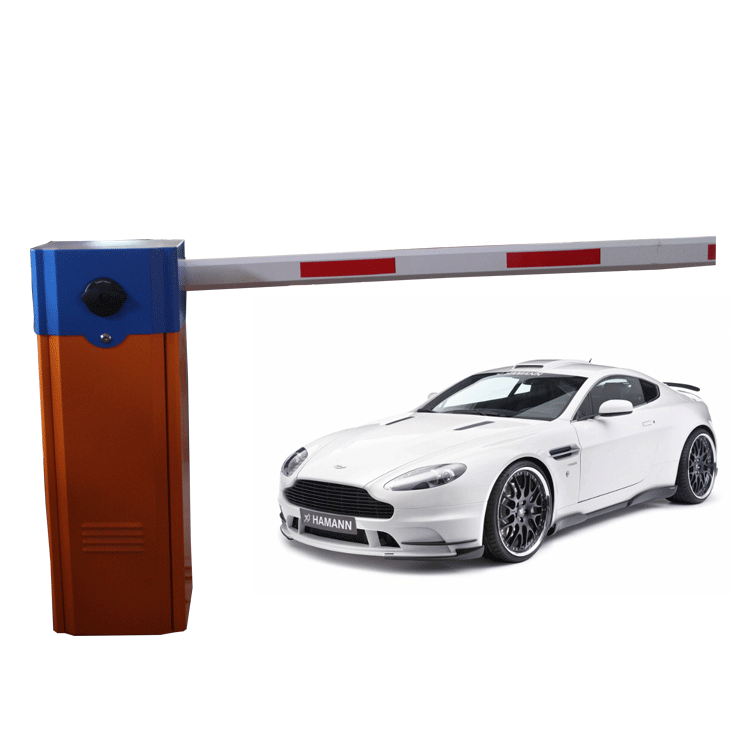

AC Electric Motor Auto Parking Barrier Gate With Swing Out Function

Parking Barrier Gate Technical Data:

1) Parking Barrier Gate Working temperture:-35℃-75℃

2) Parking Barrier Gate Humidity:≤90%

3) Parking Barrier Gate Power Supply: 220v±10%50/60Hz 110v±10%50/60Hz

4) Parking Barrier Gate Rated Power:120W/100W

5) Parking Barrier Gate Motor Rotational Speed:1400rpm

6) Parking Barrier Gate Protection Degree: IP44

7) Parking Barrier Gate Remote Control Distance:≤50m

8) Parking Barrier Gate Max Boom Length:8m

Parking Barrier Gate Parking Barrier Gate Parking Barrier Gate Parking Barrier Gate Parking Barrier Gate Parking Barrier Gate Parking Barrier Gate Parking Barrier Gate Parking Barrier Gate Parking Barrier Gate Parking Barrier Gate Parking Barrier Gate Parking Barrier Gate Parking Barrier Gate Parking Barrier Gate Parking Barrier Gate Parking Barrier Gate Parking Barrier Gate Parking Barrier Gate Parking Barrier Gate Parking Barrier Gate Parking Barrier Gate Parking Barrier Gate Parking Barrier Gate Parking Barrier Gate Parking Barrier Gate

Anti-collision protects boom arm (optional)

Once the anti-collision mechanism is installed, it will protect the boom arm not to being damaged once

boom

the arm collided with a vehicle.

Safety--- Anti-hit by pressure resistance bounce

While moving down, the arm will immediately go back to its vertical position once it is obstructed by an

imposed force, which protects the vehicle or person not to being hit by a boom arm. The sensitivity is

adjustable.

Safety--- Anti-hit by Loop Detector (Optional)

While the barrier boom is moved down If a coming vehicle is detected to be existing on the ground

induction coil, the arm will go back to a vertical position immediately until the loop input is dismissed

and then the arm will go down immediately.

Safety--- Anti-hit by photocell (Optional)

While the arm moving down, If infrared transportation between the transmitter and receiver is blocked by

a human or vehicle, the arm will go back to a vertical position immediately. The arm will automatically

close once the infrared transportation recovers.

Safety--- Anti-hit by “Opening Priority”

If a vehicle is coming while the arm moving down, the arm will immediately go back to a vertical position

once an open command is given, which protects the vehicle not to being hit by an arm.

Automatically Close by loop detector (Optional)

If a loop detector is installed, after the vehicle passes the barrier will automatically close once the loop

input was triggered

Automatically open by loop detector (Optional)

If a loop detector is installed, when the barrier boom is in a horizontal position, the barrier boom will go up immediately once the loop input is triggered

Manually control in case of no power.

Once the power is off, just open the cabinet and manually control the barrier by a gear mechanism.

Also, barrier boom can be manually locked in any position between horizontal and vertical, the

lock status will remain until unlocked manually.

Boom to open up fully or close down in case of power failure

If power is suddenly off while the boom is closing, the boom will automatically close down fully if the angle

between boom and vertical plane beyond 45 degrees. If a power failure occurs during boom opening,

boom will automatically continue to open up fully if the angle between the boom and the level surface

beyond 45 degrees.

Anti-condensation in cold climate

The barrier maintains low power consumption even without closing and opening input, which will

keep the motor at a normal temperature. The lubricant will not be frozen so the barrier will keep

working in a frozen environment.

Transparent plastic covers on the Control Board.

A transparent plastic covers the Control Board to make Control Board waterproof and dust

proof also protects the operator.

Parking Barrier Gate Packing List

Parking Barrier Gate Parking Barrier Gate Parking Barrier Gate Parking Barrier Gate Parking Barrier Gate Parking Barrier Gate Parking Barrier Gate Parking Barrier Gate Parking Barrier Gate Parking Barrier Gate Parking Barrier Gate Parking Barrier Gate Parking Barrier Gate

Service Of Aftersale

1. One year's free servicing is supplied( not including the arm)
2. Lifetiom charged servicing is offered.
3. Technology servicing is supplied
The following situations are charged for servicing (or changing):
1. Broken by wrong installation.
2 Broken by improper voltage.
3. The surfaces of the system were destroyed by the wrong installation our use.
4. Broken by natural disaster.
5. Overdue
6. Servicing items out of our promises.
The upgrade and improvement of the product won't be notified if there is any.
The explaining authority of this product instruction and service article belongs to the production factory.

For the things that most customers want to know:

1. Parking Barrier Gate MOQ: for our usual order, there is no MOQ; But for customized orders, like customized color, printing LOGO, and corrosion protection base, the MOQ is 30 sets.

2. Delivery Time: as for usual orders, 3-7 days when we receive your advance deposit or full payment(including Saturday), For customized orders, it is 10-15 days after receiving your payment(including Saturday)

3. Production Potential: 80 sets of barrier gates finished in one day for the usual order, for customized order, according to your detailed requirements

4. Quality Control: 3 control lines and 6 QC for Checking, first is a motor testing line which can promise you a good and durable motor; second is the machine core testing line which can promise you stable function; and final is the barrier gate testing line which can promise you perfect working with its required boom with our experienced technicist's debugging

5. Service and Support: as for presales service, we will provide all the information you need and the questions you asked; for aftersales, we will offer long-term technical support, and we're sure that any of your feedback will receive our careful attention and prompt reply.

6. Warranty: 12 months Since the barrier gate you receive

7. Delivery Way: we can send the goods to you by Sea, Airplane, and Express, but you need to tell us which kind of way you prefer and relative information. For example, if you want to deliver by sea, please kindly send us the shipping requirements, like FOB or CIF, and your nearby port.

8. Payment: for sample order: full payment; for usual order, 30-40% advance deposit, balance before shipment for large quantity.

As for here, if you have any pending orders or inquiries, please kindly feel free to contact us, we're sure that any of your feedback will receive our careful attention and prompt reply.
