Automated Parking Vehicle Barrier Gate , car park access barriers Boom Max 6 Meters

Ask Lasest Price
Brand Name :	WONSUN
Model Number :	DZ-132A
Certification :	CE
Price :	Negotiable
Payment Terms :	T/T,Western Union,Money Gram, Trade Assurance,Paypal etc.,
Supply Ability :	1000 Sets/Month
Delivery Time :	3-7 working days after received your payment

Add to Cart

Product Details
Company Profile

Automated Parking Vehicle Barrier Gate , car park access barriers Boom Max 6 Meters

Automated Parking Vehicle Barrier Gate , car park access barriers Boom Max 6 Meters

Technical data:

Name	Barrier gate, Parking barrier,Boom barrier
Model	DZ-132A

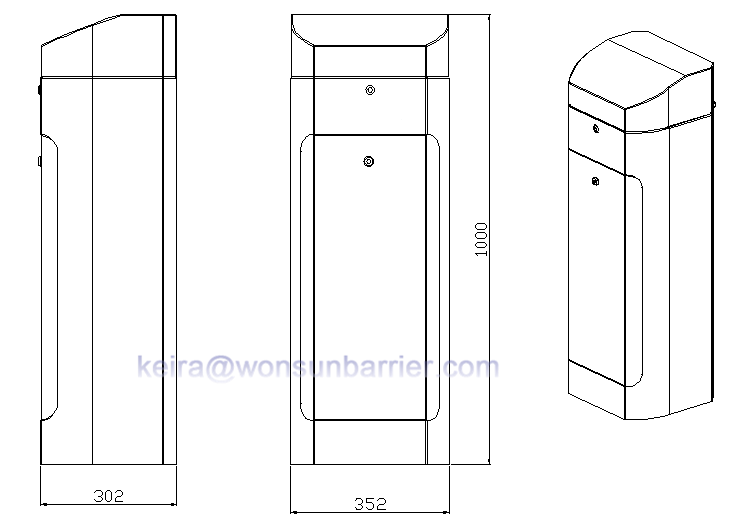

Size	3023521000mm
Rating Voltage	AC 220/110V ±10%, 50/60Hz
Motor Power	120w
Speed Option	1.8s; 3s; 6s
Material	1.5mm galvanized plate or cold roll plate with epoxy paint
Weight	55 KG
Operation Testing	More than 5 million times
Arm Option	Straight arm, 1-6 m for option, 4580mm or 45100mm Folding arm, 1-4.5 m for option, 90 degree or 180 degree Fence arm, 1-5m for option, two fence or three fence
Working Temperature	-45°C — +75°C
Remote Control Distance	Less than 30m
Package	Packing size: 1040352470mm, standard export carton case Inside with PE foam for collision protection
Application	Suitable for Highway, toll station, open-parking ground, underground parking, community,shopping center

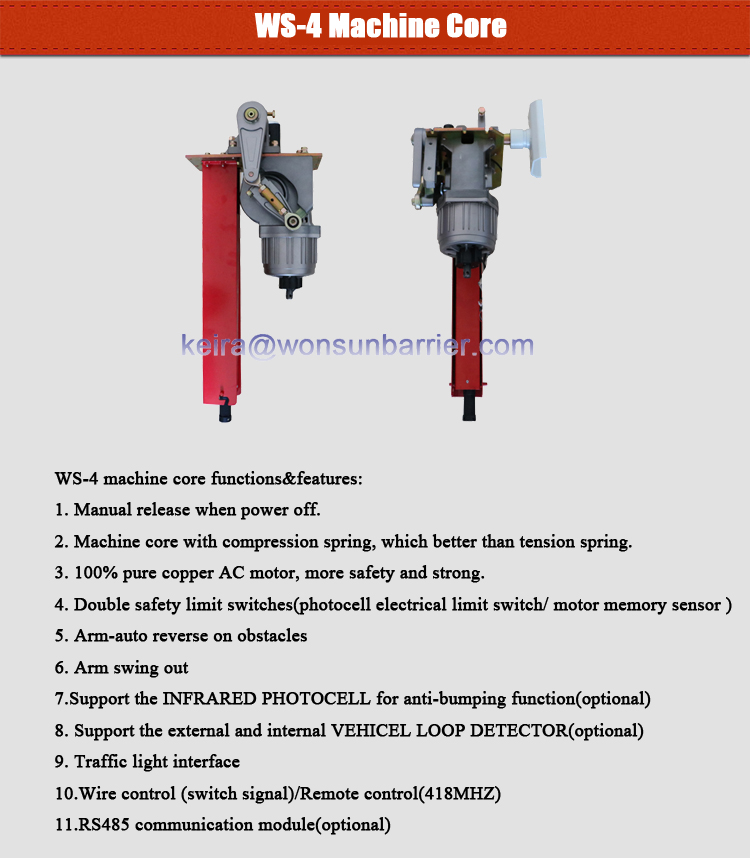

Functions&Features:

1) Machine core with tension spring, effectively avoids the accidents caused by spring breaking
2) Die-casting aluminum alloy motor, precision and good at thermal radiating
3) Double safety limit switches (photocell electrical limit switch/motor memory sensor)
4) Arm swing out
5) Support the INFRARER PHTOCELL for anti-bumping function (optional)
6) Support the external and internal VEHICLE LOOP DETECTOR (optional)
7) Traffic light interface
8) Wire control (switch signal)/ Remote control (418MHZ)
9) RS485 communication module (optional)

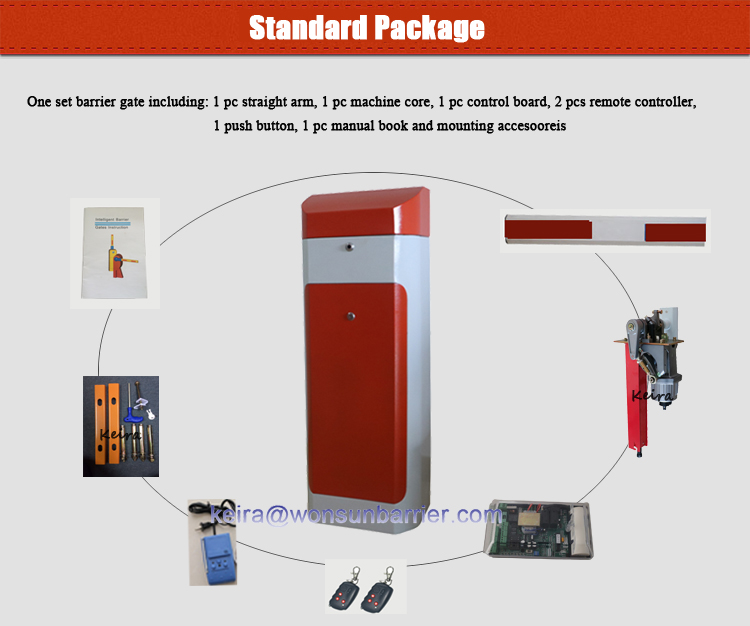

Parking list:

Items	quantity	items	quantity
Paint-coated case	1	motor	1
Transmission	1	limit switch	1
Barrier arm	1	capacitor	1
Spring	1	circuit board	1
Remote control device	2	console control device	1
Installation kit	1
