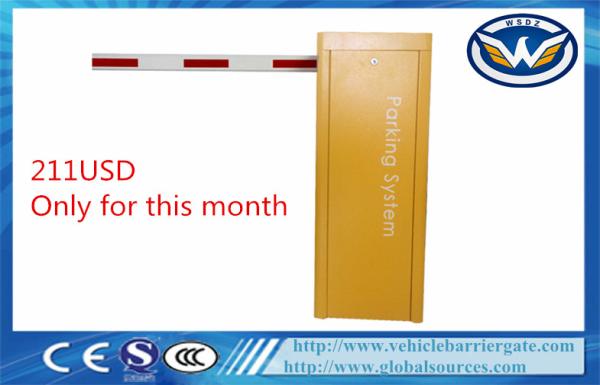

1.5M Cold Rolled Steel Sheet Electric Barrier Gate , Auto Car Park
Access Barriers
DZ-130 is our typical mode of barrier gate for parking system
application. This mode with strong structure, the body made by 2mm
cold-rolled plate heavy duty case with IP54 protection, surface
with outdoor type good quality thermos-stability spray painting.
The arm support straight, fold, and fence bar for suit different
application, user can open/close arm by remote control, push key
and manual handle. Here introduce more details as below:
Specifiction
| Model | DZ-130 |
| Working Temperature | -40℃～+75℃ |
| Voltage | 220V±10%, 110V±10%, 50/60HZ |
| Rated power | 80W |
| Relative humidity | ≤90% |
| Remote control distance | ≥30m |
| Net weight | 50kgs |
| Speed | 1.8S,3S, 6S |
| Max boom length | 6 meters |
| Motor Rotational speed | 1400rmp |
| Protection Degree | IP44 |
Features:
1. This barrier gate is widely used for the facilities of parking
lots, traffic or toll system, we don’t suggest for high way and
other heavy duty application.
2. Arms can be chosen from 2 meters to 6 meters.
3. Manual handle can be used to open the arm in case power off.
4. All the process is soft without any noise and shaking.
5. This barrier gate has many input terminals for photocell,
Airwave switch, loop detector, LED light bar, toll gate system and
output terminals for flashing light.
For the things that most customer want to know:
1. One year's free servicing is supplied( not including the arm)
2. Lifetiom charged servicing is offered.
3. Technology servicing is supplied
The following situations are charged for servicing (or changing):
1. Broken by wrong installation.
2 Broken by improper voltae.
3. The surfaces of the system destroyed by wrong installation our
use.
4. Broken by natural disaster.
5. Overdue
6. Servicing items out of our promises.
The upgrade and improvement of the product won't be notified if
there is any.
The explaining authority of this product instruction and service
article belong to the production factory.
