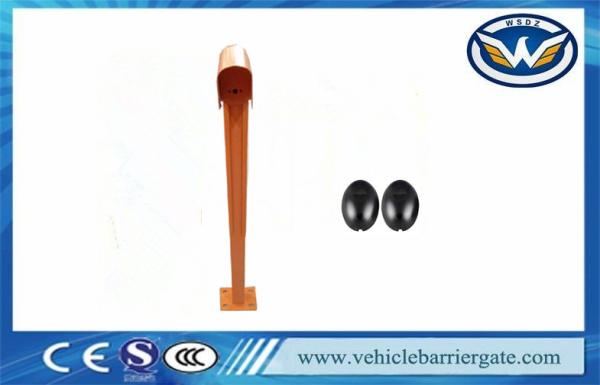

20M Barrier Gate Accessories Automatic Door Infrared Photocell
Sensor
Barrier Gate Accessories Advantages:
1. Passed CE, FCC, ROHS, IP55 certification
2. With rain rainproof design
3. Unique digital filter circuit design, strong anti-false alarm
ability
4. With high levels of anti-RFI/EMI capability
5. Fully sealed design,rain-proof(fog),dust-proof(worm),suitable
for hostile environment
6. The product suits an access control system and a home intruder alarm system. Its
installation places are doors, windows, passages, barriers, and so on.
7. The adopted 12-24V wide voltage design can be used with various
alarm panels and access control systems.
8. Detecting distance 20m
Barrier Gate Accessories Specification:
- Barrier Gate Accessories Power supply: 12 or 24V AC/DC
- Barrier Gate Accessories Theory: sensors for gate opener, infrared sensor
- Barrier Gate Accessories color: to be black or OEM
- Barrier Gate Accessories Input : r*15ma - t*30ma
- Barrier Gate Accessories Relay output: 1 a max *36 v
- Barrier Gate Accessories Rotation angle: 0~180°
- Barrier Gate Accessories working current: emitter≤8ma; receiver≤30ma
- Barrier Gate Accessories photocell wavelength: 940mm
- Barrier Gate Accessories receiving range: <=20m
- Barrier Gate Accessories Color: Black or OEM
- Barrier Gate Accessories beams: 2 beams
- Barrier Gate Accessories working temperature: -20~+60c
About Barrier Gate Accessories shipping:
- FedEx/DHL/UPS/TNT for samples, Door-to-Door;
- By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
- Customers specifying freight forwarders or negotiable shipping
methods!
- Delivery Time: 2-7 days for samples; 5-25 days for batch goods.
Why choose us?
1. One year's free servicing is supplied( not including the arm)
2. Lifetiom charged servicing is offered.
3. Technology servicing is supplied
The following situations are charged for servicing (or changing):
1. Broken by wrong installation.
2 Broken by improper voltage.
3. The surfaces of the system were destroyed by the wrong
installation our use.
4. Broken by natural disaster.
5. Overdue
6. Servicing items out of our promises.
The upgrade and improvement of the product won't be notified if
there is any.
The explaining authority of this product instruction and service
article belongs to the production factory.
