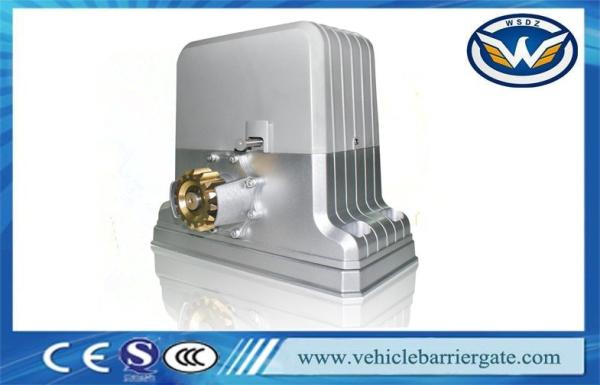

Wire Control Electric Gate Motor Or Slide Gate Motor
Key words: sliding gate opener ,sliding gate operator , sliding gate motor,
sliding door opener , sliding door operator , sliding door motor,
automatic sliding gate opener ,solar sliding gate opener , Dc motor
, gate opener , automatic door operators
Before you order ,something you need to know
WHY CHOOSE US ?
Shenzhen Wonsun Machinery&Electrical Technology Co.,Ltd.,which
manufactured the latest automatic technology and intelligent desigh
ahead in this field .Especially slide gate motor. With high quality
and competitive price ,makes it our top-sell .And we believe our
barrier gate series can meet your high quality demand.
| Working Voltage | AC220/110V |
| Frequency | 50/60HZ |
| Working humidity | ≤85% |
| Power | 350W |
| open style | sliding |
| base material | alluminum |
| Remote control distance | ≥30m |
| Maxload weight | 1500KG |
| Net weight | 8.5KG |
| Manual Release | Yes |
Functions& Features
1. Max gate weight 800kg
2.New design of spring limit switch downward
3.Each set include one Motor, one control board, 2pcs transmitters
two manual release key and one spring limit switch
4.Mcu is supplied to control the gate operator
5.Keypad/single button interface
6.Photo beam safety beam interface
7.User can select Auto-close function
8.Manual key release design for emergency purposes
Sliding gate operators description:
Single phase
Speed up to 600mm per second
Manual override release clutch
Basic features means easy to set up
Soft starting and stopping function
All electric enclosed in a protective enclosure
100% duty cycle
Others information of sliding gate opener:
FAQ about motor:
1 The motor runs but the sliding gate operator doesn't work.
A: Check whether the clutch is closed.
2 The power indicator light doesn't flash and the key doesn't
react.
A: Check whether power is connected right.
B: Check whether the fusel is burned, it yes, please exchange it.
3 The opening and closing limit can not work.
A: Check whether the limit adjustment switch is installed right.
B: Check whether the limit iron is installed right. Adjust the
position of the limit iron.
4 Crash proof is not effective.
A: Check whether the connection of crash proof is correct.
B: Check whether the photocell is installed right.
C: Check whether the connection of the wire of the loop detector is
right .
5 When the gate just close up, it turns to open.
A: Check whether the voltage is normal.
B: If the crash proof equipment is installed, please check whether
it works well.
6 The remote control doesn't work
A: Check whether the battery is low. If yes, change it.
B: Check whether the code of the remote control is the same with
the code of the control panel.
| Packing list |
| Name | Quantity | Unit | Remark |
| Sliding gate operator | 1 | set | Necessary |
| Remote control | 2 | pcs | Necessary |
| Internal hexangular bolt | 4 | pcs | M8*40 |
| Internal hexangular bolt | 4 | pcs | M6*16 |
| Left limit iron | 1 | pcs | Necessary |
| Right limit iron | 1 | pcs | Necessary |
| Base board | 1 | pcs | Necessary |
| Release key | 2 | pcs | Necessary |
| Manual | 1 | pcs | Necessary |
| Infrared photocell | 1 | set | Optional |
| Radio emitter | 1 | set | Optional |
the STAFFs you care about most
1. Any email will be checked in 5 minutes, any inquiry will be
replied within 1 hour, and any solution will be supplied in 1 day.
2. Professional R&D team and manufacturer, supply OEM & ODM.
3. Best quality, Fashion design, reasonable & competitive price,
fast lead time.
4. After-Sale Service
5.Guarantee time: 1 year
6.Delivery deadline: 3-7 workdays after payment received
7.Package: 1 set in a standard carton packing
please leave message to us about the power voltage you need .
easier way : SKYPE: pi.trista contact anything you want to know.
