Electric Sliding Gate Opener with heavy duty Swing Operator Gates
Kit Automatic Remote Control
Key words: sliding gate opener ,sliding gate operator , sliding gate motor,
sliding door opener , sliding door operator , sliding door motor,
automatic sliding gate opener ,solar sliding gate opener , Dc motor
, gate opener , automatic door operators
Before you order ,something you need to know
WHY CHOOSE US ?
Shenzhen Wonsun Machinery&Electrical Technology Co.,Ltd.,which
manufactured the latest automatic technology and intelligent desigh
ahead in this field .Especially slide gate motor. With high quality
and competitive price ,makes it our top-sell .And we believe our
barrier gate series can meet your high quality demand.
HIGHLIGHTS
1) Integrated mechanical and eletrical,all functions on one
controller
2) Radio controller or linesto control open,close and stop
functions
3) Magenetic limit switch,the door stops when it moves to the limit
4)Accurate limit braking
5)Electronic soft-start
6)Dialing switches to adjust the motor rotation in both directions
7)Open and close limits have a self-locking function
8)Intelligent operation-if an obstacle is detected when the door is
closing,it will reverse to open,then after 10 seconds it attempts to close automatically
unless you press the stop key-stroke.
9)Movement indication-the indicator lights up when the door is
moving.
10)Optional line control or remote control
Product Description

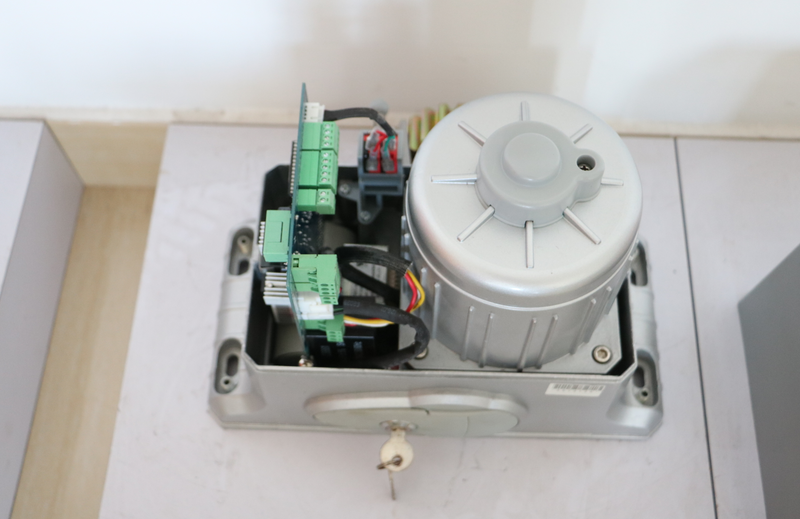

| Product name | Wonsun Sliding gate motor WS 102 |
| Voltage | 220V± 10% |
| Frequency | 50HZ |
| Current | 2.7A |
| Motor Voltage | AC220V/110V |
| Capacitor | 20μ F |
| Power | 350W |
| Torque | 350nm |
| Motor Number | M=4 |
| Motor Speed | 1350rpm |
| Gear Speed | 58.8rpm |
| Travel Speed | 11m/min |
| Remote Distance | ≥30m |
| Max-load Weight | 1800KG |
| Net Weight | 10KG |
| Manual Release | Yes |
| Working Temperature | -40°C~55°C |
| Overload Protection Temperature | 130℃ |
| Motor Making Technical | die casting aluminum alloy |
Functions& FeatureS
Sliding gate operators description:
Single phase
Speed up to 600mm per second
Manual override release clutch
Basic features means easy to set up
Soft starting and stopping function
All electric enclosed in a protective enclosure
100% duty cycle
Others information of sliding gate opener:
FAQ about motor:
1 The motor runs but the sliding gate operator doesn't work.
A: Check whether the clutch is closed.
2 The power indicator light doesn't flash and the key doesn't
react.
A: Check whether power is connected right.
B: Check whether the fusel is burned, it yes, please exchange it.
3 The opening and closing limit can not work.
A: Check whether the limit adjustment switch is installed right.
B: Check whether the limit iron is installed right. Adjust the
position of the limit iron.
4 Crash proof is not effective.
A: Check whether the connection of crash proof is correct.
B: Check whether the photocell is installed right.
C: Check whether the connection of the wire of the loop detector is
right .
5 When the gate just close up, it turns to open.
A: Check whether the voltage is normal.
B: If the crash proof equipment is installed, please check whether
it works well.
6 The remote control doesn't work
A: Check whether the battery is low. If yes, change it.
B: Check whether the code of the remote control is the same with
the code of the control panel.
| Packing list |
| Name | Quantity | Unit | Remark |
| Sliding gate operator | 1 | set | Necessary |
| Remote control | 2 | pcs | Necessary |
| Internal hexangular bolt | 4 | pcs | M8*40 |
| Internal hexangular bolt | 4 | pcs | M6*16 |
| Left limit iron | 1 | pcs | Necessary |
| Right limit iron | 1 | pcs | Necessary |
| Base board | 1 | pcs | Necessary |
| Release key | 2 | pcs | Necessary |
| Manual | 1 | pcs | Necessary |
| Infrared photocell | 1 | set | Optional |
| Radio emitter | 1 | set | Optional |
the STAFFs you care about most
1. Any email will be checked in 5 minutes, any inquiry will be
replied within 1 hour, and any solution will be supplied in 1 day.
2. Professional R&D team and manufacturer, supply OEM & ODM.
3. Best quality, Fashion design, reasonable & competitive price,
fast lead time.
4. After-Sale Service
5.Guarantee time: 1 year
6.Delivery deadline: 3-7 workdays after payment received
7.Package: 1 set in a standard carton packing
