Machinery Car Parking Barrier Gate / Vehicle Access Gates For
Highway Toll System
WHAT IS IT ?
Barrier Gate, also known as the block device, was originally
introduced from abroad, the English name Barrier Gate, is dedicated
to the road on the restricted motor vehicle access channel
management equipment, is widely used in highway toll stations,
parking system management vehicle access, In the management of
vehicle access. Electric barrier can be achieved through the
wireless remote control landing gear alone, can also be through the
parking management system (IC card management system) to implement
automatic management of the state, admission card to take off the
vehicle, the appearance of parking fees automatically after the
release of vehicles.
WHY CHOOSE US ?
The Wonsun barrier gate series ,which manufactured by our
company,adopt the latest automatic technology and intelligent
desigh ahead in this field .Meanwhile our barrier gates series have
the promethean design,such as humanization clutch device,balance
device,which makes our barrier gates work more safely and
conveniently.And we believe our barrier gate series can meet your
high quality demand.
HOW TO USE ?
1. Please select the right type of the barrier gates according to
the specifications of the place.Fix the barrier gate case board
with expansion bolts.
2. Fix the boom to the boom tray with the boom press board, then
cover the boom capuche with the screws. After that ,fix the cover
of the boom to the splint and fasten them with four screws of 4*16,
and slip the cover tap with the cover by two 3*10 screws.
3. Unlock the clutch device with the clutch key clockwise .Move the
boom to the horizontal and vertical manually to make sure there is
no obstruction.Then turn on the power .
MORE DETAILS ABOUT LENGTH AND SPEED YOU NEED ,
AND THE TYPE OF ARM YOU WANT ,WELCOME CONTACT.
Before you order ,something you need to know :
| Model | WSTP-116 |
| Size | 329*301*954mm |
| Voltage | AC 220V/110V±10%, 50/60HZ |
| Rated Power | 120W |
| Operation time | 0.6s, 1s, 1.8s, 3s,4s,6s. Customized |
| Working Temperature | -40℃~+75℃ |
| Boom type | staight boom ,90°folding boom ,180° folding boom ,two fence boom
,three fence boom |
| Material | Galvanized plate or Cold roll plate, 2.0mm thickness sheet
3 years without rust, shedding and fading |
| Spring And Bearing | Heat Treatment: more durable, more than 5 million times through
operation testing |
Remote Control Distance | Usually 80-120meters, if there is less obstacles, even 150 meters
or more |
| Packing Size | 1020*375*467mm , with seven layers carton case
inside with air bubble film for protection |
| Delivery | By Sea: big order(more than 100 sets), Cheap, suggested
By Air: small order(1-15 sets), quick and cheap, suggested |
This automatic gate barrier provides a secure and convenient
solution of stopping unauthorized vehicle of giving access
:airport, shopping mall,warehouse,hotel, factories, condominium,
car rental companies, Parking Lots, Toll Gates, Goods Yards,
Railway Crossings,Highway, Hotel, Community,Bus Station,Commercial
Premises, Aparment Block ,etc

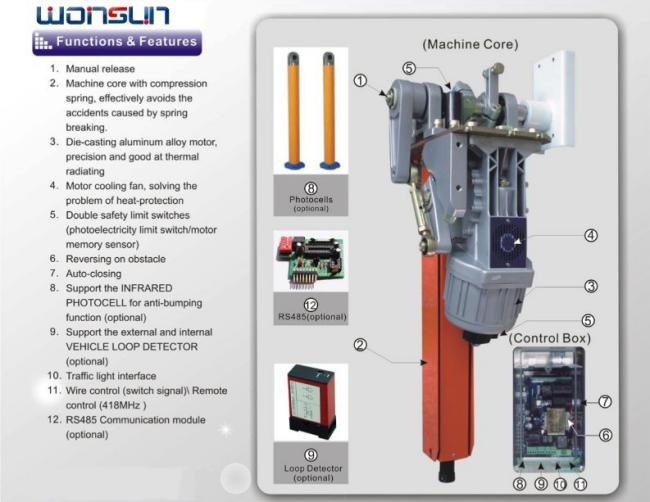

1) Manual release
2) Machine core with compression spring,effectively avoids the
accidents caused by spring breaking
3) Die-casting aluminum alloy motor,prescision and good at thermal
riadiating
4) Motor cooling fan,sloving the probelm of heat-protection
5) Double safety limit switches(photocell electrical limit
switch/motor memory sensor)
6) Reversing on obstacle
7) Auto-closing
8) Support the INFRARER PHTOCELL for anto-bumping
function(optional)
9) Suppot the external and internal VEHICLE LOOP DETECTOR(optional)
10) Traffic light interface
11) Wire control(switch signal)/ Remotte control(418MHZ)
12) RS485 communication module(optional)
First generation machine core
Packing&Shipping
We use strong carton case with air bubble filled inside to protect
products and save your cost.
boom lenghths with speeds
| description | Max boom length | Action time (s) | boom height ( m) |
| Slow speed ,straight | L ≤ 6 m | 6 | 0.83 |
| Medium speed ,straight | L ≤ 4.5 m | 3 | 0.83 |
| Quick speed,straight | L ≤ 3 m | 1-2 | 0.83 |
| Fastest speed ,straight | L ≤ 2.5 m | 0.6-0.8 | 0.83 |
| 90° Folding boom | L ≤ 5 m | 0.6-6 | 0.83 |
| 180° Folding boom | L ≤ 5 m | 0.6-6 | 0.83 |
| fence boom (2/3) | L ≤ 4.5 m | 6 | 0.9/1.5 |
