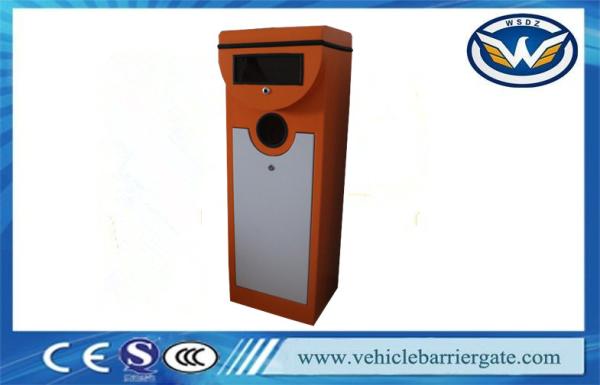

Stainless Steel Parking Traffic Barrier Gate / Automatic Car Park
Barriers Access Control
WHAT IS IT ?
Barrier Gate, also known as the block device, was originally
introduced from abroad, the English name Barrier Gate, is dedicated
to the road on the restricted motor vehicle access channel
management equipment, is widely used in highway toll stations,
parking system management vehicle access, In the management of
vehicle access. Electric barrier can be achieved through the
wireless remote control landing gear alone, can also be through the
parking management system (IC card management system) to implement
automatic management of the state, admission card to take off the
vehicle, the appearance of parking fees automatically after the
release of vehicles.
WHY CHOOSE US ?
The Wonsun barrier gate series ,which manufactured by our
company,adopt the latest automatic technology and intelligent
desigh ahead in this field .Meanwhile our barrier gates series have
the promethean design,such as humanization clutch device,balance
device,which makes our barrier gates work more safely and
conveniently.And we believe our barrier gate series can meet your
high quality demand.
HOW TO USE ?
1. Please select the right type of the barrier gates according to
the specifications of the place.Fix the barrier gate case board
with expansion bolts.
2. Fix the boom to the boom tray with the boom press board, then
cover the boom capuche with the screws. After that ,fix the cover
of the boom to the splint and fasten them with four screws of 4*16,
and slip the cover tap with the cover by two 3*10 screws.
3. Unlock the clutch device with the clutch key clockwise .Move the
boom to the horizontal and vertical manually to make sure there is
no obstruction.Then turn on the power .
MORE DETAILS ABOUT LENGTH AND SPEED YOU NEED ,
AND THE TYPE OF ARM YOU WANT ,WELCOME CONTACT.
Before you order ,something you need to know :
| Model | DZ-134 |
| Size | 1022*390*360mm |
| Voltage | AC 220V/110V±10%, 50/60HZ |
| Rated Power | 120W |
| Operation time | 0.6s, 1s, 1.8s, 3s,4s,6s. Customized |
| Working Temperature | -40℃~+75℃ |
| Boom type | staight boom ,90°folding boom ,180° folding boom ,two fence boom
,three fence boom |
| Material | Galvanized plate or Cold roll plate, 2.0mm thickness sheet
3 years without rust, shedding and fading |
| Spring And Bearing | Heat Treatment: more durable, more than 5 million times through
operation testing |
Remote Control Distance | Usually 80-120 meters, if there is less obstacles, even 150 meters
or more |
| Packing | with seven layers carton case
inside with air bubble film for protection |
| Delivery | By Sea: big order(more than 100 sets), Cheap, suggested
By Air: small order(1-15 sets), quick and cheap, suggested |
| machine core | First generation |
Advantages
100% pure copper motor :more durable ,safety and stable when
barrier gate is working .Inside with anti -frozen oil ,which can
make barrier runs normally in low temperature.
Motor cooling fan : it will operate automatically,when barrier
works in high temperature or motor works in heavy duty .
AC motor : its strong and powerful ,can easily lift up even with
additional signage installed no the barrier arm,AC motor is
maintenance free ,as there is no carbon in the AC motor ,built in
intelligent fan cool the motor during heavy usage.
Photo electrical limit switch : photo electrical limit switch uses
smart motor counter to auto detect open/close position for higher
accuracy and better stability. No more mechanical wear and tear
which causes the arm to tilts up or down.
Arm swing out : arm will swing out when hit directly by vehicle to
avoid further damage on the vehicle .
Arm auto reverse : built in smart collision detection technology
allows arm to auto reverse when hit with an obstacle during closing
to prevent further scratches & dents on the vehicle .Optional photo
beam allows arm to auto reverse earlier before hitting the vehicle
. Optional photo beam allows arm to auto reverse earlier before
hitting the vehicle.Optional rubber lining to protect the vehicle
from further damages.
Clutch device : wonsun clutch device can be conveniently unlocked
to manually open or close the arm without removing the whole top
cover or body housing . Resulting in hassle free operation and all
components inside the barrier body are safe from danger and
vandals.
Sturdy housing : housing is made with 2.0 mm cold rolled steel
sheet for extra durability to support longer arm. Housing body is
coated with epoxy paint for waterproof protection
This automatic gate barrier provides a secure and convenient
solution of stopping unauthorized vehicle of giving access
:airport, shopping mall,warehouse,hotel, factories, condominium,
car rental companies, Parking Lots, Toll Gates, Goods Yards,
Railway Crossings,Highway, Hotel, Community,Bus Station,Commercial
Premises, Aparment Block ,etc
Packing&Shipping
We use strong carton case with air bubble filled inside to protect
products and save your cost.
boom lenghths with speeds
| description | Max boom length | Action time (s) | boom height ( m) |
| Slow speed ,straight | L ≤ 6 m | 6 | 0.83 |
| Medium speed ,straight | L ≤ 4.5 m | 3 | 0.83 |
| Quick speed,straight | L ≤ 3 m | 1-2 | 0.83 |
| Fastest speed ,straight | L ≤ 2.5 m | 0.6-0.8 | 0.83 |
| 90° Folding boom | L ≤ 5 m | 0.6-6 | 0.83 |
| 180° Folding boom | L ≤ 5 m | 0.6-6 | 0.83 |
| fence boom (2/3) | L ≤ 4.5 m | 6 | 0.9/1.5 |
- Our Services
- Your inquiry concerns about our products or prices will be replied
in 12 hours
- Well-trained and experienced sales staffs answer all your enquires
influent English
- OEM & ODM, any your customized products we can help you to design
and put into production
- Protection of your sales area, ideas of design and all your private
information
- Deliver by air mail or ship for your orders
The explaining authority of this product instruction and service
article belongs to the production factory.
