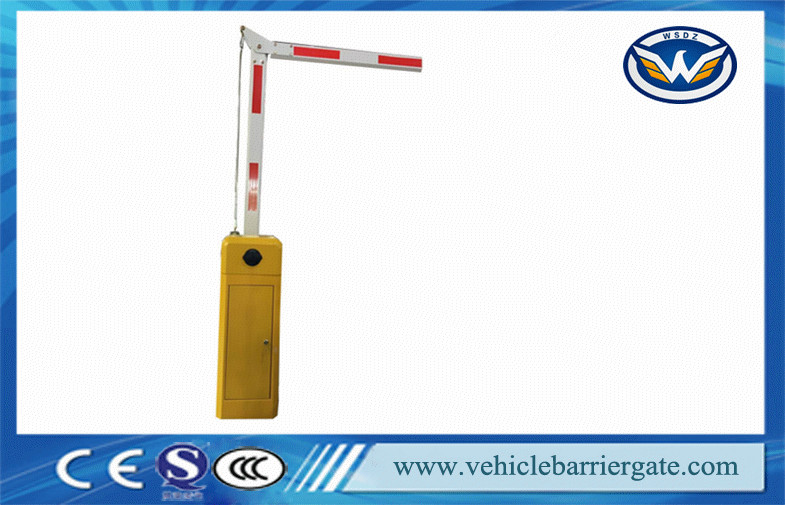

    90 Degree Folding vehicle barrier gates Boom Automation & Control Systems

    Ask Lasest Price
    Brand Name : WONSUN
    Model Number : WSTT661
    Certification : CE, ISO, SGS
    Price : negotiation
    Payment Terms : T/T,Western Union,Money Gram, Trade Assurance,Paypal etc.,
    Supply Ability : 1000 Sets/Month
    Delivery Time : 3-7 working days after received your payment
    • Product Details
    • Company Profile

    90 Degree Folding vehicle barrier gates Boom Automation & Control Systems


    90 Degree Folding vehicle barrier gates Boom Automation & Control Systems


    Specific information


    Material

    Galvanized plate or Cold roll plate, 2.0mm thickness sheet

    3 years without rust, shedding and fading

    Spring And BearingHeat Treatment: more durable, more than 5 million times through operation testing
    Remote Control Distance
    Usually more than 30 meters, if there is less obstacles, even 50 meters or more
    Packing Size1020*375*467mm , with seven layers carton case

    inside with air bubble film for protection

    DeliveryBy Sea: big order(more than 100 sets), Cheap, suggested

    By Air: small order(1-15 sets), quick and cheap, suggested


    Quick Details


    1. Working temperature:-40~+75 degree centigrade.

    2.Power: 220V±10%, 110V±10%, 50/60HZ

    3.Rated power: 80W

    4.Relative humidity: ≤90%

    5.Remote control distance: ≥30m

    6.Net weight: 56kgs

    7.Protection Class: IP54



    Service for free:

    1. One year free service is supplied(not including the arm)

    2. Lifetime charged service is supplied

    3. Technical service is supplied

    4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.

    5. Technical support and aftersales service, it is a long term relatioship between us.

    6. Price can be negotiable when you have big order quantity.


    Service for charging:

    1. Broken by wrong installation

    2. Broken by improper voltage

    3. The surfaces of the barrier destroyed by wrong installation and usage

    4. Overdue service items are out of our promise.


    Communication with customers

    Q1. Motor works but there is no reaction on the arm.
    A. Please check whether the clutch device is locked or not.
    Q2. There is too much vibrant when the boom is rising or falling.
    A. Please check whether the shock absorption rubber is broken or not, if yes, change a new one.
    B. Please check whether the balance spring is overused and distorted. If yes, change a new one.
    C. Please check whether the balance spring is overused and distorted.If yes, change a new one, or spin

    bottom adjust nut.
    Q3. The boom could not rise up or fall down to the end.
    A. When change a long boom to a short one, please readjust it.
    B. The sensor does not plug well, please chek it.
    C. The " Speed adjust switch" is wrong adjust, please readjust it.
    Q4. The distance of the remote control decreases.
    A. Check whether the charge capacity of the remote controller is enough or not.
    Q5. There is no reaction when pressing the remote controller buttons.
    A, Please check whether the power is supplied to the barrier gate or not.
    B. Please check whether the fuse is burnt out or not.
    C. Please check whether the code both in the remote controller and the control board are accordant or not.
    Q6 There is no reaction on the motor when the user changes a control board.
    A. Please check the capacitance is correctly fixed or not.
    B. Please check the sensor is right inserted or not.
