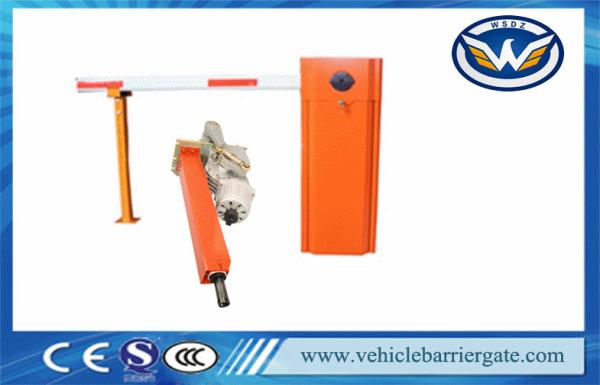

Heavy Duty Straight Boom Electric Automatic Barrier Gate Highway
Barrier Gate
Automatic Barrier Gate
1. One year's free servicing is supplied( not including the arm)
2. Lifetiom charged servicing is offered.
3. Technology servicing is supplied
The following situations are charged for servicing (or changing):
1. Broken by wrong installation.
2 Broken by improper voltage.
3. The surfaces of the system were destroyed by the wrong
installation our use.
4. Broken by natural disaster.
5. Overdue
6. Servicing items out of our promises.
The upgrade and improvement of the product won't be notified if
there is any.
The explaining authority of this product instruction and service
article belongs to the production factory.
Automatic Barrier Gate Model Selection and Differences
| Automatic Barrier Gate Boom type | Boom Length(L) | Diameter of the spring(mm) | Note |
| Straight boom | 6M≥L≥5M | 5.5/4.5 | |
| 5M≥L≥4.5M | 5.5 | Dispatching 4.5 |
| 4.5M≥L≥3M | 4.5 | Dispatching 4.5 |
| Straight boom adhesive tape | 5M≥L≥4M | 4.5M≥L≥3M | 5.5/4.5 | Dispatching 4.5 |
| 4M≥L≥3M | 3.5M≥L≥3M | 4.5 | Dispatching 4.5 |
| Folding boom | 6M≥L≥5M | 6.5/4.5 | |
| 5M≥L≥4M | 5.5/4.5 | |
| 4M≥L≥3M | 4.5 | |
| Two fence boom | 5M≥L≥4M | 6.5/5.5 | |
| Fence boom | | 4M≥L≥3M | 5.5/4.5 | |
| Three fence boom | 4M≥L≥3M | 6.5/5.5 | |
| | 3M≥L≥2M | 5.5/4.5 | |
What are the advantages of Automatic Barrier Gate?
1)The humanized clutch device: in case of power off, unlock the
clutch device and raise the boom manually. By the time the power is
supplied, lick the clutch device to make it work normally again.
2)Special Automatic Barrier Gate spring device: Both the
compression spring and tension spring can be used in the machine,
Using the compression spring can avoid accidents caused by the
tension spring.
3)Three control buttons: for boom raising, falling, and pausing.
4)Automatic Barrier Gate Boom backtrack function: the boom will
rise if hits something when falling.
5)Infrared photocell design: for avoiding the crash when the boom
falls, so as to prevent the vehicles from being pressed.
6)Both external and internal loop detectors are supported.
7)"open", "close" and "stop" controlling interfaces.
8)RS-485 communication serial interface(optional)
9)Traffic light signal connection device: red light for stop, green
light for pass.
10)Remote control and wire control for selection.
Automatic Barrier Gate Specifications
Automatic Barrier Gate Model | DZTP-128-B |
Automatic Barrier Gate Working Temperature | -40℃～+75℃ |
Automatic Barrier Gate Voltage | 220V±10%, 110V±10%, 50/60HZ |
Automatic Barrier Gate Rated power | 80W |
Automatic Barrier Gate Relative humidity | ≤90% |
Automatic Barrier Gate Remote control distance | ≥30m |
Automatic Barrier Gate Net weight | 48kgs |
Automatic Barrier Gate Speed | 1S,1.8S,3S, 6S |
Automatic Barrier Gate Max boom length | 6 meters |
Automatic Barrier Gate Motor Rotational speed | 1400rmp |
Automatic Barrier Gate Protection Degree | IP54 |
Communication with customers
1) Q: Connected power and pressed the open/close button but the
traffic barrier gate no action.
A | Reason | Solution |
1 | Fuse blown | Check the fuse and power in the controller |
2 | The battery of the remote control powered off | Change a new one |
3 | External protection circuit break or at protecting status | Open the barrier door and click the OPEN/CLOSE button on the
control box |
4 | Same frequency interference | Check photocell and loop detector |
2) Q: Connected power and press the open/close button, the traffic
barrier gate will move but even when it is in the right position,
the motor still runs and does not stop.
A | Reason | Solution |
1 | Limit switch | Adjust the horizontal/vertical limit switch to the correct position |
2 | Main controller failure | Change a new one |
3) Q: The motor running but the traffic barrier gate arm is not in
action?
A | Reason | Solution |
1 | Barrier arm at 45° position where is hard to move | Unlock the clutch and manually rotate the arm to a horizontal or
vertical position then try again |
2 | The tension of the balancing spring is not suitable | Adjust spring exactly |
3 | Low working voltage | Check the voltage and power |
4) Q: When opening/closing, traffic barrier gate arm cannot reach
the right position (90° vertical & 180° horizontal)?
A. | Reason | Solution |
1 | Length adjustment of connecting rod not correct | Open the barrier door and unlock the clutch to check when the arm
is at 90° vertical position if the master rod covers slave one; when the arm
is at 180° horizontal position if the master rod and slave one are in the
same straight line |
2 | Nuts on the limit switch loose | Tighten the nuts when the arm at 90° vertical and 180° horizontal position |
1 pcs Automatic Barrier Gate
1 pcs Automatic Barrier Gate arm boom (from 1m to 6m can
customized)
1 pcs control panel(built inside)
2 pcs remote controllers
1 pcs manual book
