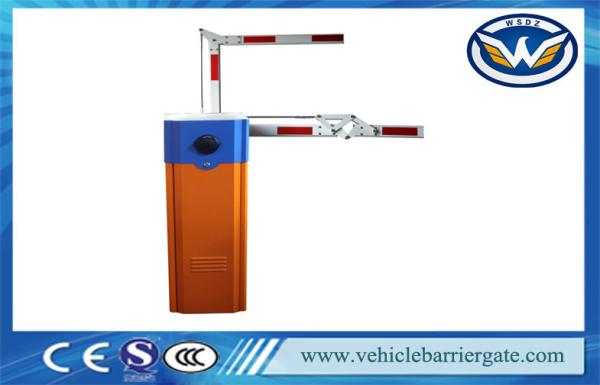

Parking Lot Barrier Gate 90 Degree Folding Arm Used For Toll
Parking System
Technical Data
| Model |
DZTP-137-A (WONSUN 1st generation machine core) |
| Power |
80w |
| Material | Cold roll plate, Galvanized plate or stainless steel varnish baking, 3 years without fading |
| Running Time |
0.6s, 1s, 1.8s, 3s,4s, 6s |
| Operating Temperature |
-45°C to 75°C |
| Voltage: |
220V ± 10%, 110V ± 10% |
| Relative Humidity |
<90% coagulation free |
| Motor speed |
30r/min |
| Boom length |
Max 6 meters |
| Net weight: |
50Kg |
| MCBF |
≥5, 000, 000 times |
| Housing Size |
320*280*935mm |
| Traffic light |
Optional |
| Rail material |
Aluminum Alloy |
| Boom Type |
Straight arm: Mar 1- 6 meters optional, size 45×100mm aluminum
alloy. Folding arm: 90°folding arm / 180°folding arm, aluminum alloy Fence arm: Two or three fence arm, Mar1- 6 meters, aluminum alloy |
| Related accessories |
infrared sensors, loop detectors,traffic light, UHF readers |
| Application | Parking Lots, Toll Gates, Goods Yards, Railway Crossings,
Commercial Premises, Aparment Block |
| Advantages |
1. quick delivery time, 3-5 days for 50 sets after received advance
deposite 2. 7 years OEM/ODM experience 3. quick response for handling problems |
| Our other products |
WONSUN has other products: tripod turnstiles, sliding gate motor, flap barrier,swing gate motor, pedestrian access control turnstiles and barriers,
and other related accessories. |
Wonsun vehicle barrier gate is designed using innovative technology and manufactured with
precision
machinery to guarantee satisfaction in quality and reliability for
years to come.
Wonsun vehicle barrier gate has been lab tested for more than 5 millions opening / closing and
still without any degrade in performance.
No limit switch design minimizes mechanical wear and enchances
barrier life time.
DZTP-137-A model can use WONSUN 1st generation machine core
DZTP-137-A model also offer a complete range of arm ( folding, fence and swing out
)
Each barrier gate will include:
1 pcs Gate Barrier
1 pcs arm boom (from 1m to 6m can customised)
1 pcs control panel(built inside)
2 pcs remote controllers
1 pcs manual book
1 pair photocell( optional)
1 loop detector( optional)
1 RS485( optional)
Model Selection and Differences
| Boom type | Boom Length(L) | Diameter of the spring(mm) | Note |
| Straight boom | 6M≥L≥5M | 5.5/4.5 | |
| 5M≥L≥4.5M | 5.5 | Dispatching 4.5 |
| 4.5M≥L≥3M | 4.5 | Dispatching 4.5 |
| Straight boom adhesive tape | 5M≥L≥4M | 4.5M≥L≥3M | 5.5/4.5 | Dispatching 4.5 |
| 4M≥L≥3M | 3.5M≥L≥3M | 4.5 | Dispatching 4.5 |
| Folding boom | 6M≥L≥5M | 6.5/4.5 | |
| 5M≥L≥4M | 5.5/4.5 | |
| 4M≥L≥3M | 4.5 | |
| Two fence boom | 5M≥L≥4M | 6.5/5.5 | |
| Fence boom | | 4M≥L≥3M | 5.5/4.5 | |
| Three fence boom | 4M≥L≥3M | 6.5/5.5 | |
| | 3M≥L≥2M | 5.5/4.5 | |
Communication with customers
1) Q: Connected power and press open/close button but traffic
barrier gate no action?
A | Reason | Solution |
1 | Fuse blown | Check fuse and power in controller |
2 | Battery of remote control powered off | Change a new one |
3 | External protection circuit break or at protecting status | Open the barrier door and click OPEN/CLOSE button on control box |
4 | Same frequency interference | Check photocell and loop detector |
2) Q:Connected power and press open/close button,traffic barrier
gate will move but even when it is at right position, the motor
still running and not stop?
A | Reason | Solution |
1 | Limit switch | Adjust the horizontal/vertical limit switch to correct position |
2 | Main controller failure | Change a new one |
3) Q: Motor running but traffic barrier gate arm no action?
A | Reason | Solution |
1 | Barrier arm at 45° position where is hard to move | Unlock clutch and manually rotate arm to horizontal or vertical
position then try again |
2 | Tension of balancing spring not suitable | Adjust spring exactly |
3 | Low working voltage | Check the voltage and power |
For the things that most customer want to know:
1. MOQ: for our usual order, there is no MOQ; But for customized
order, like customize color, printing LOGO, corrosion protection
base, the MOQ is 30 sets.
2. Delivery Time: as for usual order, 3-7 days when we received
your advance deposite or full payment(including Saturday), For
customized order, it is 10-15 days after receiving your
payment(including Saturday)
3. Production Potential: 80 sets of barrier gate finished in one
day for usual order, for customized order, according to your
detailed requirements
4. Quality Control: 3 control lines and 6 QC for Checking, first is
motor testing line which can promise you good and durable
motor;second is machine core testing line which can promise you
stable function;final is barrier gate testing line which can
promise you perfect working with its required boom with our
experienced technicist's debugging
5. Service and Support: as for presales service, we will provide
all the information you need and questions you asked; for
aftersales, we will offer long term technical support, and we're
sure that any of your feedback will receive our careful attentions
and prompt reply.
6. Warranty: 12 months Since the barrier gate you recieve
7. Delivery Way: we can send the goods to you by Sea, Airplane and
Express, but you need tell us which kind of way do you prefer and
relative information. for example, if you want to delivery by sea,
please kindly send us the shipping requirements, like FOB or CIF,
and your nearby port.
8. Payment: for sample order: full payment; for usual order, 30-40%
advance deposite, balance before shipment for large quantity.
As for here, if you have any pending orders or inquiry, please
kindly feel free to contact us, we're sure that any of your
feedback will receive our careful attentions and prompt reply.
