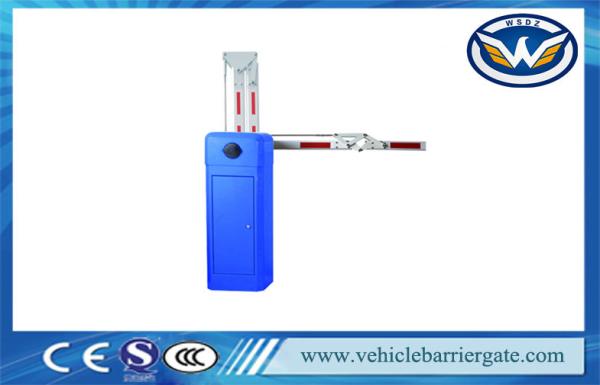

High Speed Remote Control Retractable Parking Barrier Gate for
Highway Control
Quick Detail:
- Name: Automatic boom barrier
- Application: Enterprise door
- Speed: 0.6s,1s, 1.8s,3s,6s
- Feature: Limit switch
- Rated Power:80W
- Certificate:CE, ISO, SGS
- Net Weight: 60KG
- Voltage:AC220V, AC110V
Applications:
Fast Barrier Gate adopts special machine core, swing away boom
holder and boom. This barrier gate runs in high speed but stably.
The running time is 0.6s or 1 second. It can be used for highway
toll, parking system, factory gate, and so on.
Specifications
Model | DZTP-139-B |
Working Temperature | -40℃～+75℃ |
Voltage | 220V±10%, 110V±10%, 50/60HZ |
Rated power | 80W |
Relative humidity | ≤90% |
Remote control distance | ≥30m |
Net weight | 48kgs |
Speed | 0.6S,1S,1.8S,3S, 6S |
Max boom length | 6 meters |
Motor Rotational speed | 1400rmp |
Protection Degree | IP54 |
Functions & Features:
1. Advanced manual release
2. Boom can rise and fall on left/right side by setting on the same
machine
3. No need to change the balance spring when changing the booms
4. Adopts the 3rd generation WEJOIN machine core
5. Supports the infrared photocell for anti-bumping function
(optional)
6. Supports the external and internal vehicle loop detector
(optional)
7. Auto closing
8. RS485 communication module (optional)
9. Thermal radiates rapidly, no thermal protection
10. Die-cast aluminum alloy machine core and advanced double-stage
driving motor effectively solve the problem of mechanism block up
11. Special art and craft makes out the most modernized and
fashionable housing
12. Safety photo electricity limit switch
13. Cabinet with traffic light
14. Remote Control Frequency: 315MHz, 418MHz, 433MHz
Communication with customers
1) Q: Connected power and press open/close button but electronic
barrier gate no action?
A | Reason | Solution |
1 | Fuse blown | Check fuse and power in controller |
2 | Battery of remote control powered off | Change a new one |
3 | External protection circuit break or at protecting status | Open the barrier door and click OPEN/CLOSE button on control box |
4 | Same frequency interference | Check photocell and loop detector |
2) Q:Connected power and press open/close button, electronic
barrier gate will move but even when it is at right position, the
motor still running and not stop?
A | Reason | Solution |
1 | Limit switch | Adjust the horizontal/vertical limit switch to correct position |
2 | Main controller failure | Change a new one |
3) Q: Motor running but electronic barrier gate arm no action?
A | Reason | Solution |
1 | Barrier arm at 45° position where is hard to move | Unlock clutch and manually rotate arm to horizontal or vertical
position then try again |
2 | Tension of balancing spring not suitable | Adjust spring exactly |
3 | Low working voltage | Check the voltage and power |
4) Q: When opening/closing,electronic barrier gate arm cannot reach
right position (90° vertical & 180° horizontal)?
A. | Reason | Solution |
1 | Length adjustment of connecting rod not correct | Open barrier door and unlock clutch to check when arm at 90° vertical position if the master rod covers slave one; when arm at
180° horizontal position if master rod and slave one are in the same
straight line |
2 | Nuts on the limit switch loose | Tighten the nuts when arm at 90° vertical and 180° horizontal position |
