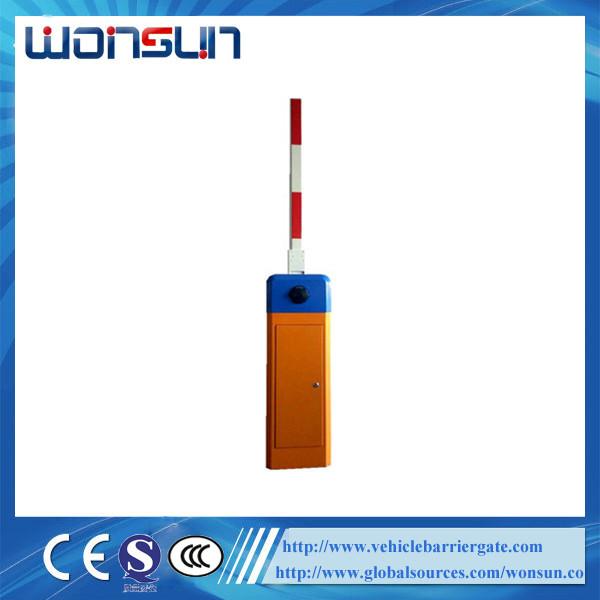

Heavy Duty Vehicle Boom Barrier Gate for Car Parking Lot System
Wonsun parking lot barrier is designed using innovative technology and manufactured with
precision machinery to guaarantee satisfaction in quality and
reliability for years to come.
Wonsun parking lot barrier has been lab tested for more than 5 millions opening / closing and
still without any degrade in performance. No limit switch design
minimizes mechanical wear and enchances barrier life time.
WSTP-115 series can use WONSUN 1st generation machine core
Functions & Features
1. Manual release: clutch key can be used to control arm open and
close without moving its top head when power off.
2. Machine core with compression spring, effectively avoids the
accidents caused by spring breaking
3. Die-casting aluminum alloy motor, precision and good at thermal
radiating
4. Motor cooling fan, solving the problem of heat-protection
5. Double safety limit switches (photoelectricity limit
switch/motor memory sensor)
6. Arm auto reversing on obstacle
7. Motor cooling fan which can operate automatically when the
barrier gate is working in high temperature or motor works in heavy
duty.
8. Support the INFRARER PHTOCELL for anti-bumping function
(optional)
9. Support the external and internal VEHICLE LOOP DETECTOR
(optional)
10. Traffic light interface
11. Wire control (switch signal)/ Remote control (418MHZ)
12. RS485 communication module (optional)
Technical Data
| Type | WSTP-115;WSTP-115B;WSTP-116; WSTP-117. WSTP-118, WSTP-119, WSTP-120,WSTP-121,WSTP-122,WSTP-123 ,WSTP-124 |
| Operation time | 0.6s, 1s, 1.8s, 3s, 6s. Customized |
| Arm Type | Straight Arm: Max 6 meters, Size 45×100mm and 45*80 mm aluminum
alloy Fence Arm: Two or three fence arm, Max 6 meters, aluminum alloy |
| Material | Galvanized plate or Cold roll plate, 2.5mm thickness sheet 3 years without rust, shedding and fading |
| Size | 320*280*935 mm |
| Spring And Bearing | Heat Treatment: more durable, more than 5 million times through
operation testing |
| Rating Power | 120W |
| Rating Voltage | AC 220V/110V±10%, 50/60HZ |
| Remote Control Distance | Usually more than 30 meters, if there is less obstacles, even 50
meters or more |
| Packing Size | 1020*375*467mm , with seven layers carton case inside with air bubble film for protection |
| G.W | 50 KG |
| Delivery | By Sea: big order(more than 100 sets), Cheap, suggested By Air: small order(1-15 sets), quick and cheap, suggested |
| Payment | Sample: full payment Order: usually 40% advance deposite, balance before shipment |
| Advantages | 1. Professional Manfacturer for more 8 years 2. Mould Production, High Accuracy 3. Heat Treatment, more durable than normal 4. Better Service from Professional Work Team |
| Application | Suitable for indoor as well as outdoor parking area at airport,
shopping mall, warehouse,hotel, factories, condominium, car rental companies, etc.
It can also be customized to beused together with any auto-pay ticketing
parking or access control system |
Packaging & Shipping
1. Strong carton case with cushion for safety, air bubble film
inside for protect ing the apperance from damaging.
2. As for wooden crate packing, it is USD$ 10/ps; for wooden case
packing, it is USD$ 32/ps.
3. As for shipping, we can send you the goods by air, sea and
express, which according to your detail requirements.
Each barrier gate will include:
1 pcs Gate Barrier
1 pcs arm boom (from 1m to 6m can customised)
1 pcs control panel(built inside)
2 pcs remote controllers
1 pcs manual book
Service for free:
1. One year free service is supplied(not including the arm)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customized machine case, color, logo for you, which
accroding to your detailed requirements.
5. Technical support and aftersales service, it is a long term
relatioship between us.
6. Price can be negotiable when you have big order quantity.
Service for charging:
1. Broken by wrong installation
2. Broken by improper voltage
3. The surfaces of the barrier destroyed by wrong installation and
usage
4. Overdue service items are out of our promise.
FAQ
1. Are you manufacturer or trade company?
We're professional manufacturer who has our own factory in Shenzhen
Pingshan since 2007.
2. What is your MOQ?
As for usual order, there is no MOQ; For OEM order, at least 30
sets.
3. What is your delivery time?
As for usual order, it is 3-5 days after received your payment with
50 sets order quantity.
For OEM order, it is 7-15 days after receieved your payment with 30
sets order quantity.
4. What is the terms of payment?
30%-40% advance deposite, 60%-70% balance before shipment for large
quantity.
5. How long will your gate barrier working?
Gate barrier life span is 5-10 years.
6. What should we do if there have problems during using?
my dear friend, We have 1 year guarantee. Any gate barrier problems
you have, Welcome email or call me!
We will provide our best professional service for you.
7.How to import your machines?
* We will prepare gate barrier and shipment for you after payment;
*We will give you bill of loading after gate barrier depart our
shipping port;
*Our shipping agent will contact you when gate barrier arrival
