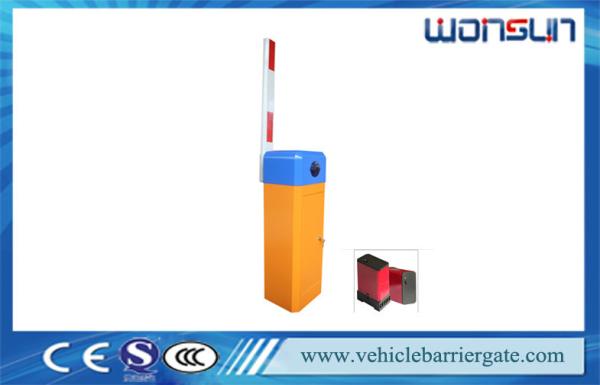

5 Million Operation Time Vehicle Barrier Gate For Residential Car
Parking Control System
Quick Detail:
Name: Car parking barrier gate
Speed: 0.6s, 1s, 1.8s, 3s, 6s
Feature:Straight boom
Rated Power:120W
Certificate: CE, SGS
Net Weight: 50KG
Voltage:AC220V, AC110V
Specifications:
| Model |
WSTP-115B (WONSUN 1st generation machine core) |
| Power |
120w |
| Material |
Cold roll plate, Galvanized plate or stainless steel varnish baking, 3 years without fading |
| Operating Temperature |
-45°C to 75°C |
| Voltage: |
220V ± 10%, 110V ± 10% |
| Relative Humidity |
<90% coagulation free |
| Motor speed |
30r/min |
| Boom length |
Max 6 meters |
| MCBF |
≥5, 000, 000 times |
| Housing Size |
320*280*935mm |
| Traffic light |
Optional |
| Rail material |
Aluminum Alloy |
| Boom Type |
Straight arm: Mar 1- 6 meters optional, size 45×100mm aluminum alloy. Folding arm: 90°folding arm / 180°folding arm, aluminum alloy Fence arm: Two or three fence arm, Mar1- 6 meters, aluminum alloy |
| Related accessories |
infrared sensors, loop detectors,traffic light, UHF readers |
| Application | Parking Lots, Toll Gates, Goods Yards, Railway Crossings,
Commercial Premises, Aparment Block |
| Advantages |
1. quick delivery time, 3-5 days for 50 sets after received advance
deposite 2. 7 years OEM/ODM experience 3. quick response for handling problems |
| Our other products |
WONSUN has other products: tripod turnstiles, sliding gate motor, flap barrier,swing gate motor, pedestrian access control turnstiles and barriers,
and other related accessories. |
Functions & Features
1. Manual release
2. Machine core with compression spring, effectively avoids the
accidents caused by spring
breaking
3. Die-casting aluminum alloy motor, precision and good at thermal
radiating
4. Motor cooling fan, solving the problem of heat-protection
5. Double safety limit switches (photoelectricity limit
switch/motor memory sensor)
6. Reversing on obstacle 7. Auto-closing
8. Support the INFRARER PHTOCELL for anti-bumping function
(optional)
9. Support the external and internal VEHICLE LOOP DETECTOR
(optional)
10. Traffic light interface
11. Wire control (switch signal)/ Remote control (418MHZ)
12. RS485 communication module (optional)
Communication with customers:
1. Motor works but there is no reaction on the arm.
a. Please check whether the clutch device is locked or not.
2. There is too much vibrant when the boom is rising or falling.
a. Please check whether the shock absorption rubber is broken or
not, if yes, change a new one.
b. Please check whether the balance spring is overused and
distorted. If yes, change a new one.
b. Please check whether the balance spring is overused and
distorted.If yes, change a new one,
or spin
bottom adjust nut.
3. The boom could not rise up or fall down to the end.
a. When change a long boom to a short one, please readjust it.
b. The sensor does not plug well, please chek it.
c. The " Speed adjust switch" is wrong adjust, please readjust it.
4. The distance of the remote control decreases.
a. Check whether the charge capacity of the remote controller is
enough or not.
5. There is no reaction when pressing the remote controller
buttons.
a, Please check whether the power is supplied to the barrier gate
or not.
b. Please check whether the fuse is burnt out or not.
c. Please check whether the code both in the remote controller and
the control board are
accordant or not.
6 There is no reaction on the motor when the user changes a control
board.
a. Please check the capacitance is correctly fixed or not.
b. Please check the sensor is right inserted or not.
Parking & Shipping:
1. Strong carton case with cushion for safety, air bubble film
inside for protect ing the
apperance from damaging.
2. As for wooden crate packing, it is USD$ 10/ps; for wooden case
packing, it is USD$ 32/ps.
3. As for shipping, we can send you the goods by air, sea and
express, which according to
your detail requirements.
Each barrier gate will include:
1 pcs Gate Barrier, 1 pcs arm boom (from 1m to 6m can customised), 1 pcs control panel(built inside)
2 pcs remote controllers,1 pcs manual book
Why choose us?
1. OEM Brand, Logo, Label available
2. 1 Year Standard Warranty, excellent after-sales service
3. 24h*7d at your service to give you best support
4. Detailed installation manual and wiring diagram to make
everything be easy
5. Fast finishing time for you to become more competitive at your
local market :3-5 days for small order.
