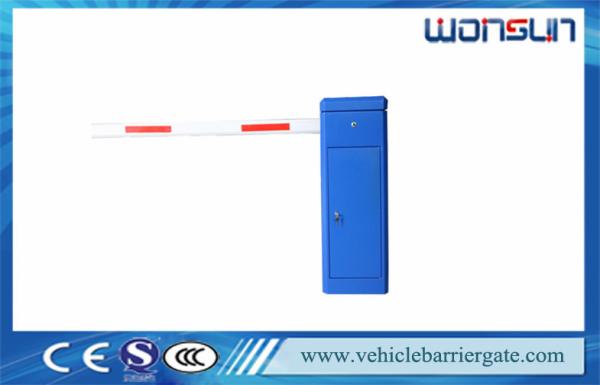

    High Speed 0.6s Barrier Gate Arm Parking Toll System Controller

    Ask Lasest Price
    Brand Name : WONSUN
    Model Number : DZTP-133-A
    Certification : CE, ISO, SGS
    Price : negotiation
    Payment Terms : T/T,Western Union,Money Gram, Trade Assurance,Paypal etc.,
    Supply Ability : 1000 Sets/Month
    Delivery Time : 3-7 working days after received your payment
    • Product Details
    • Company Profile

    High Speed 0.6s Barrier Gate Arm Parking Toll System Controller


    High Speed 0.6s Barrier Gate Arm Parking Toll System Controller


    Product Features


    1. Special driving structure, no gears, non-belt driving,maintenance free, high stability, longer life.

    2. Special balancing structure design makes the barrier arm has the feature of slow-starting, fast-running, slow-stopping.3. It is running without arm-shaking.

    4. The brarrier arm is 90 degrees running which excluding the failure caused 360 degrees running.

    5. Special low-speed aluminum housing motor integrated gearbox design, low noise, fast heat-dissipation.

    6. The driving mechanism has the desiging of intelligent overheating protection system, in frequent use, it can control the warming of the motor, makes the motor not burned easily.

    7. The main engine adopts mechanical limit switch and photoelectric limit switch dual protection, to avoid the problems caused by using traditional magnetic switch which is easily interfered by the external environment.

    8. Barrier gae tcan be chosen from 1m to 6m.


    Specifications


    Model

    WST1211

    Working Temperature

    -40℃~+75℃

    Voltage

    220V±10%, 110V±10%, 50/60HZ

    Rated power

    80W

    Relative humidity

    ≤90%

    Remote control distance

    ≥30m

    Net weight

    48kgs

    Speed

    1S,1.8S,3S, 6S

    Max boom length

    6 meters

    Motor Rotational speed

    1400rmp

    Protection Degree

    IP44


    1 pcs Gate Barrier
    1 pcs arm boom (from 1m to 6m can customised)
    1 pcs control panel(built inside)
    2 pcs remote controllers
    1 pcs manual book



    Communication with customers

    1) Q: Connected power and press open/close button but traffic barrier gate no action?


    A

    Reason

    Solution

    1

    Fuse blown

    Check fuse and power in controller

    2

    Battery of remote control powered off

    Change a new one

    3

    External protection circuit break or at protecting status

    Open the barrier door and click OPEN/CLOSE button on control box

    4

    Same frequency interference

    Check photocell and loop detector


    2) Q:Connected power and press open/close button,traffic barrier gate will move but even when it is at right position, the motor still running and not stop?

    A

    Reason

    Solution

    1

    Limit switch

    Adjust the horizontal/vertical limit switch to correct position

    2

    Main controller failure

    Change a new one


    3) Q: Motor running but traffic barrier gate arm no action?

    A

    Reason

    Solution

    1

    Barrier arm at 45° position where is hard to move

    Unlock clutch and manually rotate arm to horizontal or vertical position then try again

    2

    Tension of balancing spring not suitable

    Adjust spring exactly

    3

    Low working voltage

    Check the voltage and power


    4) Q: When opening/closing,traffic barrier gate arm cannot reach right position (90° vertical & 180° horizontal)?

    A.

    Reason

    Solution

    1

    Length adjustment of connecting rod not correct

    Open barrier door and unlock clutch to check when arm at 90° vertical position if the master rod covers slave one; when arm at 180° horizontal position if master rod and slave one are in the same straight line

    2

    Nuts on the limit switch loose

    Tighten the nuts when arm at 90° vertical and 180° horizontal



    MarketRevenue(Previous Year)Total Revenue (%)
    North AmericaUSD 63,6081
    South AmericaUSD 508,8698
    Eastern EuropeUSD 3,180,43650
    Southeast AsiaUSD 318,0435
    OceaniaUSD 127,2172
    Mid EastUSD 190,8263
    Western EuropeUSD 1,017,73916
    Domestic MarketUSD 954,13015

    Why choose us?


    1.One year's free servicing is supplied( not including the arm)
    2. Lifetiom charged servicing is offered.
    3. Technology servicing is supplied
    The following situations are charged for servicing (or changing):
    1. Broken by wrong installation.
    2 Broken by improper voltae.
    3. The surfaces of the system destroyed by wrong installation our use.
    4. Broken by natural disaster.
    5. Overdue
    6. Servicing items out of our promises.
    The upgrade and improvement of the product won't be notified if there is any.
    The explaining authority of this product instruction and service article belong to the production factory.


    FAQ:


    1-Can you install using loop detector or pressure sensor on it?

    Yes, the barrier gate have loop detector and pressure sensor.

    2-How about the guarantee and after sale service?

    We have LIFETIME guarantee for our machine core, Wehave our technical team & after- sale services who can speak fluent Engligh.

    3-How long is the leading time?

    For standard item

    10-50 sets: 3 working days

    50-100 sets:5-8 working days
    200-500 sets:7-10 working days
    For special item, or need custom design package or logo, need 3-7 working days longer

    4-How about the payment terms?

    TT,western union,paypal, L/C

    5-How do you send the products to me,how long?

    As our products are big volume,and heavy duty, we suggest you to ship by sea. You can also choose your own shipping forwarder. it normally takes 7-60 days depend on different countries.

    6-What is the package of the barrier gate?

    Inside with a carton package.Then outside,according to the different shipping method, they will be packaged wooden crate

    7-Can you do OEM service?

    We offer below OEM services:

    1)we can make custom design turnstile,or you tell us your requirements,we can make a design for you.

    2)Can print your logo on turnstiles, can customize the retail box packing and other things.

    8-Our services:

    1. For all your inquires about us or our products, we will reply you in detail within 24 hours
    2. We own techinical team & after- sale services who can speak fluent Engligh.
    3. We offer OEM services. Can print your own logo on the products , can customize the retail box packing and other things.

    4. We have very experienced engineers ,can help you better use it.
