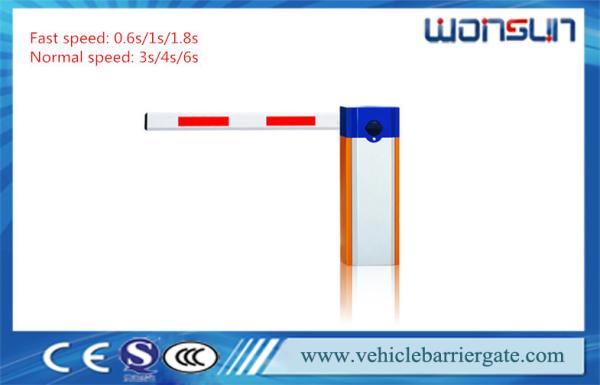

OEM AC220V Vehicle Barrier Gate Parking Barrier With Boom Bracket
Logo Free
Quick Detail:
Name: Car parking barrier gate
Speed:6 seconds
Feature:Straight boom
Rated Power:80W
Certificate:CE, ISO, SGS
Net Weight:48KG
Voltage:AC220V, AC110V
Functions & Features
1. Manual release
2. Machine core with compression spring, effectively avoids the
accidents caused by spring
breaking
3. Die-casting aluminum alloy motor, precision and good at thermal
radiating
4. Motor cooling fan, solving the problem of heat-protection
5. Double safety limit switches (photoelectricity limit
switch/motor memory sensor)
6. Reversing on obstacle
7. Auto-closing
8. Support the INFRARER PHTOCELL for anti-bumping function
(optional)
9. Support the external and internal VEHICLE LOOP DETECTOR
(optional)
10. Traffic light interface
11. Wire control (switch signal)/ Remote control (418MHZ)
12. RS485 communication module (optional)
Techinical data:
| Type |
WSTP-115;WSTP-115B;WSTP-116; WSTP-117. WSTP-118, WSTP-119, WSTP-120,WSTP-121,WSTP-122,WSTP-123 |
| Operation time |
0.6s, 1s, 1.8s, 3s, 6s. Customized
|
| Arm Type |
Straight Arm: Max 6 meters, Size 45×100mm and 45*80 mm aluminum
alloy Fence Arm: Two or three fence arm, Max 6 meters, aluminum alloy |
| Material |
Galvanized plate or Cold roll plate, 2mm thickness sheet 3 years without rust, shedding and fading |
| Size |
320*280*935 mm |
| Spring And Bearing |
Heat Treatment: more durable, more than 5 million times through
operation testing |
| Rating Power |
120W |
| Rating Voltage |
AC 220V/110V±10%, 50/60HZ |
| Remote Control Distance |
Usually more than 30 meters, if there is less obstacles, even 50
meters or more |
| Packing Size |
1020*375*467mm , with seven layers carton case inside with air bubble film for protection |
| G.W |
50 KG |
| Delivery |
By Sea: big order(more than 100 sets), Cheap, suggested By Air: small order(1-15 sets), quick and cheap, suggested |
| Payment |
Sample: full payment Order: usually 40% advance deposite, balance before shipment |
| Advantages |
1. Professional Manfacturer for more 8 years 2. Mould Production, High Accuracy 3. Heat Treatment, more durable than normal 4. Better Service from Professional Work Team |
| Application |
Suitable for indoor as well as outdoor parking area at airport,
shopping mall, warehouse,hotel, factories, condominium, car rental companies, etc. It canalso be customized to beused together with any auto-pay ticketing
parkingor access control system |
Automatic Gate Barrier Arm Optional:
1. Straight boom arm length is 1-6 m, Speed time is 6S 2. Straight boom arm length is 1-4.5m. Speed time is 1.8s 3. Straight boom arm length is 1-3 m, Speed time is 1s 4. Straight boom arm length is 1-2.5m, Speed time is 0.6s |
Parking & Shipping:
1. Strong carton case with cushion for safety, air bubble film
inside for protect ing the apperance
from damaging.
2. As for wooden crate packing, it is USD$ 10/ps; for wooden case
packing, it is USD$ 32/ps.
3. As for shipping, we can send you the goods by air, sea and
express, which according to your
detail requirements.
Each barrier gate will include:
| 1 pcs Gate Barrier |
| 1 pcs arm boom (from 1m to 6m can customised) |
| 1 pcs control panel(built inside) |
| 2 pcs remote controllers |
| 1 pcs manual book |
Best Service:
Service for free:
1. One year free service is supplied(not including the arm)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customized machine case, color, logo for you, which
accroding to your detailed
requirements.
5. Technical support and aftersales service, it is a long term
relatioship between us.
6. Price can be negotiable when you have big order quantity.
Service for charging:
1. Broken by wrong installation
2. Broken by improper voltage
3. The surfaces of the barrier destroyed by wrong installation and
usage
4. Overdue service items are out of our promise.
FAQ:
1. Are you manufacturer or trade company?
We're professional manufacturer who has our own factory in Shenzhen
Pingshan since 2007.
2. What is your MOQ?
As for usual order, there is no MOQ; For OEM order, at least 30
sets.
3. What is your delivery time?
As for usual order, it is 3-5 days after received your payment with
50 sets order quantity.
For OEM order, it is 7-15 days after receieved your payment with 30
sets order quantity.
4. What is the terms of payment?
30%-40% advance deposite, 60%-70% balance before shipment for large
quantity.
5. How long will your gate barrier working?
Gate barrier life span is 5-10 years.
6. What should we do if there have problems during using?
My dear friend, We have 1 year guarantee. Any gate barrier problems
you have, Welcome
email or call me! We will provide our best professional service for you.
7.How to import your machines?
* We will prepare gate barrier and shipment for you after payment;
* We will give you bill of loading after gate barrier depart our
shipping port;
* Our shipping agent will contact you when gate barrier arrival
