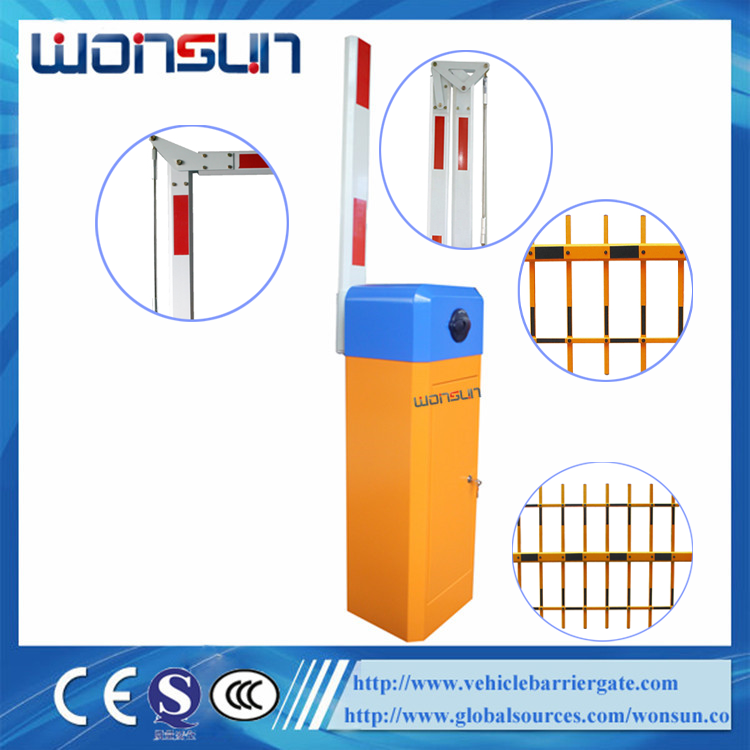

Remote Control Automatic Barrier Gate Free Logo For Access Control
Specifications
Mode:WST116
Working Temperature:-40℃～+75℃
Voltage:220V±10%, 110V±10%, 50/60HZ
Rated power:80W
Relative humidity:≤90%
Remote control distance:≥30m
Net weight:48kg
Speed:0.6s,1s,1.8s,3s,4s,6s.
Max boom length:8 meters
Motor rotational speed:1400rmp
Protection degree:IP44
Basic Features:
| 1) By-security. the barrier gate will automatically go back when
meet obstacles during closing. |
| 2) AC motor is more powerful and no maintenance. |
| 3) Barrier Boom/arm can be chosen from 3 meters to 6 meters, and
barrier gate. |
| 4) Closing time is also arranged from 1 second to 6 seconds. |
| 5) The barrier gate can be both right-installed and left-installed. |
| 6) All the operation process is soft without any noise and shaking. |
| 7) Infrared photocell interface, loop detector interface and IC
system. |
| 8) interface are reserved for the other functions. |
| 9) Green light and red light are used inside for indication the
position of the boom |
Advanced Features:
| 1) clutch key can be used to open the clutch when power off. |
| 2) Fan cooling machine reduce the motor temperature by high
frequency using, never get heat-protecting, unique temperature
calefaction design for low temperature using, prevent freezing in
cold weather. |
3) Exactitude aluminium alloy die-casting motor base reduce the
noise and joint abrasion to prolong the barrier gate working life. |
Communication with customers
1) Q: Connected power and press open/close button but traffic
barrier gate no action?
A | Reason | Solution |
1 | Fuse blown | Check fuse and power in controller |
2 | Battery of remote control powered off | Change a new one |
3 | External protection circuit break or at protecting status | Open the barrier door and click OPEN/CLOSE button on control box |
4 | Same frequency interference | Check photocell and loop detector |
2) Q:Connected power and press open/close button,traffic barrier
gate will move but even when
it is at right position, the motor still running and not stop?
A | Reason | Solution |
1 | Limit switch | Adjust the horizontal/vertical limit switch to correct position |
2 | Main controller failure | Change a new one |
3) Q: Motor running but traffic barrier gate arm no action?
A | Reason | Solution |
1 | Barrier arm at 45° position where is hard to move | Unlock clutch and manually rotate arm to horizontal or vertical
position then try again |
2 | Tension of balancing spring not suitable | Adjust spring exactly |
3 | Low working voltage | Check the voltage and power |
4) Q: When opening/closing,traffic barrier gate arm cannot reach
right position (90° vertical &
180° horizontal)?
A. | Reason | Solution |
1 | Length adjustment of connecting rod not correct | Open barrier door and unlock clutch to check when arm at 90° vertical position if the master rod covers slave one; when arm at
180° horizontal position if master rod and slave one are in the same
straight line |
2 | Nuts on the limit switch loose | Tighten the nuts when arm at 90° vertical and 180° horizontal
|
FAQ:
1- Can you install using loop detector or pressure sensor on it?
Yes, the barrier gate have loop detector and pressure sensor.
2- How about the guarantee and after sale service?
We have LIFETIME guarantee for our machine core, Wehave our
technical team & after- sale
services who can speak fluent Engligh.
3- How long is the leading time?
For standard item
10-50 sets: 3 working days
50-100 sets:5-8 working days
200-500 sets:7-10 working days
For special item, or need custom design package or logo, need 3-7
working days longer
4- How about the payment terms?
TT,western union,paypal, L/C
5- How do you send the products to me,how long?
As our products are big volume,and heavy duty, we suggest you to
ship by sea. You can also
choose your own shipping forwarder. it normally takes 7-60 days
depend on different countries.
6- What is the package of the barrier gate?
Inside with a carton package.Then outside,according to the
different shipping method, they will
be packaged wooden crate
7- Can you do OEM service?
We offer below OEM services:
1)we can make custom design turnstile,or you tell us your
requirements,we can make a design
for you.
2)Can print your logo on turnstiles, can customize the retail box
packing and other things.
8- Our services:
1. For all your inquires about us or our products, we will reply
you in detail within 24 hours
2. We own techinical team & after- sale services who can speak
fluent Engligh.
3. We offer OEM services. Can print your own logo on the products ,
can customize the retail
box packing and other things.
4. We have very experienced engineers ,can help you better use it.
Our Sevice
1. Professional staff answer your questions in English.
2. Customized design and OEM/ODM.
3. Supported by our professional engineers.
4. Special discount of our distributors or agents in their area.
5. Welcome you to visit our factory.
