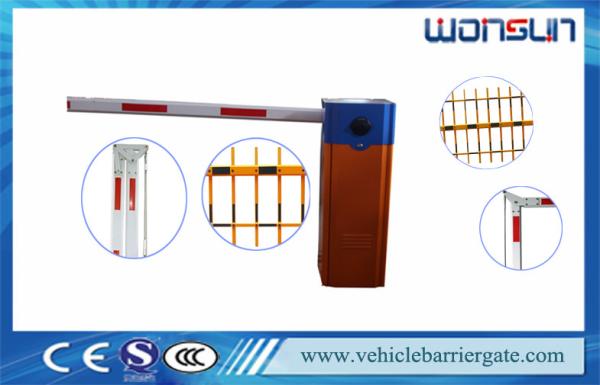

Straight Boom With LED Automatic Barrier Gate Entrance Barrier Gate
Automatic Barrier Gate Basic Features:
1) By-security. The barrier gate will automatically go back when
meets obstacles during closing.
2) Automatic Barrier Gate AC motor is more powerful and no maintenance.
3) Automatic Barrier Gate arm can be chosen from 3 meters to 6 meters, and barrier gate.
4) Automatic Barrier Gate Closing time is also arranged from 1 second to 6 seconds.
5) The Automatic Barrier Gate can be both right-installed and left-installed.
6) All the operation processes are soft without any noise and
shaking.
7) Infrared photocell interface, loop detector interface, and IC
system.
8) The interface is reserved for the other functions.
9) Green light and red light are used inside for indication of the
position of the boom
Automatic Barrier Gate Advanced Features:
1) A clutch key can be used to open the clutch when power is off.
2) Fan cooling machine reduces the motor temperature by high
frequency using, never get heat-protecting, unique temperature
calefaction design for low temperature using, prevent freezing in
cold weather.
3) An exactitude aluminum alloy die-casting motor base reduces the
noise and joint abrasion to prolong the barrier gate's working
life.
Automatic Barrier Gate Material | Cold roll plate, galvanized plate, or stainless steel |
Automatic Barrier Gate Housing size | 320*280*935 |
Automatic Barrier Gate Protection degree | IP54 |
Automatic Barrier Gate Power | 120w |
Automatic Barrier Gate Voltage | 220V ± 10%, 110V ± 10% |
Automatic Barrier Gate Relative humidity | <90% coagulation free |
Automatic Barrier Gate Remote control distance | >30m |
Automatic Barrier Gate Working temperature | -45°C to 75°C |
Automatic Barrier Gate Motor rotational speed | 1400rmp |
Automatic Barrier Gate Max boom length | 8m |
Automatic Barrier Gate MTBF | ≥5, 000, 000 times |
Automatic Barrier Gate Net weight | 60kg |
Automatic Barrier Gate-Related Accessories | Infrared sensor, loop detector, traffic light, UFH reader |
Automatic Barrier Gate Applications | Parking Lots, Toll Gates, Goods Yards, Railway Crossings |
Automatic Barrier Gate Applications | Commercial Premises, Apartment Block |
1 pcs Automatic Barrier Gate
1 pcs Automatic Barrier Gate arm boom (from 1m to 6m can customized)
1 pcs Automatic Barrier Gate control panel(built inside)
2 pcs Automatic Barrier Gate, remote controllers
1 pcs Automatic Barrier Gate manual book
Automatic Barrier Gate Specifications
Automatic Barrier Gate Model | WST1211 |
Automatic Barrier Gate Working Temperature | -40℃～+75℃ |
Automatic Barrier Gate Voltage | 220V±10%, 110V±10%, 50/60HZ |
Automatic Barrier Gate Rated power | 80W |
Automatic Barrier Gate Relative humidity | ≤90% |
Automatic Barrier Gate Remote control distance | ≥30m |
Automatic Barrier Gate Net weight | 48kgs |
Automatic Barrier Gate Speed | 1S,1.8S,3S, 6S |
Automatic Barrier Gate Max boom length | 6 meters |
Automatic Barrier Gate Motor Rotational speed | 1400rmp |
Automatic Barrier Gate Protection Degree | IP44 |
Why choose us?
1. One year's free servicing is supplied( not including the arm)
2. Lifetiom charged servicing is offered.
3. Technology servicing is supplied
The following situations are charged for servicing (or changing):
1. Broken by wrong installation.
2 Broken by improper voltage.
3. The surfaces of the system were destroyed by the wrong
installation our use.
4. Broken by natural disaster.
5. Overdue
6. Servicing items out of our promises.
The upgrade and improvement of the product won't be notified if
there is any.
The explaining authority of this product instruction and service
article belongs to the production factory.
Communication with customers
1) Q: Connected power and pressed the open/close button but the Automatic Barrier Gate did not action.
A | Reason | Solution |
1 | Fuse blown | Check the fuse and power in the controller |
2 | The battery of the remote control powered off | Change a new one |
3 | External protection circuit break or at protecting status | Open the barrier door and click the OPEN/CLOSE button on the
control box |
4 | Same frequency interference | Check photocell and loop detector |
2) Q: Connected power and press the open/close button, the Automatic Barrier Gate will move but even when it is in the right position, the motor
still runs and does not stop.
A | Reason | Solution |
1 | Limit switch | Adjust the horizontal/vertical limit switch to the correct position |
2 | Main controller failure | Change a new one |
3) Q: The Automatic Barrier Gate motor running but the Automatic Barrier Gate arm is not in action?
A | Reason | Solution |
1 | Barrier arm at 45° position where is hard to move | Unlock the clutch and manually rotate the arm to a horizontal or
vertical position then try again |
2 | The tension of the balancing spring is not suitable | Adjust spring exactly |
3 | Low working voltage | Check the voltage and power |
4) Q: When opening/closing, traffic barrier gate arm cannot reach
the right position (90° vertical & 180° horizontal)?
A. | Reason | Solution |
1 | Length adjustment of connecting rod not correct | Open the barrier door and unlock the clutch to check when the arm
is at 90° vertical position if the master rod covers slave one; when the arm
is at 180° horizontal position if the master rod and slave one are in the
same straight line |
2 | Nuts on the limit switch loose | Tighten the nuts when arm at 90° vertical and 180° horizontal
|
FAQ:
1- Can you install using loop detector or pressure sensor on it?
Yes, the barrier gate has a loop detector and pressure sensor.
2- How about the guarantee and after-sale service?
We have a LIFETIME guarantee for our machine core, We have our
technical team & after-sale services who can speak fluent English.
3- How long is the leading time?
For standard item
10-50 sets: 3 working days
50-100 sets:5-8 working days
200-500 sets:7-10 working days
For special items, or need a custom design package or logo, need
3-7 working days longer.
4- How about the payment terms?
TT,western union,paypal, L/C
5- How do you send the products to me, how long?
As our products are big volume and heavy duty, we suggest you ship
by sea. You can also choose your own shipping forwarder. It
normally takes 7-60 days depending on different countries.
6- What is the package of the barrier gate?
Inside with a carton package. Then outside, according to the
different shipping methods, they will be packaged in wooden crates.
7- Can you do OEM service?
We offer below OEM services:
1) we can make a custom design turnstile, or if you tell us your
requirements, we can make a design for you.
2) Can print your logo on turnstiles, can customize the retail box
packing and other things.
8- Our services:
1. For all your inquiries about us or our products, we will reply
to you in detail within 24 hours
2. We own a technical team & after-sale services who can speak
fluent English.
3. We offer OEM services. Can print your own logo on the products,
can customize the retail box packing, and other things.
4. We have very experienced engineers, who can help you better use
it.
Service for free:
1. One year of free service is supplied(not including the arm)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customize the machine case, color, and logo for you,
according to your detailed requirements.
5. Technical support and aftersales service, is a long-term
relationship between us.
6. Price can be negotiable when you have a big order quantity.
Charging service:
1. Broken by wrong installation
2. Broken by improper voltage
3. The surfaces of the barrier were destroyed by the wrong
installation and usage
4. Overdue service items are out of our promise.
