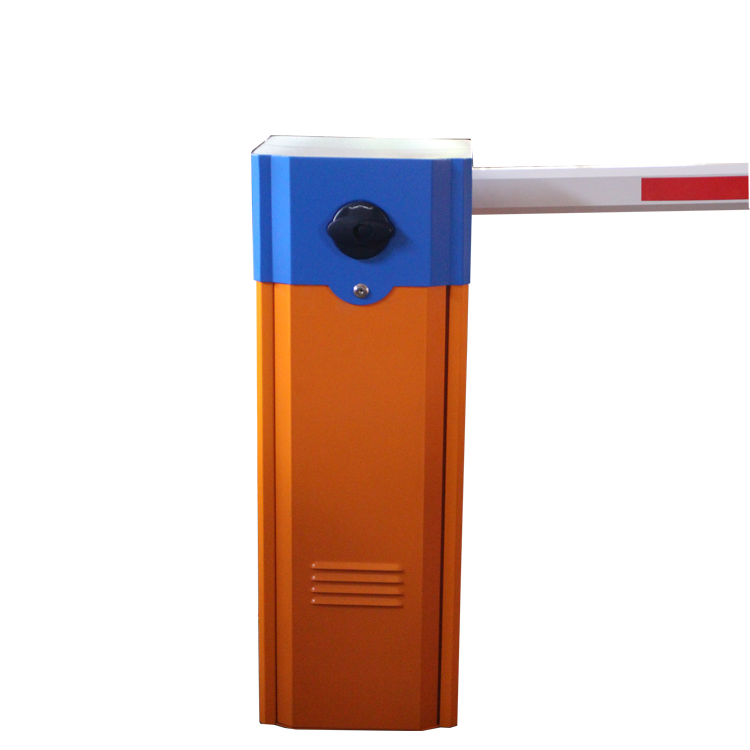

Straight Arm Intelligent Barrier Automatic Gate Barrier For Parking
Lot
User-Friendly Clutch Device: This innovative clutch mechanism allows for manual operation of
the boom in the event of a power outage. Simply unlock the clutch
to raise the boom manually, and once power is restored, re-engage
the clutch for normal operation, ensuring convenience and
reliability.
Advanced Spring Mechanism: The system incorporates both compression and tension springs. By
utilizing a compression spring, the design significantly reduces
the risk of accidents associated with tension springs, enhancing
safety and operational reliability.
Three Control Buttons: The control interface features three distinct buttons for easy
operation: one for raising the boom, one for lowering it, and a
pause function for immediate stops, allowing for intuitive control
at all times.
Boom Backtrack Function: In a safety-conscious design, if the boom encounters an obstacle
while descending, it will automatically reverse its direction,
preventing accidents and ensuring the safety of vehicles and
pedestrians below.
Infrared Photocell Technology: This cutting-edge feature detects objects in the boom's path,
preventing collisions as it descends. This technology safeguards
against vehicles being inadvertently pressed, enhancing overall
safety.
Loop Detector Support: The system supports both external and internal loop detectors,
providing versatile options for vehicle detection and enhancing the
effectiveness of the barrier operation.
Control Interface Options: The system includes "open," "close," and "stop" controlling
interfaces, allowing for straightforward and efficient management
of the intelligent barrier's operation.
Optional RS-485 Communication Interface: For enhanced connectivity, an optional RS-485 communication
serial interface is available, facilitating integration with other
systems and enhancing control capabilities.
Traffic Light Signal Connection: The intelligent barrier system includes a traffic light signal
connection device, which utilizes a red light to indicate "stop"
and a green light to signal "pass," promoting orderly traffic
management.
Flexible Control Options: Users can choose between remote control and wired control
options, providing flexibility and convenience for operating the
barrier according to specific needs.
This expanded version highlights the functionality and advantages
of each feature, emphasizing safety, convenience, and
user-friendliness.
Intelligent Barrier Specifications
Model | WST1211 |
Working Temperature | -40℃～+75℃ |
Voltage | 220V±10%, 110V±10%, 50/60HZ |
Rated power | 80W |
Relative humidity | ≤90% |
Remote control distance | ≥30m |
Net weight | 48kgs |
Speed | 1S,1.8S,3S, 6S |
Max boom length | 6 meters |
Motor Rotational speed | 1400rmp |
Protection Degree | IP44 |
Each intelligent barrier gate will include:
1 pcs Gate Barrier
1 pcs arm boom (from 1m to 6m can customized)
1 pcs control panel(built inside)
2 pcs remote controllers
1 pcs manual book
Communication with customers
1) Q: Connected power and pressed the open/close button but the
traffic barrier gate no
action?
A | Reason | Solution |
1 | Fuse blown | Check the fuse and power in the controller |
2 | The battery of the remote control powered off | Change a new one |
3 | External protection circuit break or at protecting status | Open the barrier door and click the OPEN/CLOSE button on the
control box |
4 | Same frequency interference | Check photocell and loop detector |
2) Q: Connected power and press the open/close button, the traffic
barrier gate will move but
even when it is in the right position, is the motor still running and not
stopping?
A | Reason | Solution |
1 | Limit switch | Adjust the horizontal/vertical limit switch to the correct position |
2 | Main controller failure | Change a new one |
3) Q: The motor running but the traffic barrier gate arm is not in
action?
A | Reason | Solution |
1 | Barrier arm at 45° position where is hard to move | Unlock the clutch and manually rotate the arm to a horizontal or
vertical position then try again |
2 | The tension of the balancing spring is not suitable | Adjust spring exactly |
3 | Low working voltage | Check the voltage and power |
4) Q: When opening/closing, the traffic barrier gate arm cannot
reach the right position (90°
vertical & 180° horizontal)?
A. | Reason | Solution |
1 | Length adjustment of connecting rod not correct | Open the barrier door and unlock the clutch to check when the arm
is at 90° vertical position if the master rod covers slave one; when the arm
is at 180° horizontal position if the master rod and slave one are in the
same straight line |
2 | Nuts on the limit switch loose | Tighten the nuts when arm at 90° vertical and 180° horizontal
|
FAQ:
1-Can you install using loop detector or pressure sensor on
intelligent barrier?
Yes, the barrier gate has a loop detector and pressure sensor.
2-How about the guarantee and after-sale service?
We have a LIFETIME guarantee for our machine core, We have our
technical team & after-sale
services who can speak fluent English.
3-How long is the leading time?
For standard item
10-50 sets: 3 working days
50-100 sets:5-8 working days
200-500 sets:7-10 working days
For special items, or need a custom design package or logo, need
3-7 working days longer.
4-How about the payment terms?
TT,western union,paypal, L/C
5-How do you send the products to me, how long?
As our products are big volume and heavy duty, we suggest you ship
by sea. You can
also choose your shipping forwarder. It normally takes 7-60 days
depending on different
countries.
6-What is the intelligent barrier gate package?
Inside with a carton package. Then outside, according to the
different shipping methods, they
will be packaged wooden crate
7-Can you do OEM service?
We offer below OEM services:
1)we can make a custom design turnstile, or if you tell us your
requirements, we can make a
design for you.
2)Can print your logo on turnstiles, can customize the retail box
packing and other things.
8-Our services:
1. For all your inquiries about us or our products, we will reply
to you in detail within 24 hours
2. We own a technical team & after-sale services who can speak
fluent English.
3. We offer OEM services. Can print your logo on the products, can
customize the retail
box packing, and other things.
4. We have very experienced engineers, who can help you better use
it.
Why choose us?
| The following situations are Free for serving |
| 1. One year's free servicing is supplied( not including the arm) |
| 2. Lifetiom charged servicing is offered. |
| 3. Technology servicing is supplied |
| The following situations are charged for servicing (or changing): |
| 1. Broken by wrong installation. |
| 2 Broken by improper voltage. |
| 3. The surfaces of the system were destroyed by the wrong
installation our use. |
| 4. Broken by natural disaster. |
| 5. Overdue |
| 6. Servicing items out of our promises. |
The upgrade and improvement of the product won't be notified if
there is any.
The explaining authority of this product instruction and service
article belongs to the production factory. |
