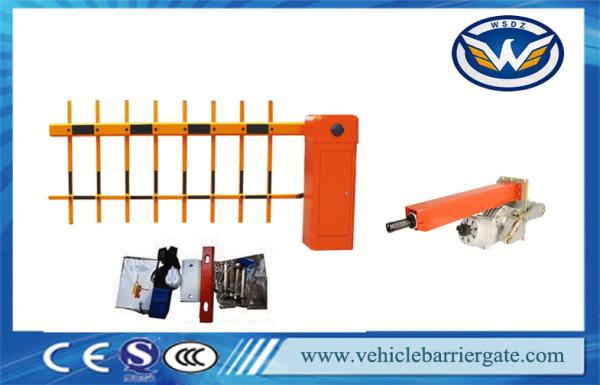

Car Park Barriers Aluminum Alloy 1-4.5 MetersThree Fence Arm
Backtrack
Car Park Barriers Quick Detail:
Car Park Barriers Name: Car Park Barriers gate
Car Park Barriers Speed:6 seconds
Car Park Barriers Feature: Straight boom
Car Park Barriers Rated Power:80W
Car Park Barriers Certificate: CE, ISO, SGS
Car Park Barriers Net Weight:48KG
Car Park Barriers Voltage: AC220V, AC110V
Car Park Barriers Model Selection and Differences
Car Park Barriers Model | Car Park Barriers Boom Shape | Car Park Barriers Max Boom Length | Car Park Barriers Speed |
WST1151 | Straight boom | 6m | 6 seconds |
WST1152 | Straight boom | 4.5m | 3 seconds |
WST11521 | 90-degree, Articulated boom | 5m | 6 seconds |
WST11522 | 90-degree, Articulated boom | 3m | 3 seconds |
WST11561 | 180-degree, Articulated boom | 5m | 6 seconds |
WST11562 | 180-degree, Articulated boom | 3m | 3 seconds |
| WST11581 | Two fence boom | 4.5m | 3s and 6s |
| WST11582 | Three fence boom | 4.5m | 3s and 6s |
Car Park Barriers Functions & Features
1) Car Park Barriers Manual release
2) Car Park Barriers Machine core with compression spring,
effectively avoids the accidents caused by spring breaking
3) Die-casting aluminum alloy motor, precision and good at thermal
radiating
4) Car Park Barriers Motor cooling fan, solving the problem of
heat-protection
5) Double safety limit switches (photocell electrical limit
switch/motor memory sensor)
6) Reversing on obstacle
7) Auto-closing
8) Support the INFRARER PHTOCELL for anti-bumping function
(optional)
9) Support the external and internal VEHICLE LOOP DETECTOR
(optional)
10) Traffic light interface
11) Wire control (switch signal)/ Remote control (418MHZ)
12) RS485 communication module (optional)
Car Park Barriers Specifications
Car Park Barriers Voltage | 220V(110V) |
Car Park Barriers Frequency | AC 50/60HZ |
Car Park Barriers Power | 80W |
Car Park Barriers arm Length | ≤ 6m |
Car Park Barriers Switching speed | 1s, 1.8s, 3s and 6s |
Car Park Barriers Working temperature | -40-110°C |
Car Park Barriers Protection class | IP44 |
Car Park Barriers Shell Material | 2mm cold rolled steel plate |
Car Park Barriers Shell thickness | 2.0mm |
Car Park Barriers Surface handle | Import paint |
Car Park Barriers Open method | Read card, remote control, manual button |
Car Park Barriers Remote control distance | 10-60m |
Car Park Barriers Weight of barrier | 50KG |
Car Park Barriers | 320 * 280 * 935 mm (L*W*H) |
With WONSUN, your job gets easier.
Because we don’t just create “good” products, that work pretty
well. Our thinking is beyond the short-term. We are conceiving,
designing, and creating high-tech solutions that are as advanced
and effective as they are reliable and long-lasting.
Because we want to provide tools and services that truly are
innovative, that will improve your performance and enhance your
skills; and that will make your business easier, increasing its
profitability.
Because our focus is on Quality with a capital Q.We just won’t
settle for less.
Communication with customers
1) Q: Connected power and pressed open/close button but the car
parking barrier gate no action.
A | Reason | Solution |
1 | Fuse blown | Check the fuse and power in the controller |
2 | The battery of the remote control powered off | Change a new one |
3 | External protection circuit break or at protecting status | Open the barrier door and click the OPEN/CLOSE button on the
control box |
4 | Same frequency interference | Check photocell and loop detector |
2) Q: Connected power and press the open/close button, the Car Park
Barriers gate will move but even when it is in the right position,
the motor still runs and does not stop.
A | Reason | Solution |
1 | Limit switch | Adjust the horizontal/vertical limit switch to the correct position |
2 | Main controller failure | Change a new one |
3) Q: The motor is running but the Car Park Barriers arm has no
action.
A | Reason | Solution |
1 | Barrier arm at 45° position where it is hard to move | Unlock the clutch and manually rotate the arm to a horizontal or
vertical position then try again |
2 | The tension of the balancing spring is not suitable | Adjust spring exactly |
3 | Low working voltage | Check the voltage and power |
4) Q: When opening/closing, Car Park Barriers gate arm cannot reach
the right position (90° vertical & 180° horizontal)?
A. | Reason | Solution |
1 | Length adjustment of connecting rod not correct | Open the barrier door and unlock the clutch to check when the arm
is at 90° vertical position if the master rod covers slave one; when the arm
is at 180° horizontal position if the master rod and slave one are in the
same straight line |
2 | Nuts on the limit switch loose | Tighten the nuts when the arm at 90° vertical and 180° horizontal position |
