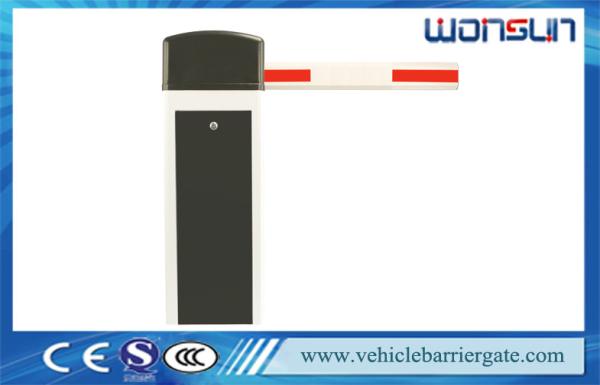

Double Limit Switch Traffic Barrier Gate with AC 220V / 110V 5
Million Operation Times
Quick Detail:
Name: Traffic Barrier Gate
Speed:6 seconds
Feature:Straight boom
Rated Power:80W
Certificate:CE, ISO, SGS
Net Weight:48KG
Voltage:AC220V, AC110V

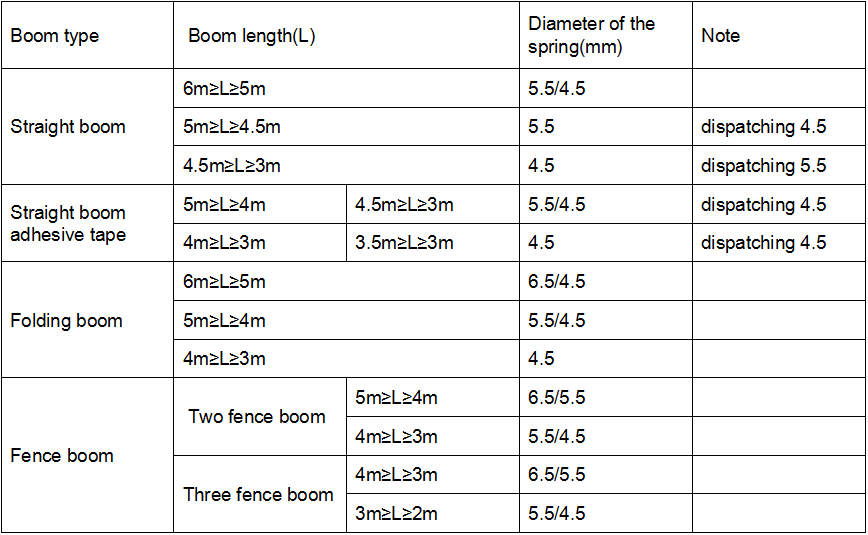

Model Selection and Differences
Functions & Features
1) Manual release
2) Machine core with compression spring, effectively avoids the
accidents caused by spring breaking
3) Die-casting aluminum alloy motor, precision and good at thermal
radiating
4) Motor cooling fan, solving the problem of heat-protection
5) Double safety limit switches (photocell electrical limit
switch/motor memory sensor)
6) Reversing on obstacle
7) Auto-closing
8) Support the INFRARER PHTOCELL for anti-bumping function
(optional)
9) Support the external and internal VEHICLE LOOP DETECTOR
(optional)
10) Traffic light interface
11) Wire control (switch signal)/ Remote control (418MHZ)
12) RS485 communication module (optional)
Specifications
Model | WST1211 |
Working Temperature | -40℃～+75℃ |
Voltage | 220V±10%, 110V±10%, 50/60HZ |
Rated power | 80W |
Relative humidity | ≤90% |
Remote control distance | ≥30m |
Net weight | 48kgs |
Speed | 1S,1.8S,3S, 6S |
Max boom length | 6 meters |
Motor Rotational speed | 1400rmp |
Protection Degree | IP44 |
With WONSUN, your job gets easier.
Because we don’t just create “good” products, that work pretty
well.Our thinking is beyond the short-term.We are conceiving,
designing and creating high-tech solutions that are as advanced and
effective as they are reliable and long-lasting.
Because we want to provide tools and services that truly are
innovative,that will improve your performance and enhance your
skills;and that will make your business easier, increasing its
profitability.
Because our focus is on Quality with a capital Q.We just won’t
settle for less.
Communication with customers
1. Motor works but there is no reaction on the arm
a. Please check whether the clutch device is locked or not.
2. There is too much vibrant when the boom is rising or falling.
a. Please check whether the shock absorption rubber is broken or
not, if yes, change a new one.
b. Please check whether the balance spring is overused and
distorted. If yes, change a new one.
b. Please check whether the balance spring is overused and
distorted.If yes, change a new one, or spin bottom adjust nut.
3. The boom could not rise up or fall down to the end.
a. When change a long boom to a short one, please readjust it.
b. The sensor does not plug well, please chek it.
c. The " Speed adjust switch" is wrong adjust, please readjust it.
4. The distance of the remote control decreases.
a. Check whether the charge capacity of the remote controller is
enough or not.
5. There is no reaction when pressing the remote controller
buttons.
a, Please check whether the power is supplied to the barrier gate
or not.
b. Please check whether the fuse is burnt out or not.
c. Please check whether the code both in the remote controller and
the control board are accordant or not.
6 There is no reaction on the motor when the user changes a control
board.
a. Please check the capacitance is correctly fixed or not.
b. Please check the sensor is right inserted or not.
