Traffic Barrier Gate with Double Limit Switch AC 220V / 110V
Quick Detail:
Name: Traffic Barrier Gate
Speed:6 seconds

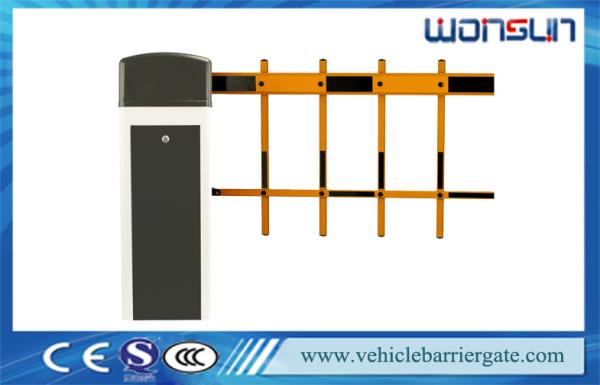

Arm type: Straight arm, folding arm, fence arm, optional
Arm length: Max 6 meter with aluminum alloy
Rating voltage: AC 220/110V±10%, 50/60HZ
Colors: Orange, yellow, blue, red, customized
Model Selection and Differences
Model | Boom Shape | Max Boom Length | Speed |
WST1211 | Straight boom | 6m | 6 seconds |
WST1212 | Straight boom | 4.5m | 3 seconds |
WST12121 | 90 degree, Articulated boom | 5m | 6 seconds |
WST12122 | 90 degree, Articulated boom | 3m | 3 seconds |
WST12161 | 180 degree, Articulated boom | 5m | 6 seconds |
WST12162 | 180 degree, Articulated boom | 3m | 3 seconds |
| WST12181 | Two Fence bom | 4.5m | 3s-6s |
| WST12182 | Three Fence boom | 4.5m | 3s-6s |
Functions & Features
1) Boom backtrack function: the boom will rise if it hits something
when falling
2) Infrared photocell dasign: for avoiding the crash when the boom
falling, so as to prevent the vehicles from being pressed.
3) Both external and internal loop detectors are supported.
4) Open,Close and Stop controlling interfaces
5) Traffic light signal connection device:red light for stop; green
light for pass.
6) Remote control and wire control for selection
7) Delay off the boom close function
Specifications
Model | WST1211 |
Working Temperature | -40℃～+75℃ |
Voltage | 220V±10%, 110V±10%, 50/60HZ |
Rated power | 80W |
Relative humidity | ≤90% |
Remote control distance | ≥30m |
Net weight | 48kgs |
Speed | 1S,1.8S,3S, 6S |
Max boom length | 6 meters |
Motor Rotational speed | 1400rmp |
Protection Degree | IP44 |
With WONSUN, your job gets easier.
Because we don’t just create “good” products, that work pretty
well.Our thinking is beyond the short-term.We are conceiving,
designing and creating high-tech solutions that are as advanced and
effective as they are reliable and long-lasting.
Because we want to provide tools and services that truly are
innovative,that will improve your performance and enhance your
skills;and that will make your business easier, increasing its
profitability.
Because our focus is on Quality with a capital Q.We just won’t
settle for less.
Communication with customers
a. Resistance to return device,if come cross resistance within pole drop , system will turn into
pole up position; if come cross some resistance within pole up
process, system will stop working ,ensure safety in further step.
b. New safety concept ,if pole up not at horizontal position when power on, Pole will drop
if press control button again.
c. Intelligent infrared ray device ,if the infrared cut off within pole drop position ,it will turn
into up procession (selectable)
d. Two type traffic control signal,system can connect to AC 110V/220V traffic indicator. Red light on
within pole up/ pole down or after pole down limit, green light
will on after pole up limit.
