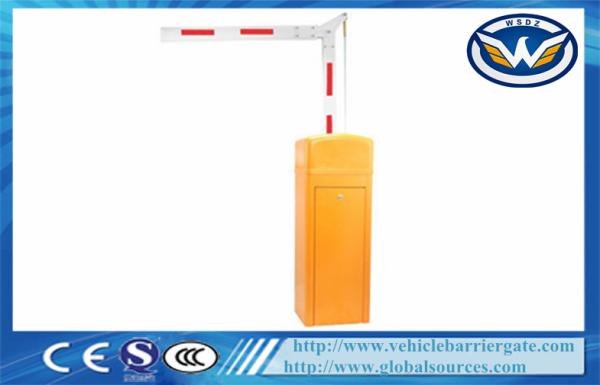

Automatic Parking Barrier Gate with 3 Meters , 4.5 Meters 90 Degree
Folding Arm
Quick Detail:
Name: Parking barrier gate
Speed:6 seconds
Feature:Straight boom
Rated Power:80W
Certificate:CE, ISO, SGS
Net Weight:48KG
Voltage:AC220V, AC110V
Model Selection and Differences
| Model | Boom Length (L) | Action time(second) | Boom height (meter) |
| Straight boom | 6m≥L≥5m | 6s | H=0.83 |
| 5L≤4m | 6s |
| 5m≥L≥3m | 3s |
| L≤4m | 1.5s |
| 90º Folding boom | L≤6m | 6s |
| 180º Folding boom | L≤6m | 6s |
| 2 Fence boom | 5m≥L≥3m | 6s | H=0.9 |
| 3 Fence boom | 4m≥L≥2m | 6s | H=1.5 |
Functions & Features
1) Manual release
2) Crank connecting rod movement structure, and stability
3) Three control buttons: for boom raising,falling and pausing
4) Boom backtrack function: the boom will rise if it hits something
when falling
5) Infrared photocell dasign: for avoiding the crash when the boom
falling, so as to prevent the vehicles from being pressed.
6) Both external and internal loop detectors are supported.
7) Auto-closing
8) Support the INFRARER PHTOCELL for anti-bumping function
(optional)
9) Support the external and internal VEHICLE LOOP DETECTOR
(optional)
10) Traffic light interface
11) Wire control (switch signal)/ Remote control (418MHZ)
12) RS485 communication module (optional)
Specifications
| Power supply | AC220V+-10% 50HZ/60HZ or AC110V+-10% 50HZ/60HZ |
| Net Weight | 46KG (exclude the boom) |
| External Dimensions | 340* 280*1000mm |
| Time for Up/Down | (1m-3m)1.5s/(4m-6m)6s |
| Working Environment | -20 to +55 celsius degree |
| Working Distance | ≤50m |
| Protection Class | IP44 |
| Max. boom length | 6m |
| Package | one set in one carton |
With WONSUN, your job gets easier.
Because we don’t just create “good” products, that work pretty
well.Our thinking is beyond the short-term.We are conceiving,
designing and creating high-tech solutions that are as advanced and
effective as they are reliable and long-lasting.
Because we want to provide tools and services that truly are
innovative,that will improve your performance and enhance your
skills;and that will make your business easier, increasing its
profitability.
Because our focus is on Quality with a capital Q.We just won’t
settle for less.
Communication with customers
1) Q: Connected power and press open/close button but parking
barrier gate no action?
A | Reason | Solution |
1 | Fuse blown | Check fuse and power in controller |
2 | Battery of remote control powered off | Change a new one |
3 | External protection circuit break or at protecting status | Open the barrier door and click OPEN/CLOSE button on control box |
4 | Same frequency interference | Check photocell and loop detector |
2) Q:Connected power and press open/close button, parking barrier
gate will move but even when it is at right position, the motor
still running and not stop?
A | Reason | Solution |
1 | Limit switch | Adjust the horizontal/vertical limit switch to correct position |
2 | Main controller failure | Change a new one |
3) Q: Motor running but parking barrier gate arm no action?
A | Reason | Solution |
1 | Barrier arm at 45° position where is hard to move | Unlock clutch and manually rotate arm to horizontal or vertical
position then try again |
2 | Tension of balancing spring not suitable | Adjust spring exactly |
3 | Low working voltage | Check the voltage and power |
4) Q: When opening/closing, parking barrier gate arm cannot reach
right position (90° vertical & 180° horizontal)?
A. | Reason | Solution |
1 | Length adjustment of connecting rod not correct | Open barrier door and unlock clutch to check when arm at 90° vertical position if the master rod covers slave one; when arm at
180° horizontal position if master rod and slave one are in the same
straight line |
2 | Nuts on the limit switch loose | Tighten the nuts when arm at 90° vertical and 180° horizontal position |
