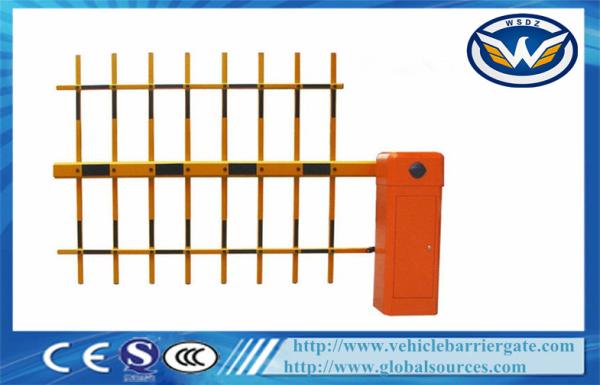

Automatic Boom Barrier Gate with 4 meters 3 Fence Boom for Train
station
Quick Detail:
Name: Automatic boom barrier
Colors: Orange, yellow, blue, red, customized
Operating temperatures: -25 to 75°C
Net weight: 48kg
Packing size: 1,020*365*467mm, weight 50kg
Usage: Highway, parking lot, community, hotel and factory
Voltage:AC220V, AC110V
Model Selection and Differences
Model | Boom Shape | Max Boom Length | Speed |
WST1151 | Straight boom | 6m | 6 seconds |
WST1152 | Straight boom | 4.5m | 3 seconds |
WST11521 | 90 degree, Articulated boom | 5m | 6 seconds |
WST11522 | 90 degree, Articulated boom | 3m | 3 seconds |
WST11561 | 180 degree, Articulated boom | 5m | 6 seconds |
WST11562 | 180 degree, Articulated boom | 3m | 3 seconds |
Applications:
Fast Barrier Gate adopts special machine core, swing away boom
holder and boom. This barrier gate runs in high speed but stably.
The running time is 1 second. It can be used for highway toll,
parking system, factory gate, and so on.
Functions & Features:
1. Manual release device to operate the barrier when power failure
2. Barrier motor with die-casting aluminum alloy is high-hermetic
and easy for heat dissipation
3. Motor cooling fan to avoid the over-heating possibility
4. Automatic reversing when the barrier boom meets the obstruction
5. Auto closing realization through menu setting on the control
panel
6. The barrier works well with infrared photocells, loop detectors,
card readers, ticket dispensers, manual switch (wire control), and
traffic light
7. RS485 Communication Module is compatible
Applications:
Automatic boom barrier adopts special machine core, swing away boom
holder and boom. This barrier gate runs in high speed but stably.
The running time is 1 second. It can be used for highway toll,
parking system, factory gate, and so on.
With WONSUN, your job gets easier.
Because we don’t just create “good” products, that work pretty
well.Our thinking is beyond the short-term.We are conceiving,
designing and creating high-tech solutions that are as advanced and
effective as they are reliable and long-lasting.
Because we want to provide tools and services that truly are
innovative,that will improve your performance and enhance your
skills;and that will make your business easier, increasing its
profitability.
Because our focus is on Quality with a capital Q.We just won’t
settle for less.
Communication with customers
1) Q: Connected power and press open/close button but car parking
barrier gate no action?
A | Reason | Solution |
1 | Fuse blown | Check fuse and power in controller |
2 | Battery of remote control powered off | Change a new one |
3 | External protection circuit break or at protecting status | Open the barrier door and click OPEN/CLOSE button on control box |
4 | Same frequency interference | Check photocell and loop detector |
2) Q:Connected power and press open/close button, car parking
barrier gate will move but even when it is at right position, the
motor still running and not stop?
A | Reason | Solution |
1 | Limit switch | Adjust the horizontal/vertical limit switch to correct position |
2 | Main controller failure | Change a new one |
3) Q: Motor running but car parking barrier gate arm no action?
A | Reason | Solution |
1 | Barrier arm at 45° position where is hard to move | Unlock clutch and manually rotate arm to horizontal or vertical
position then try again |
2 | Tension of balancing spring not suitable | Adjust spring exactly |
3 | Low working voltage | Check the voltage and power |
4) Q: When opening/closing, car parking barrier gate arm cannot
reach right position (90° vertical & 180° horizontal)?
A. | Reason | Solution |
1 | Length adjustment of connecting rod not correct | Open barrier door and unlock clutch to check when arm at 90° vertical position if the master rod covers slave one; when arm at
180° horizontal position if master rod and slave one are in the same
straight line |
2 | Nuts on the limit switch loose | Tighten the nuts when arm at 90° vertical and 180° horizontal position |
Our Car Park Barriers Packing List
| Packing list |
| Name | Specifications | Quantity | Remarks |
| Machine core | Good in working | 1 | Main part |
| Barrier arm | Straight, folding or fence arm | 1 | Optional |
| Boom press board | | 1 | Fixing the boom |
| Self-tapoing screw | ST4*16 | Fixing the boom |
| Self-tapoing screw | st3*10 | 4 | Fixing the boom |
| Supporting pole | | 1 | Fupporting the boom |
| Expanion bolt | M16*150 | 4 | Fixing the case |
| Hexagonal Inner Screw | M8*35 | 4 | fixing the case |
| Clutch key | | 1 | clutch device |
| Case Key | | 2 | for case and cover locking |
| Balance spring | According to length of barrier arm | 1 | for sapre usage |
| Remote emitter | less than 30m is available | 1 | For remote control |
| Remote conrol handles | less than 30m is available | 2 | For remote control |
| Instruction | in English | 1 | For reference |
| RS485 interface | | 1 | Optional |
| Disc | | 1 | Optional |
| Communication Mould | | 1 | Optional |
| Cover head | | 1 | 3 years without fading |
| Expanion nut | M8 | 4 | Fixing the supporting pole |
